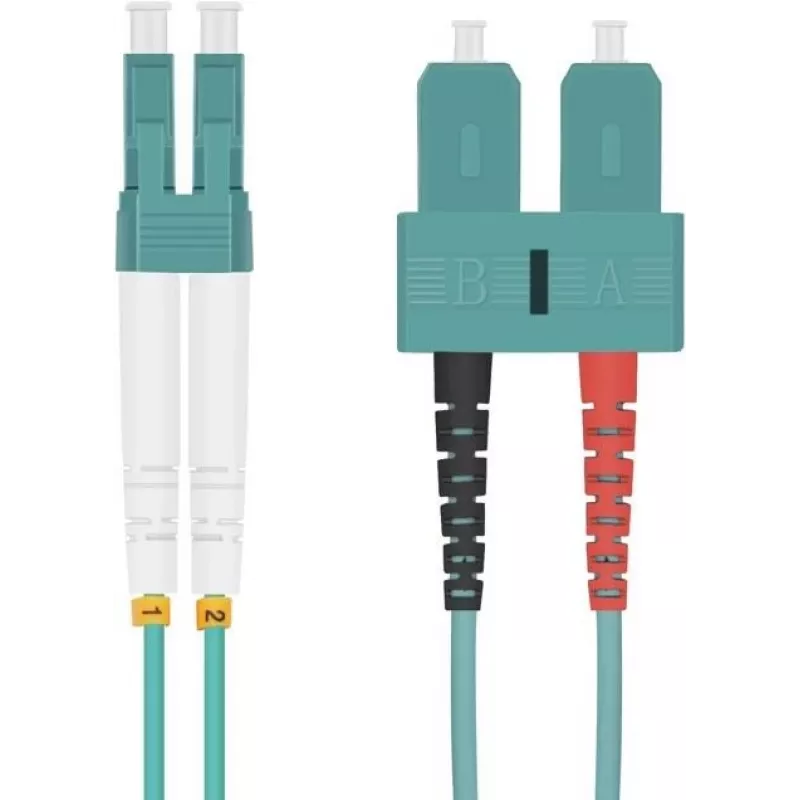

Cavo patch in fibra ottica helos 50/125µm OM3 LC a SC 15,0 m

helos fiber patch cable with 50/125 µm multimode OM3 fiber and LC connector on one end and SC connector on the other is a 15.0 m multimode fiber patch cord designed for high-speed optical links in local area networks, data centres and telecom equipment. The cable implements OM3 multimode fibre performance for short-reach multimode transmission and provides standardized LC and SC connector interfaces for interoperable connections between switches, transceivers and patch panels. Its 50/125 µm core/cladding geometry and OM3 grading support typical multimode applications such as 10 Gigabit Ethernet over structured cabling and short-distance interconnects.

Advantages

The patch cable offers precise connector quality with low insertion loss and stable return loss for reliable signal transmission. OM3 multimode fiber supports higher bandwidth-distance performance compared with lower-grade multimode types, enabling effective 10 Gb/s links and compatibility with a range of multimode transceivers. A length of 15.0 m provides flexible routing between equipment racks and patch panels without intermediate splicing. The combination of LC and SC connectors allows straightforward connection to devices with these common industry-standard ports.

Suitable for

• Interconnecting switches, servers and patch panels in data centres and server rooms
• Short-reach multimode links such as 10 Gigabit Ethernet within building or campus networks
• Connecting telecom equipment and multimode transceivers with LC and SC ports
• Temporary or permanent patching in structured cabling installations

Key specifications

• Fiber type: multimode OM3
• Core/cladding diameter: 50/125 µm
• Connector A: LC (single or duplex compatible with LC ports)
• Connector B: SC
• Cable length: 15.0 m
• Application: short-reach multimode optical links (LAN, data centre)
• Performance: OM3 multimode bandwidth suitable for 10 Gb/s and similar short-distance standards

How to use

Route the 15.0 m fiber patch cable carefully to avoid sharp bends and mechanical stress. Insert the LC connector into the LC port on the transceiver or device and the SC connector into the corresponding SC adapter or port on the patch panel or equipment. Verify that connectors are clean and free of dust before mating to prevent signal degradation; use appropriate fiber cleaning tools if necessary. After connection, secure excess cable length to cable management hardware to maintain bend radius and reduce strain on connectors.

Recommendations

For optimal performance, use this OM3 multimode patch cable within its designed link lengths for 10 Gb/s applications and maintain proper bend radius and connector cleanliness. When installing in high-density racks, route the cable through designated cable management to avoid tight bends; inspect and clean connectors periodically to ensure low insertion loss.
