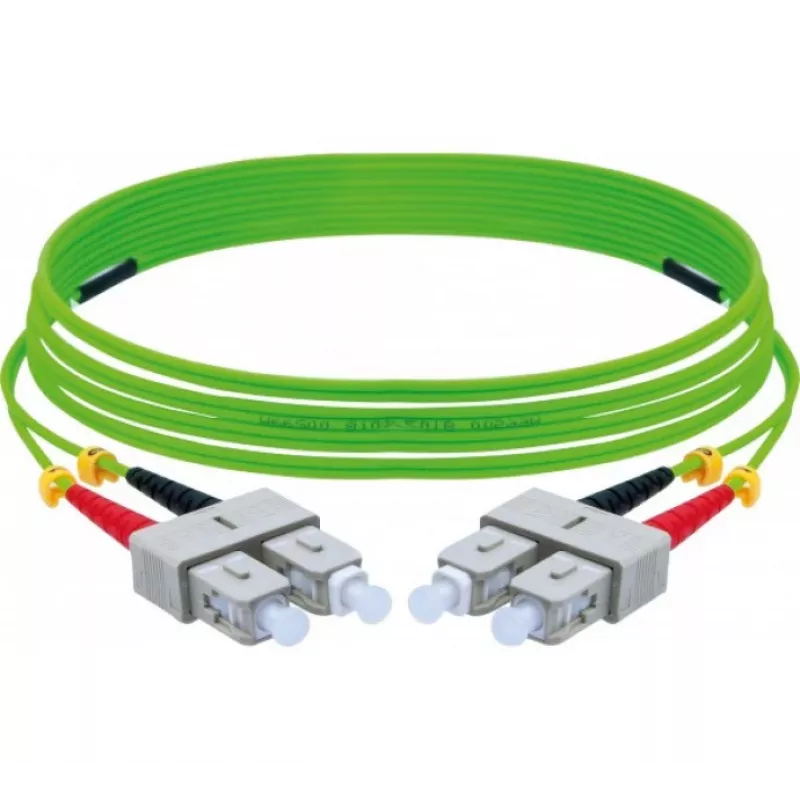

Cavo patch in fibra ottica OM5 EXERTIS CONNECT SC duplex su SC duplex, 50/125 µm, LSZH, verde lime, 3 m 392903

High-speed data centres and enterprise networks demand fibre cabling that can handle emerging multi-wavelength technologies without costly infrastructure changes. This EXERTIS CONNECT OM5 patch cable delivers wideband multimode performance, supporting short-wavelength division multiplexing (SWDM) and legacy multimode applications over a single lime-green jacket.

Who is it for

Network engineers and data centre managers upgrading to 40G/100G speeds who need a future-ready, backward-compatible fibre link. Ideal for patching between switches, servers, and storage in high-density environments where space and reliability are critical.

Main features

• OM5 wideband multimode fibre (WBMMF) with 50/125 µm core/cladding supports SWDM4 wavelengths from 850 nm to 953 nm.
• SC duplex to SC duplex connectors with UPC polish ensure low insertion loss and high return loss for stable connections.
• Lime green LSZH jacket is halogen-free, low-smoke, and flame-retardant for safety in enclosed spaces.
• 3.0 m length provides flexibility for rack-to-rack or intra-rack patching without excess slack.
• Effective modal bandwidth of 4700 MHz·km at 850 nm enables 40GBASE-SR4 and 100GBASE-SR4 links up to 150 m.

Specifications

• Cable type: Fibre optic patch cable, duplex
• Fibre type: Multimode OM5 (50/125 µm)
• Connector 1: SC duplex, UPC polish
• Connector 2: SC duplex, UPC polish
• Cable length: 3.0 m
• Jacket material: LSZH
• Jacket colour: Lime green
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to +70°C
• Cable diameter: 2.0 mm

Tips

For best performance, keep bend radius above 10 times the cable diameter and avoid sharp twists near connectors. Use OM5 patch cords with OM5 trunks to maintain system bandwidth; mixing with OM3/OM4 is possible but may limit SWDM reach.
