Cavo patch Kabelmeister Cat.7 S/FTP, RJ45, TPE, senza alogeni, arancione, 5 m

High-speed networks demand cables that can keep up without interference or signal loss. This Cat.7 patch cable from Kabelmeister delivers reliable 10 Gigabit Ethernet performance with superior shielding, making it ideal for demanding LAN connections in offices, data centers, and home networks.

Who is it for

Network administrators, IT professionals, and tech-savvy home users who need a robust, future-proof cable for high-bandwidth applications like 4K streaming, online gaming, large file transfers, and server connections. Its halogen-free, highly flexible TPE jacket also suits environments where safety and easy routing matter.

Main features

• Cat.7 raw cable with S/FTP shielding: individual pairs wrapped in metal foil plus an overall braided shield for maximum protection against crosstalk and EMI.
• Supports data rates up to 10 Gbps and bandwidth up to 600 MHz, ensuring stable performance for 10GBASE-T Ethernet.
• High-quality oxygen-free copper conductors (AWG 26/7 stranded) for excellent conductivity and flexibility.

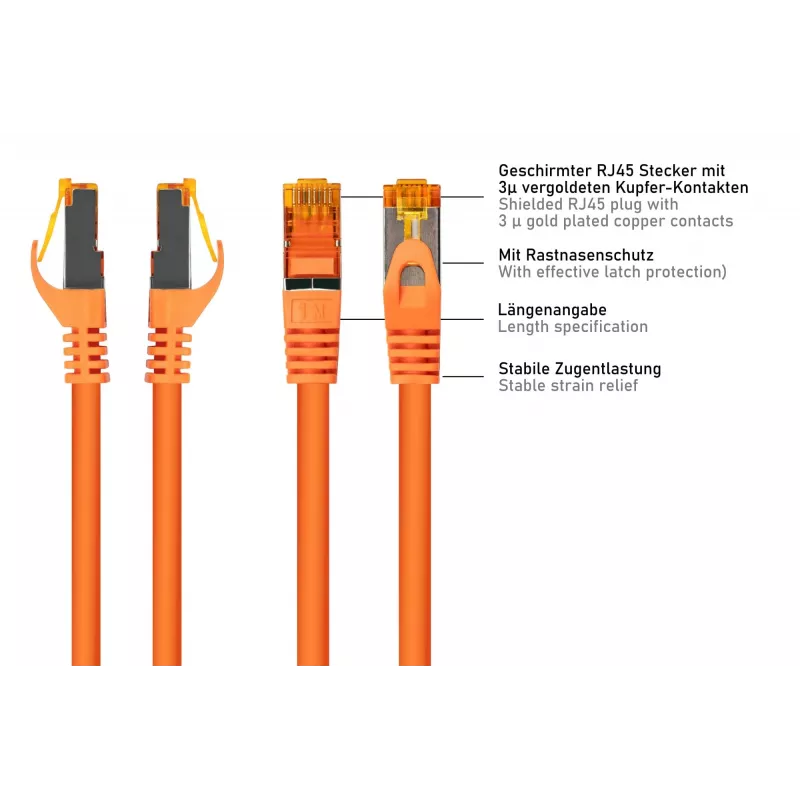

• Gold-plated RJ45 connectors (50µ") with snagless molded boots for secure connections and durability.
• Halogen-free TPE jacket: highly flexible, LSZH-rated, and environmentally friendly, producing low smoke and no toxic halogens in case of fire.
• Compliant with TIA/EIA 568B wiring standard, RoHS, and CE.

Specifications

• Cable type: Patch cable
• Cable category: Cat.7
• Shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Jacket material: TPE (thermoplastic elastomer)
• Jacket properties: Highly flexible, halogen-free (LSZH)
• Colour: Orange
• Length: 5 m
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 600 MHz
• Conductor material: Oxygen-free copper (OFC)
• Conductor gauge: AWG 26/7 (stranded)
• Wiring standard: TIA/EIA 568B
• Connector plating: Gold-plated contacts (50µ")
• Boot type: Snagless, molded
• Application: LAN, network, Ethernet
• Compliance: RoHS, CE
• Operating temperature: -20°C to 60°C

Tips

For optimal performance, avoid sharp bends and keep the cable away from power lines. The snagless boot protects the locking tab during installation, and the halogen-free jacket makes it safe for use in enclosed spaces.
