Cavo prolunga HDMI MicroConnect HDM19190.5FV1.4 0,5m

Cavo prolunga HDMI MicroConnect HDM19190.5FV1.4 0,5m
Cavo prolunga HDMI MicroConnect HDM19190.5FV1.4 0,5m
11,15 €
PDF
PDF
Stock 20 Codice 1181260 Modello HDM19190.5FV1.4 Garanzia 2 anni

Spedizioni e resi

Consegna stimata lunedì 7 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

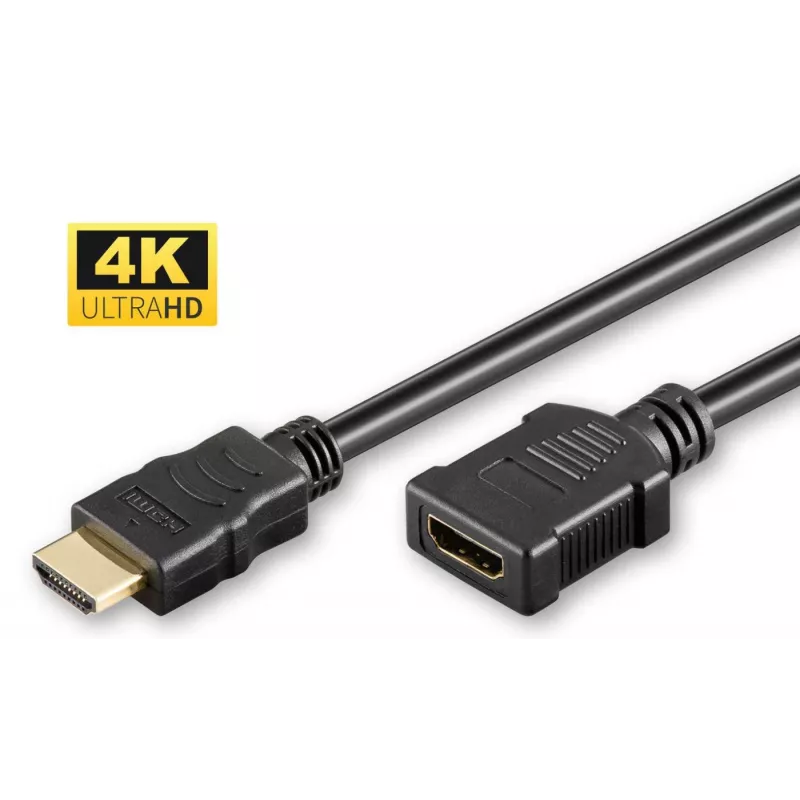

The MicroConnect HDM19190.5FV1.4 HDMI Extension Cable (0.5 m) is a high-speed HDMI 1.4 extension with HDMI Type A male-to-female connectors and gold-plated contacts. It supports data transfer rates up to 10.2 Gbps and resolutions up to 3840 x 2160 (4K) at 30 Hz, and includes support for HDCP 2.2, CEC, ARC and 3D. The compact 0.5 m length and black finish make it suitable for extending HDMI connections in tight installations without significant signal degradation.

Advantages

This HDMI extension cable maintains high-speed digital audio and video transmission thanks to HDMI 1.4 compliance and a 10.2 Gbps bandwidth. Gold-plated contacts improve contact reliability and corrosion resistance. The male-to-female configuration simplifies extending existing HDMI cables or making short distance adjustments without replacing the original cable.

Suitable for

  • Extending HDMI connections between devices and displays over short distances
  • Connecting TVs, monitors or projectors to set-top boxes, media players and laptops
  • Installations where a short extension is needed to relieve strain on existing HDMI cables or connectors

Key specifications

  • Cable length: 0.5 m
  • Connectors: HDMI Type A male to HDMI Type A female
  • HDMI version: 1.4
  • Maximum resolution: 3840 x 2160 @ 30 Hz
  • Data transfer rate: up to 10.2 Gbps
  • Features: HDCP 2.2, CEC, ARC, 3D
  • Colour: Black

How to use

Connect the male HDMI Type A end of the extension cable to the HDMI output of the source device or to an existing HDMI cable, and plug the HDMI Type A female end into the display device or into the HDMI cable you wish to extend. Ensure connectors are fully inserted and avoid sharp bends near the cable ends. No additional drivers or power are required.

Recommendations

Use this 0.5 m extension for short-distance adjustments and to reduce connector strain. For distances longer than 0.5 m or for higher refresh rates and resolutions above 4K@30Hz, consider cables or extenders that support newer HDMI versions (e.g., HDMI 2.0 or 2.1).
Punti salienti
  • 4K@30Hz (3840*2160p), including 3D video
  • Gold-Plated Connectors
  • Transfer rate : 10.2 Gbit/s
  • HDCP 2.2
  • Support ARC (Audio Return Channel)
  • Support HDR (High Dynamic Range)
  • Support CEC (Consumer Electronics Control)
  • Integrated Ethernet channel which saves additional network or audio cables
  • 0.5 m
  • HDMI Type A (Standard) Straight Male
  • HDMI Type A (Standard) Straight Female
  • HDMI version: 1.4
  • 10.2 Gbit/s
  • 3D Audio Return Channel (ARC) HDMI Ethernet channel
  • Black

Specifiche

Specifiche
3D
Sì
Altezza confezione
20 mm
Canale di ritorno audio (ARC)
Sì
Canale Ethernet HDMI
Sì
Certificati di conformità
RoHS
Codice Sistema Armonizzato (HS)
84733080
Colore del prodotto
Nero
Connettore 1
HDMI tipo A (standard)
Connettore 1 maschio/femmina
Maschio
Connettore 2
HDMI tipo A (standard)
Connettore 2 maschio/femmina
Femmina
Diametro del cavo
6 mm
Formato connettore 1
Dritto
Formato connettore 2
Dritto
HDCP
Sì
High Dynamic Range (HDR) supportato
Sì
Larghezza confezione
198 mm
Lunghezza del cavo
0.5 m
Materiale del cavo
Rame
Peso
10 g
Peso confezione
46 g
Placcatura dei contatti del connettore
Oro
Profondità confezione
177 mm
Quantità
1
Quantità per confezione
1 pc(s)
Risoluzione massima
3840 x 2160 pixel
Sezione del conduttore (AWG)
30
Velocità di trasferimento dati
10,2 Gbit/s
Versione HDCP
1.4/2.2
Versione HDMI
1.4
