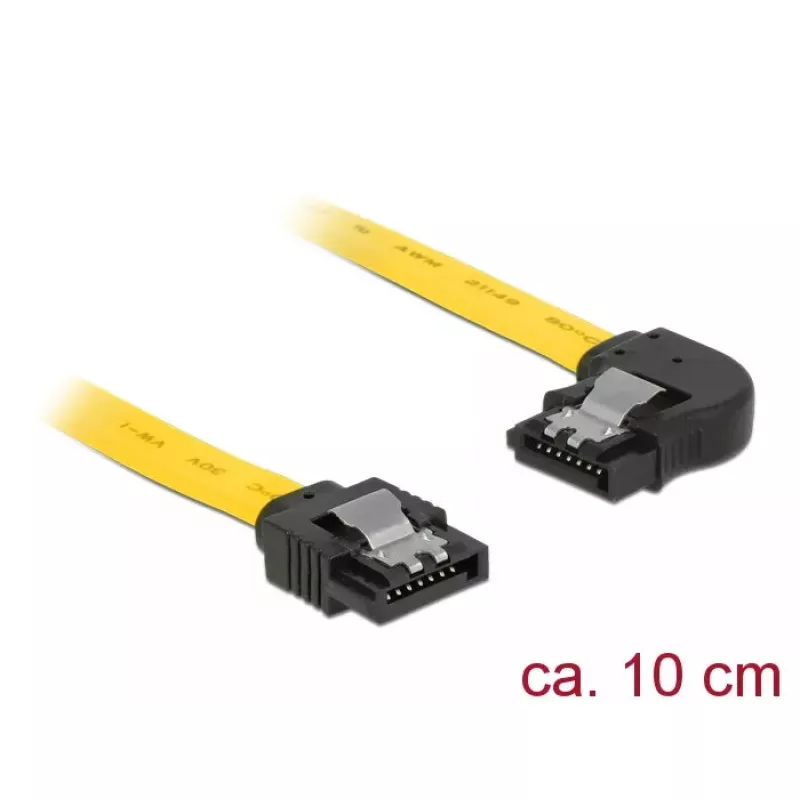

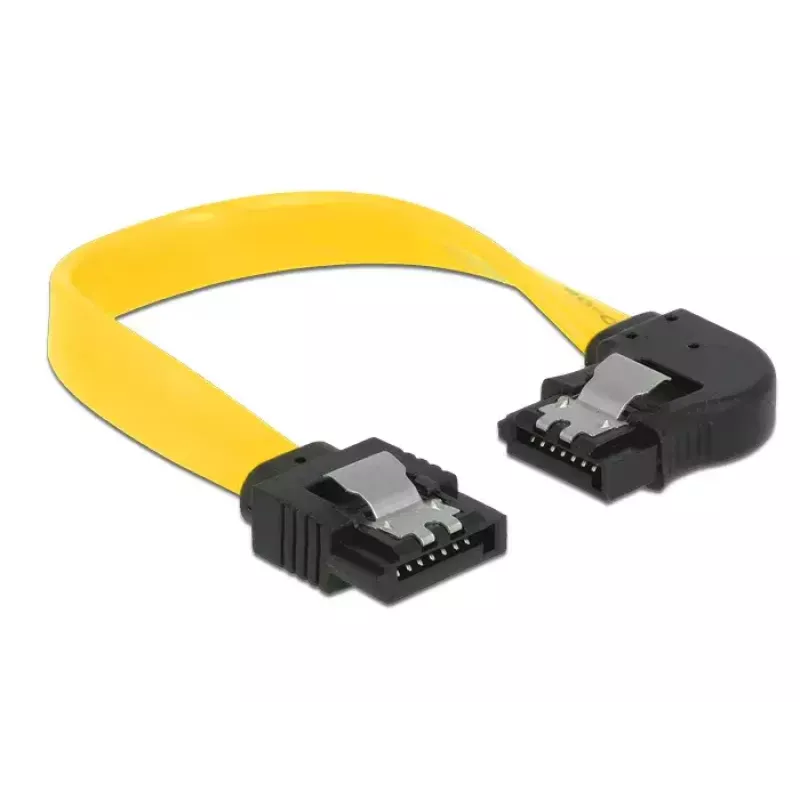

Cavo SATA DeLOCK 83957 0,1 m 7 poli nero giallo

The DeLOCK 83957 SATA cable is a 0.1 m internal data cable with two SATA 7-pin connectors. It is designed for connecting SATA devices such as HDDs, SSDs, controller cards or flash storage inside a PC. The cable supports the SATA III standard with transfer rates up to 6 Gb/s and is backwards compatible with earlier SATA versions, operating at the respective lower speeds when used with older devices. The cable is compact for use in tight spaces and features a black and yellow colour scheme. When plugged into a hard disk drive, the cable is oriented to the left and metal clips on the connectors secure the connection.

Advantages

This SATA cable provides support for up to 6 Gb/s data transfer according to the latest SATA standard and maintains backwards compatibility with previous SATA generations. Its short 0.1 m length is suitable for confined internal layouts, reducing cable clutter. Robust metal clips on both SATA 7-pin connectors ensure a firm, audible click and stable connection once attached.

Suitable for

• Connecting 2.5" or 3.5" HDDs and SSDs to a motherboard or controller card
• Internal connections in compact PC cases or systems with limited cable space
• Replacing or adding short SATA interconnects between storage devices and host controllers

Key specifications

• Cable length: 0.1 m
• Connectors: SATA 7-pin to SATA 7-pin
• Data transfer rate: up to 6 Gb/s (SATA III), backwards compatible
• Product colour: Black, Yellow

How to use

Align each SATA 7-pin connector with the corresponding SATA port on the motherboard, controller card or storage device and press until the metal clip clicks into place. Ensure the cable is routed to avoid strain on the connector; when connecting to a HDD the cable will be oriented to the left. To remove, press the clip and gently pull the connector straight out.

Recommendations

Use this short 0.1 m SATA cable for internal connections where minimal slack is required; avoid bending the cable sharply near the connectors and keep it away from moving parts or sources of heat. For optimal performance, pair with devices supporting SATA III to achieve the full 6 Gb/s transfer rate.
