Connettore coassiale DeLOCK 65892

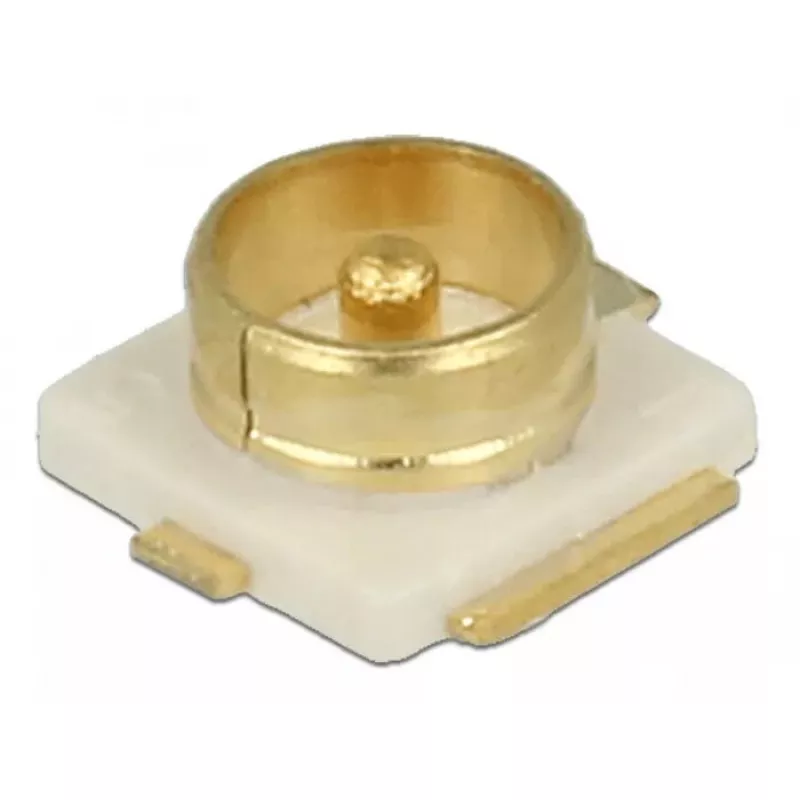

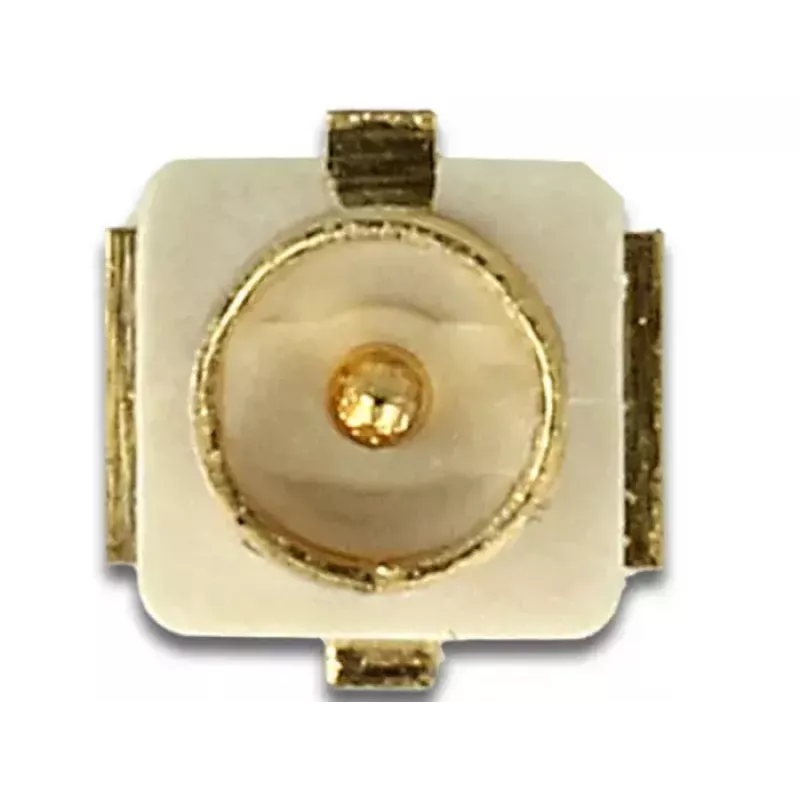

The DeLOCK 65892 coaxial connector provides a compact solution for connecting coaxial cables where a 60 V operating voltage is required. Supplied in packs of 10, each connector measures approximately 2.5 mm in width, 3 mm in depth and 1.5 mm in height. Designed for straightforward handling and installation, this connector is suitable for applications that call for small-form coaxial terminations. The product is manufactured in China and intended for use as a cable interface and gender adapter component in electronic assemblies and cable runs.

Advantages

The DeLOCK 65892 offers a compact footprint and standardized coaxial connection suitable for low-voltage installations up to 60 V. Packaging in sets of ten simplifies procurement for batch projects and repairs. Its small dimensions make it useful in tight spaces where larger connectors would not fit, while the simple form factor supports easy manual handling and soldering or mechanical assembly depending on the installation method.

Suitable for

• Cable assemblies and harness repairs in low-voltage electronic devices
• Compact or space-constrained connection points inside enclosures
• Prototyping and small production runs requiring multiple identical connectors
• Replacement of worn or damaged coaxial terminations in consumer electronics

Key specifications

• Operating voltage: 60 V
• Quantity per pack: 10 connectors
• Width: 2.5 mm
• Depth: 3 mm
• Height: 1.5 mm
• Manufacturer origin: China

How to use

Select an appropriate cable and prepare the cable end according to the connector type and mounting method you plan to use. Align the connector with the cable or PCB pad, then secure it by soldering or mechanical attachment as required by your design. Verify the connection continuity and insulation before applying the rated operating voltage. When installing multiple connectors from the pack, work in a clean, static-safe environment to avoid contamination and damage.

Recommendations

Use the DeLOCK 65892 only within its specified operating voltage of 60 V and in applications compatible with its small dimensions. Confirm compatibility with the cable diameter and mounting method prior to installation. Store unused connectors in a dry, dust-free environment and handle them with appropriate ESD precautions when working with sensitive electronics.
