Connettore femmina Speakon Kindermann 7444000413 — 1 via alluminio, 50×50 mm, profondità 40 mm

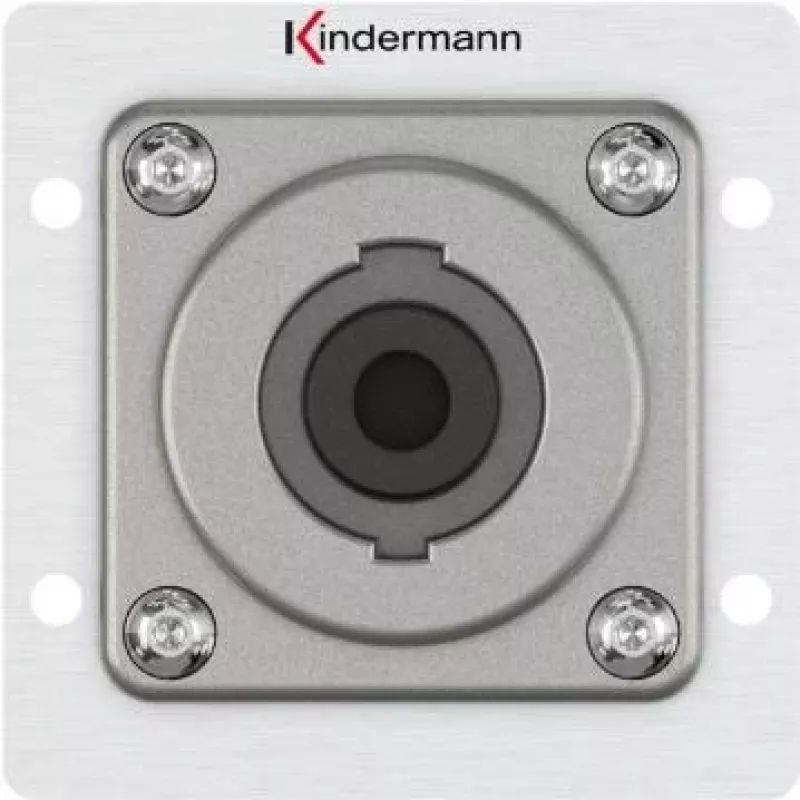

Kindermann 7444000413 is a compact Speakon socket outlet designed for professional audio installations. The unit accepts one Speakon module and is housed in an aluminium plate with an aluminium-coloured finish. With a front dimension of 50×50 mm and a minimum installation depth of 40 mm, this 1-module solution is suitable for wall or panel mounting where a small metal connection point and robust material are required.

Advantages

The aluminium construction provides mechanical strength and corrosion resistance while maintaining a low profile. The 50×50 mm footprint matches common 1-module cutouts, simplifying retrofit and new installations. The metal finish offers EMI shielding benefits compared with plastic covers and gives a uniform appearance when combined with other aluminium modules.

Suitable for

Key specifications

How to use

Prepare a 50×50 mm cutout in the mounting surface and ensure at least 40 mm of clear depth behind the plate. Insert the Speakon module into the aluminium plate and secure it according to the module manufacturer’s instructions. Make signal connections to the module using the appropriate soldering terminals for the 4-pin Speakon connector, observing correct polarity and cable preparation for audio applications. Fasten the plate to the wall or panel using compatible screws, taking care not to overtighten and deform the plate.

Recommendations

Use the aluminium plate in environments where a metal front offers improved durability and electromagnetic screening. Verify that the Speakon module you select is compatible with solder-type connections and the full-size plate format. For permanent installations, use strain relief on speaker cables and follow local electrical and audio installation standards.
