Corning LC/LC OM4 50/125 µm Cavo patch in fibra ottica multimodale, 5 m, viola F050502Q2Z20005M-VI

With a modal bandwidth of 4700 MHz·km at 850 nm, this OM4 patch cable is built for high-speed multimode links up to 100 Gbps in data centers and enterprise networks. The 5-meter length and LC duplex connectors make it a direct fit for patching between switches, servers, and patch panels.

Overview

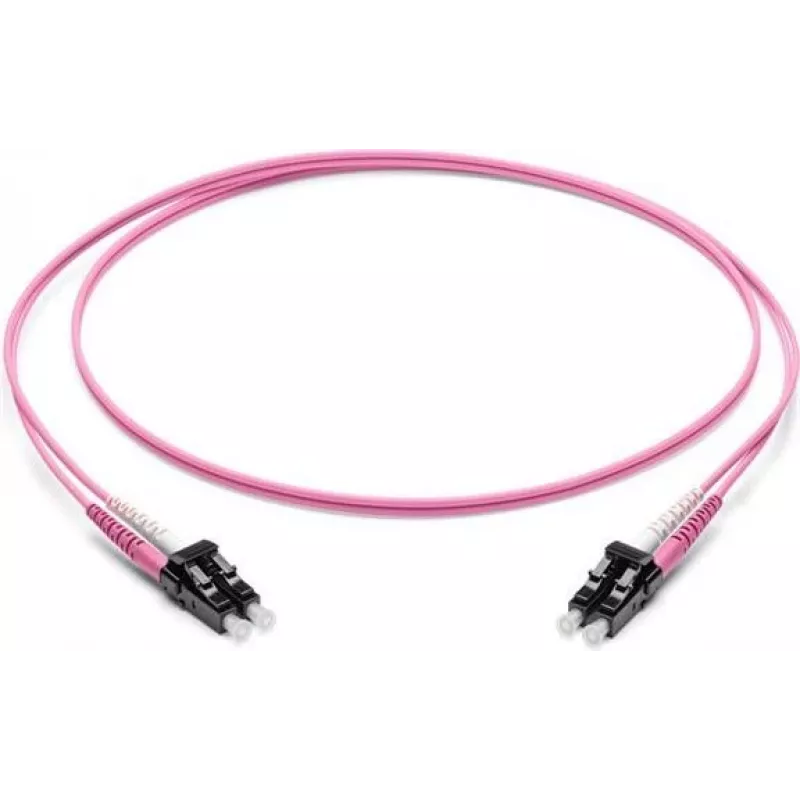

The Corning F050502Q2Z20005M-VI is a 5-meter OM4 multimode fiber optic patch cable with LC duplex connectors on both ends. The 50/125 µm core/cladding diameter supports laser-optimized transmission, while the violet LSZH jacket provides low smoke and halogen-free fire safety. Insertion loss is ≤ 0.3 dB and return loss ≥ 30 dB, ensuring reliable signal integrity.

What stands out

• OM4 multimode fiber supports 40/100 Gbps Ethernet up to 150 m at 850 nm
• LC duplex connectors with ceramic ferrules for precise alignment
• LSZH jacket emits low smoke and zero halogen in case of fire
• Violet jacket color for easy OM4 identification
• Operating temperature from -20°C to 60°C

Technical details

• Fiber type: Multimode OM4, 50/125 µm
• Connectors: LC duplex to LC duplex
• Length: 5 m
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Modal bandwidth (EMB): 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Jacket material: LSZH
• Jacket color: Violet
• Compliance: RoHS, REACH

Our verdict

A reliable OM4 patch cable for high-density fiber installations, offering low loss and a flame-retardant jacket. Ideal for data centers and backbone connections.
