CradlePoint power injector - 90 Watt - per adattatore wideband W-Series 5G W1850-5GB

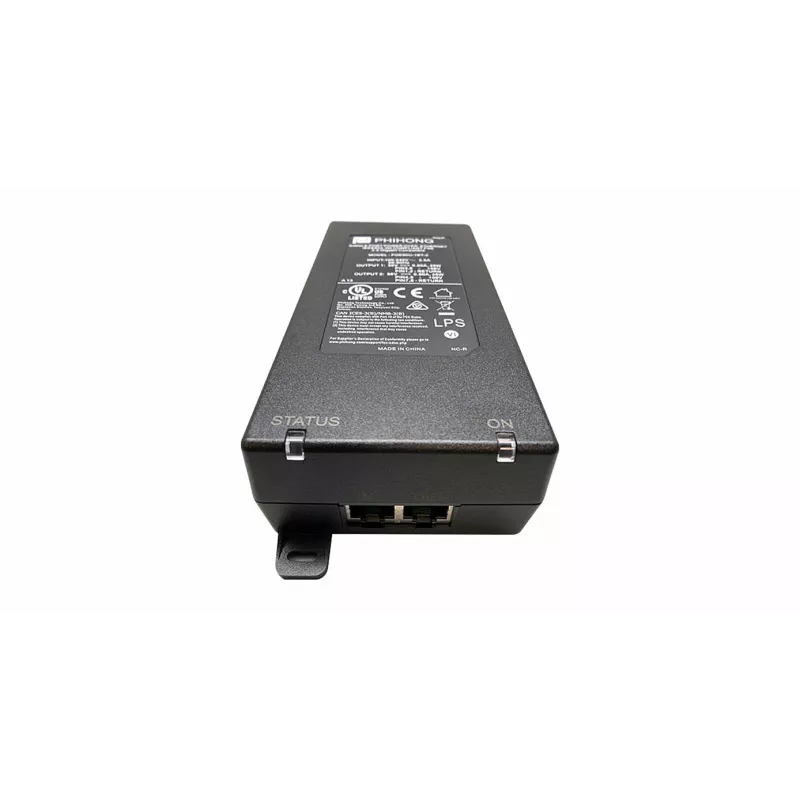

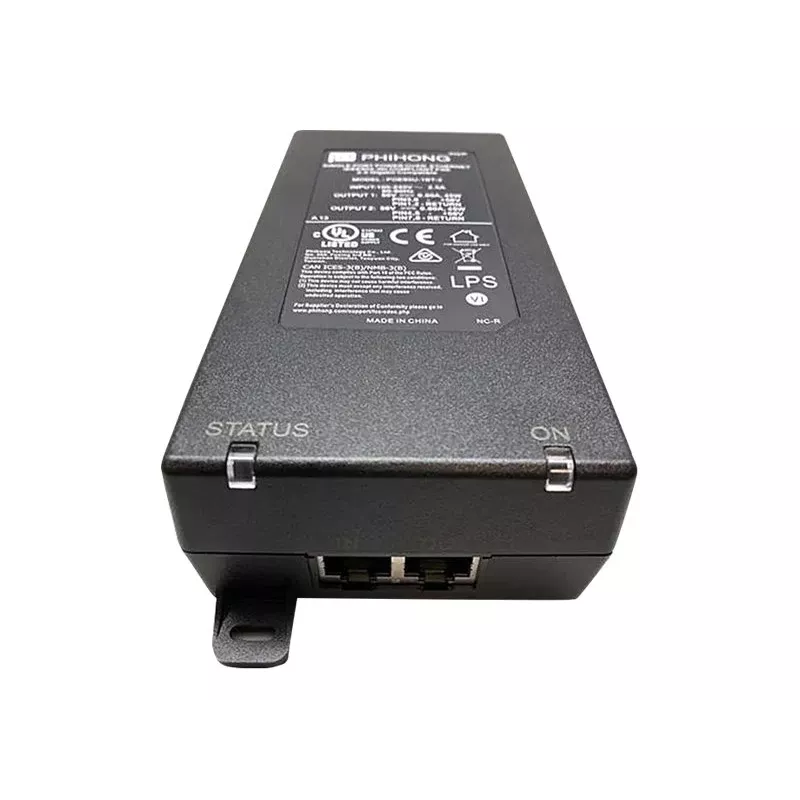

The CradlePoint Power Injector is a high-performance Power over Ethernet (PoE) injector designed to power CradlePoint W-Series 5G Wideband Adapters, including the W1850-5GB, W2000-5GB, and W4000-5GB. With 90 watts of power output and support for IEEE 802.3bt Type 4 (PoE++) standard, it delivers reliable and efficient power to your networking equipment. This injector supports data transfer rates up to 10 Gigabit Ethernet, ensuring high-speed connectivity for demanding applications. It features two RJ-45 ports: one for data input and one for combined data and power output. The device is suitable for desktop or wall-mountable installation and includes LED indicators for power and PoE status. Operating in a wide temperature range from -20°C to 50°C, it is built for reliability in various environments.

Advantages

High power output of 90 watts ensures compatibility with power-hungry devices. Supports the latest PoE++ standard for maximum flexibility. Gigabit Ethernet speeds up to 10 GbE provide fast data transfer. Compact design allows for easy placement on a desk or wall mounting. Durable construction with wide operating temperature range ensures long-term performance.

Suitable for

• Powering CradlePoint W-Series 5G Wideband Adapters (W1850-5GB, W2000-5GB, W4000-5GB)
• Enterprise and industrial networking environments requiring reliable PoE
• Deployments where high-speed data and power over a single cable are needed

Key specifications

• Power Output: 90 Watts
• PoE Standard: IEEE 802.3bt Type 4 (PoE++)
• Input Voltage: 100-240V AC, 50/60 Hz
• Output Voltage: 54V DC, 1.67 A
• Data Ports: 2 x RJ-45 (1x Data In, 1x Data & Power Out)
• Data Transfer Rate: Up to 10 Gigabit Ethernet
• Mounting: Desktop, Wall-mountable
• LED Indicators: Power, PoE Status
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Operating Humidity: 5% to 95% non-condensing

Recommendations

For optimal performance, use this power injector with CradlePoint W-Series 5G Wideband Adapters. Ensure proper ventilation and avoid exposure to extreme temperatures or moisture. Wall mounting is recommended for permanent installations.
