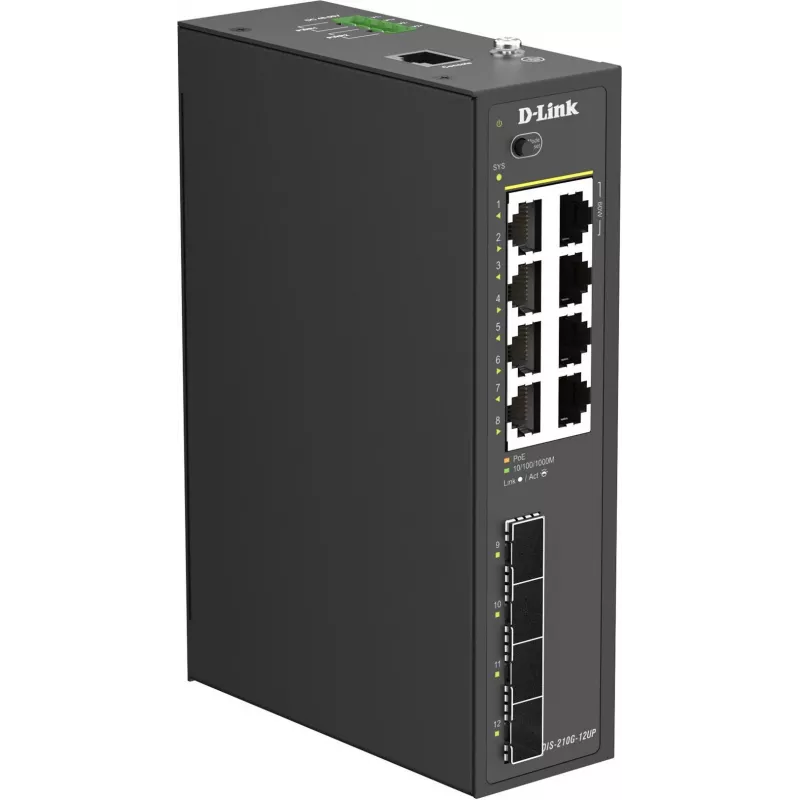

D-Link DIS-210G-12UP switch industriale smart managed, 12 porte Gigabit, 8 PoE+, 240W, guida DIN/a parete

The D-Link DIS-210G-12UP is a high-performance industrial smart managed switch designed for harsh environments. With 8 PoE+ ports and a total PoE budget of 240W, it powers IP cameras, wireless access points, and other PoE devices. The switch features 4 combo SFP slots for fiber uplinks, supporting redundant 12-58V DC power input and fanless operation for silent, reliable performance in extreme temperatures from -40 to 75°C.

Advantages

Robust industrial design with IP30 metal housing, fanless for silent operation, and wide temperature tolerance. Advanced Layer 2 management features include VLAN, QoS, G.8032 ERPS ring redundancy, and comprehensive security. Redundant power inputs ensure high availability.

Suitable for

• Industrial automation and factory floors
• Outdoor surveillance and smart city deployments
• Transportation and railway applications (EN 50121-4 compliant)
• Oil and gas, mining, and other harsh environments

Key specifications

• 8 x 10/100/1000BASE-T PoE+ (IEEE 802.3af/at) + 4 x 10/100/1000BASE-T + 4 x 100/1000BASE-X SFP (combo)
• PoE budget: 240W
• Switching capacity: 24 Gbps
• Forwarding rate: 17.86 Mpps
• MAC address table: 8K entries
• Jumbo frame support: up to 9KB
• Management: Web GUI, CLI, SNMP, Telnet, SSH, Dual Image/Configuration
• VLAN: Port-based, Tag-based, GVRP, Voice VLAN, Surveillance VLAN
• QoS: 8 priority queues, CoS/DSCP-based
• Redundancy: G.8032 ERPS, STP/RSTP/MSTP, LACP
• Security: Port Security, IP-MAC-Port Binding, ACLs, DHCP Snooping
• Power input: Redundant 12-58V DC
• Operating temperature: -40 to 75°C
• Fanless design
• MTBF: >1,000,000 hours
• Certifications: CE, FCC, VCCI, C-Tick, UL, IEC 61000-4, NEMA TS2, EN 50121-4, IP30

Recommendations

Ideal for industrial networks requiring reliable PoE+ power and advanced management. The DIS-210G-12UP delivers robust performance and durability in extreme conditions.
