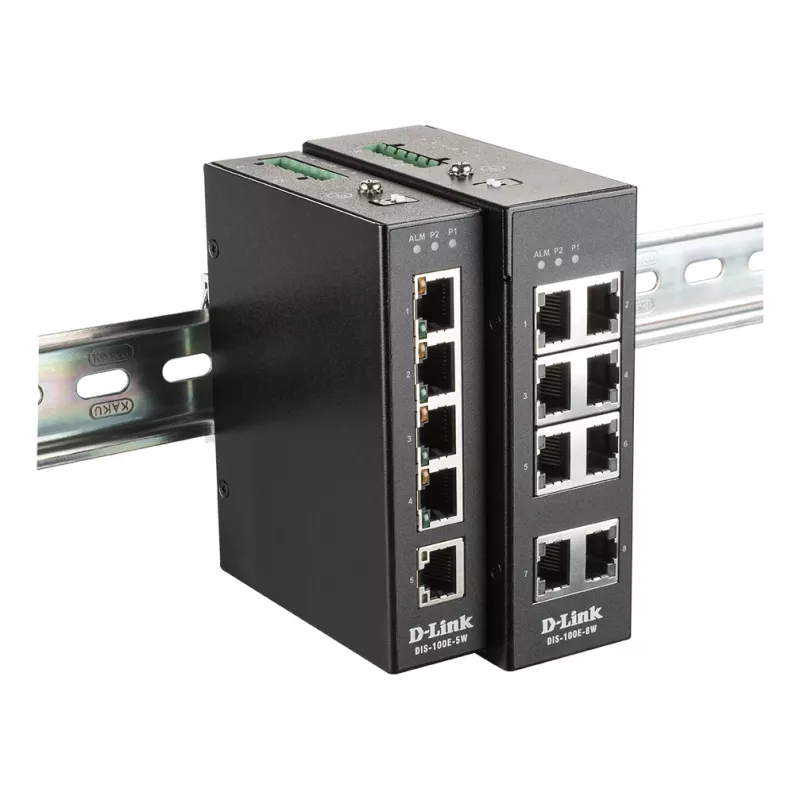

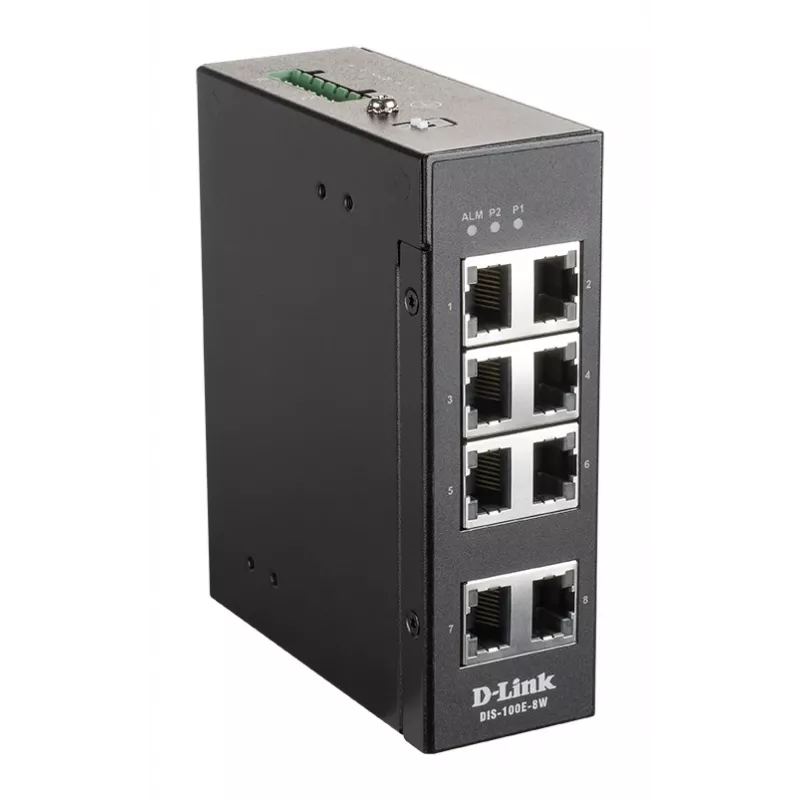

D-Link switch industriale non gestito 8 porte con 8 x 10/100 BaseT(X) porte

The D-Link DIS-100E-8W is an unmanaged Fast Ethernet switch with 8 RJ-45 10/100BaseT(X) ports, designed for straightforward network expansion in industrial and outdoor environments. It supports full-duplex communication, a MAC address table of 1000 entries, and complies with IEEE 802.3x flow control. The switch accepts a wide DC input range (12–58 V), is wall-mountable and supports DIN-rail mounting for rapid installation.

Advantages

Plug-and-play operation provides immediate network connectivity without configuration. The rugged housing and fanless design reduce maintenance and help ensure reliable operation in harsh conditions. Certified for vibration, shock, free-fall and electromagnetic compatibility, the unit is suitable for demanding deployments. It operates over a wide temperature range (–40 °C to +75 °C) and supports cold start at –40 °C. D-Link supplies a 5-year warranty for the DIS series.

Suitable for

• Industrial automation networks
• Smart city surveillance and outdoor camera networks
• Outdoor wireless backhaul and remote site connectivity
• Basic office or branch network expansion requiring unmanaged switching

Key specifications

• Model: D-Link DIS-100E-8W (MPN: DIS-100E-8W, EAN: 0790069441288)
• Ports: 8 x 10/100BaseT(X) RJ-45
• Switch type: Unmanaged L2 Fast Ethernet
• MAC address table: 1000 entries
• Standards: IEEE 802.3x
• Input voltage: DC 12–58 V
• Operating temperature: –40 °C to +75 °C (cold start at –40 °C)
• Mounting: Wall mount and DIN-rail clip
• Weight: 0.405 kg
• Colour: Black

How to use

Install the DIS-100E-8W on a wall or snap it onto a standard DIN rail using the built-in clip. Connect the DC power source within the specified 12–58 V range, then plug Ethernet cables into the required RJ-45 ports. The switch is unmanaged, so no configuration is required; it will forward Ethernet frames automatically and negotiate 10/100 Mbps and duplex settings with connected devices according to IEEE 802.3x.

Recommendations

For reliable operation in industrial or outdoor environments, use a properly rated DC power supply within 12–58 V, protect exposed ports and cabling from moisture and physical damage, and mount the unit where ventilation around the rugged housing is not obstructed to allow passive heat dissipation.
