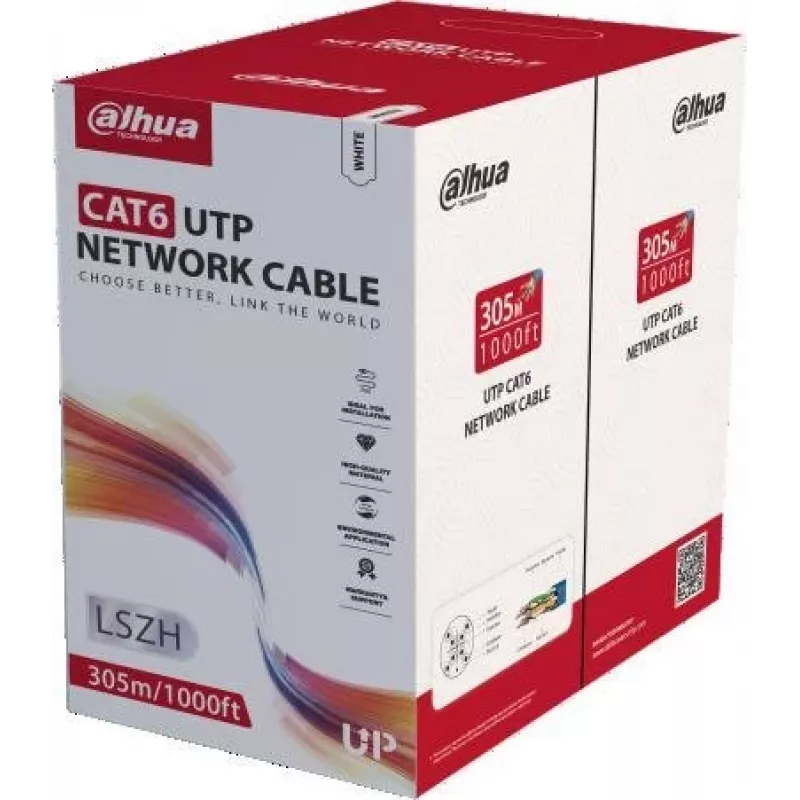

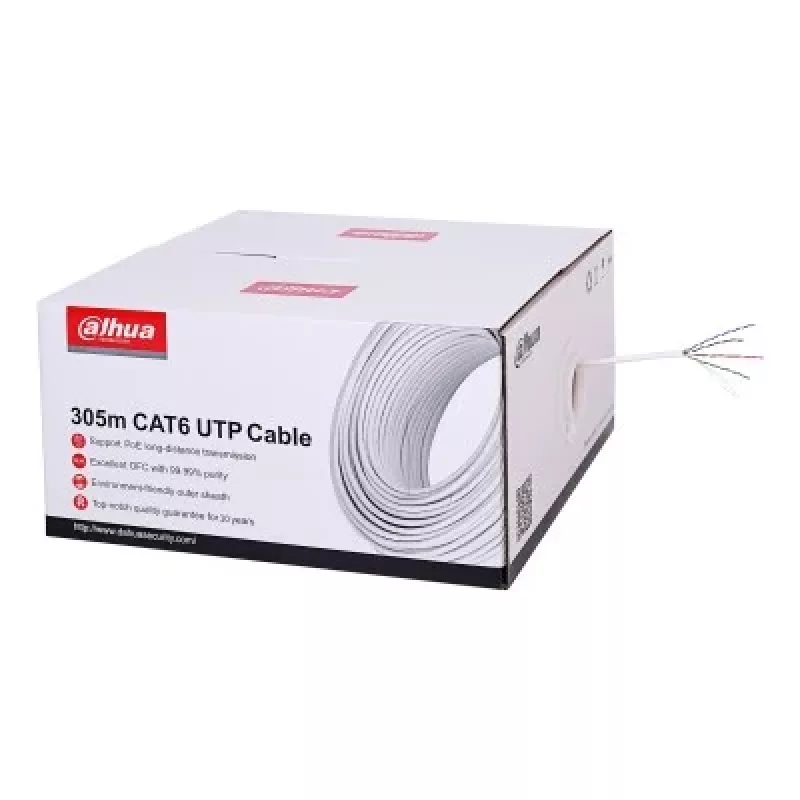

DAHUA PFM923I-6UN-C cavo CAT6 UTP, 305m, bianco

Experience 250 MHz bandwidth and 1 Gigabit Ethernet support over a full 305-meter pull box with this CAT6 UTP cable, delivering high-speed, reliable network performance for structured cabling in commercial and residential installations.

Overview

The DAHUA PFM923I-6UN-C is a premium Category 6 unshielded twisted pair (UTP) cable designed for high-performance data transmission. It features 23 AWG oxygen-free copper conductors, ensuring excellent conductivity and signal integrity. The cable comes in a convenient 305-meter (1000-foot) pull box, making it perfect for large-scale installations. Its white PVC jacket is durable and easy to label, blending seamlessly into any environment.

What stands out

• Supports up to 1 Gigabit Ethernet (1000BASE-T) for fast data transfer.
• 250 MHz bandwidth meets TIA/EIA-568-C.2 standards.
• Oxygen-free copper conductors minimize signal loss and ensure long-term reliability.
• 23 AWG solid conductors provide excellent performance and ease of termination.
• 305-meter length in a pull box reduces waste and simplifies installation.
• White PVC jacket is flame-retardant and suitable for indoor use.

Technical details

• Cable type: CAT6 UTP (unshielded twisted pair)
• Length: 305 meters (1000 feet)
• Colour: White
• Conductor material: Oxygen-free copper (OFC)
• Conductor gauge: 23 AWG (0.53 mm)
• Number of pairs: 4 twisted pairs
• Insulation material: HDPE
• Sheath material: PVC
• Sheath thickness: 0.5 mm ± 0.1 mm
• Shielding: Unshielded (UTP)
• Bandwidth: Up to 250 MHz
• Data transfer rate: Supports up to 1 Gigabit Ethernet (1000BASE-T)
• Impedance: 100 ± 15 Ω
• DC resistance: Max 9.38 Ω/100m
• Nominal velocity of propagation (NVP): 69%
• Operating temperature: -20°C to +60°C
• Application environment: Indoor
• Standards compliance: TIA/EIA-568-C.2

Our verdict

The DAHUA PFM923I-6UN-C offers exceptional value for large-scale network installations, combining high bandwidth, reliable performance, and ease of deployment in a single pull box.
