DEHN AK 7.10 FRM10X45 KBF0.4 12 TGTZN 1,2 cm morsetto di collegamento (371009)

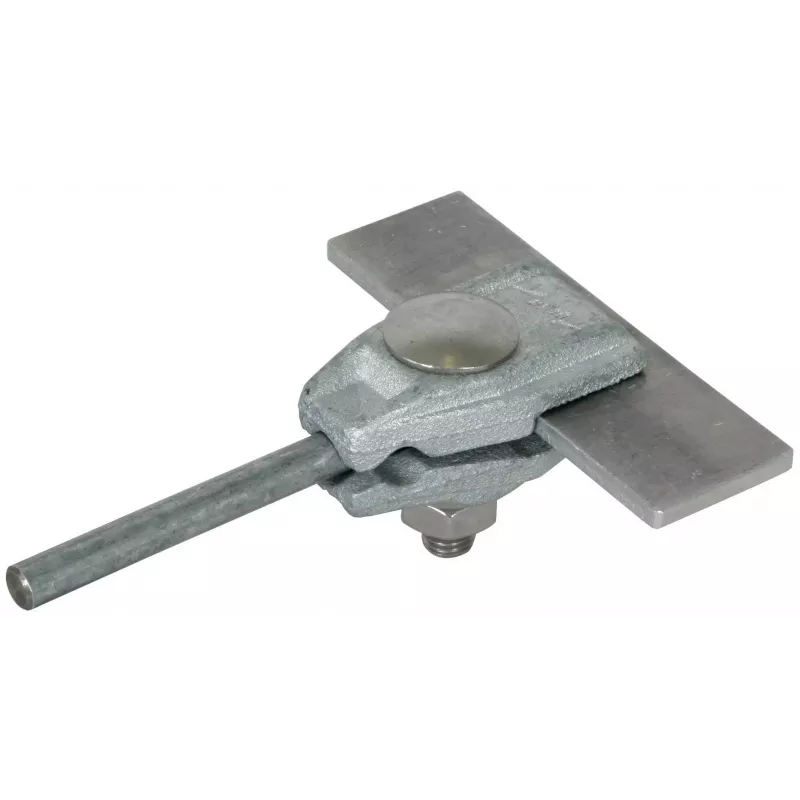

For lightning protection installers and electrical contractors working on building exteriors, the DEHN AK 7.10 connection clamp provides a reliable cross connection between round conductors and flat conductors. This clamp is hot-dip galvanized for high corrosion resistance, making it suitable for outdoor use in lightning protection systems.

Key specifications

• Product type: Connection clamp
• Material: Steel, hot-dip galvanized (St/tZn)
• Round conductor diameter range: 8 - 10 mm
• Max. round conductor diameter: 12 mm
• Flat conductor width range: 30 - 40 mm
• Flat conductor thickness: 0.4 mm
• Connection screw: M10 x 45 mm
• Clamping principle: Screw clamp
• Number of connections: 1x round to 1x flat
• Colour: Metallic grey (galvanized)

Why choose it

This clamp is designed for secure and durable connections in lightning protection systems. Its hot-dip galvanized steel construction ensures long-term performance in outdoor environments, while the screw clamp mechanism provides a firm grip on conductors.

Ideal use cases

• Cross connection of round conductors to flat conductors in lightning protection systems
• Outdoor installations where corrosion resistance is required

Good to know

The clamp is compliant with EN 62561-1 for lightning protection components, ensuring it meets industry standards for safety and reliability.
