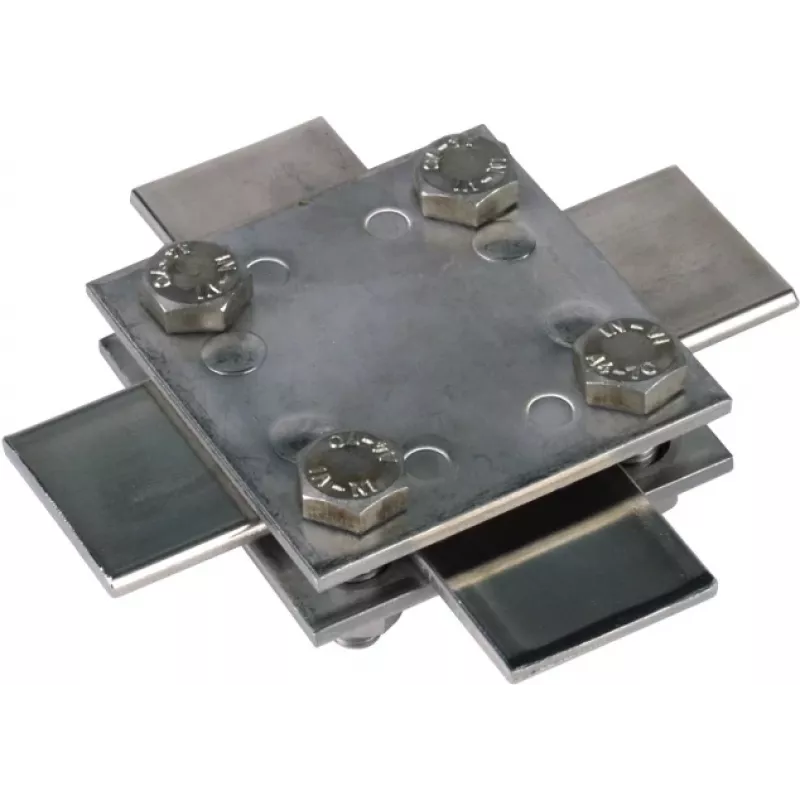

DEHN KS FL30 V4A morsetto per conduttore piatto in acciaio inox 30x4 mm 318233

Connecting flat conductors in lightning protection and earthing systems requires a clamp that withstands harsh environments and high impulse currents. The DEHN KS FL30 V4A provides a secure screw connection for flat conductors up to 30 mm wide and 4 mm thick, made entirely from stainless steel V4A for excellent corrosion resistance.

Who is it for

Electricians and installers working on lightning protection, earthing, and equipotential bonding systems in outdoor or indoor environments where corrosion resistance and mechanical strength are critical.

Main features

• Stainless steel V4A (1.4401/1.4404) construction for high corrosion resistance, including saltwater exposure
• Accommodates flat conductors up to 30 mm width and 4 mm thickness
• Hexagon head screw M8 for reliable clamping force
• Suitable for conductor-to-conductor or conductor-to-component connections
• UV resistant and suitable for outdoor use

Specifications

• Product type: Conductor clamp / clamping piece
• Material: Stainless steel V4A
• Max flat conductor width: 30 mm
• Max flat conductor thickness: 4 mm
• Connection type: Screw clamp
• Screw size: M8
• Screw material: Stainless steel V4A
• Screw type: Hexagon head screw
• Design: Single clamp
• Mounting: Conductor-to-conductor or conductor-to-component
• Application: Lightning protection, earthing, equipotential bonding
• Standard compliance: EN 62561-1 (VDE 0185-561-1)
• Corrosion resistance: High
• UV resistance: Yes
• Saltwater resistance: Yes
• Impulse current carrying capability: High (as per EN 62561-1)

Tips

Ensure the conductor surfaces are clean before clamping to achieve optimal electrical contact. Tighten the M8 screw to the recommended torque for secure and long-lasting performance.
