DeLOCK D-Sub 37 poli maschio su morsettiera per guida DIN 51 mm 30 mm 116 mm

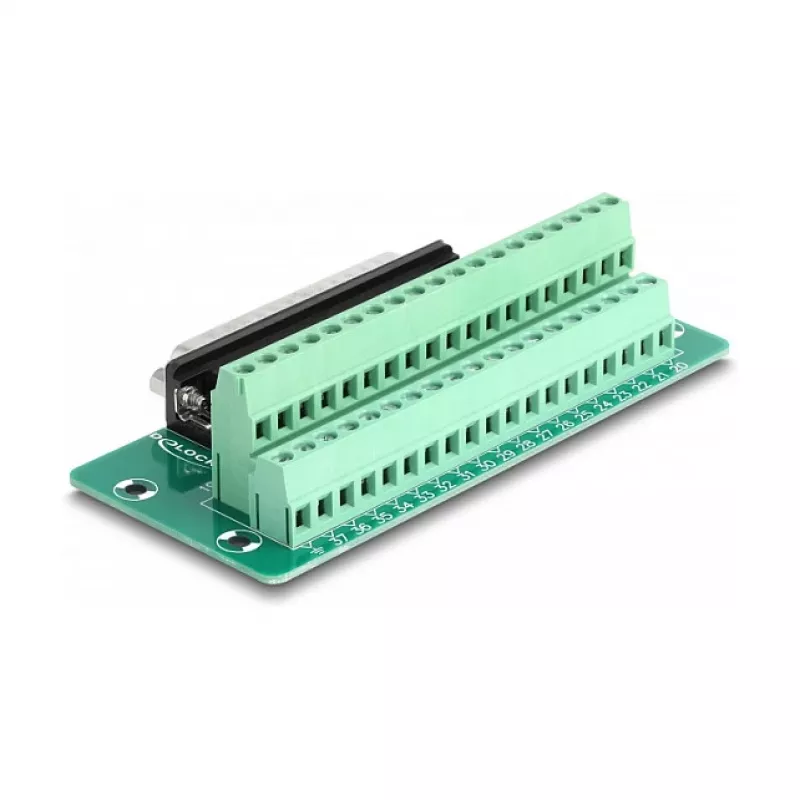

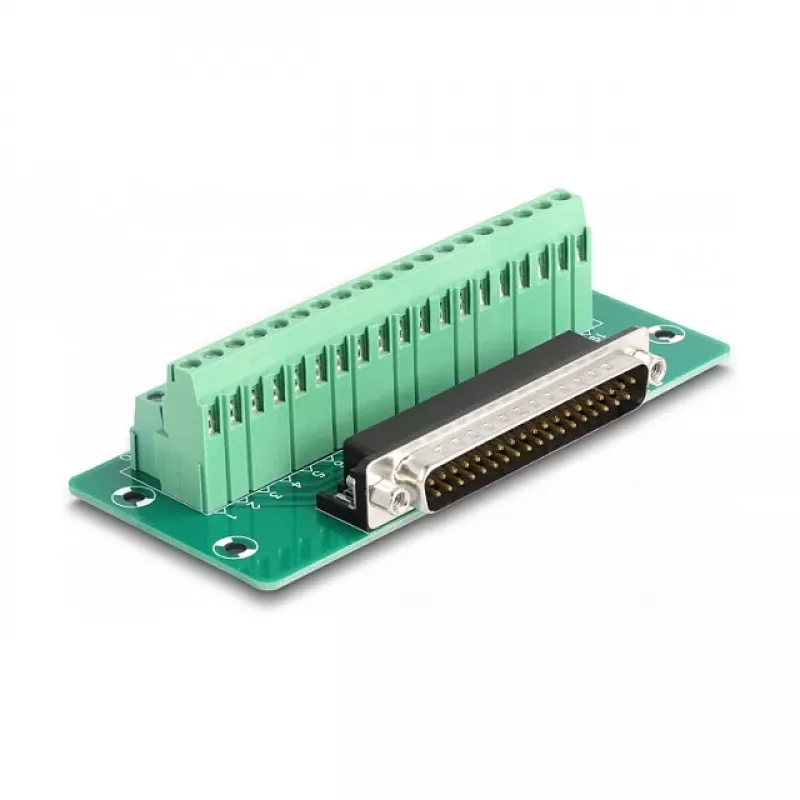

The DeLOCK D-Sub 37 pin male to Terminal Block is an adapter that allows connection of wires with stripped ends to a D-Sub 37 pin male interface. It is designed for DIN rail mounting and has a compact footprint of 51 mm width, 30 mm depth and 116 mm height. The adapter is coloured green and provides a neat transition between D-Sub equipment and terminal block wiring.

Advantages

The adapter supports direct connection of stripped conductor ends, simplifying wiring tasks and reducing the need for additional connectors. DIN rail mounting clips are included, enabling attachment to 15 mm or 35 mm wide DIN rails for secure installation. The compact dimensions save space in control cabinets and distribution panels while keeping the D-Sub 37 pin male interface accessible.

Suitable for

• Connecting devices with a D-Sub 37 pin male connector to screw terminal wiring
• Use in electrical control cabinets and distribution panels
• Industrial automation and signal wiring where DIN rail mounting is required

Key specifications

• Brand: DELOCK
• Model / MPN: 66913
• EAN: 4043619669134
• Connector: D-Sub 37 pin male to terminal block

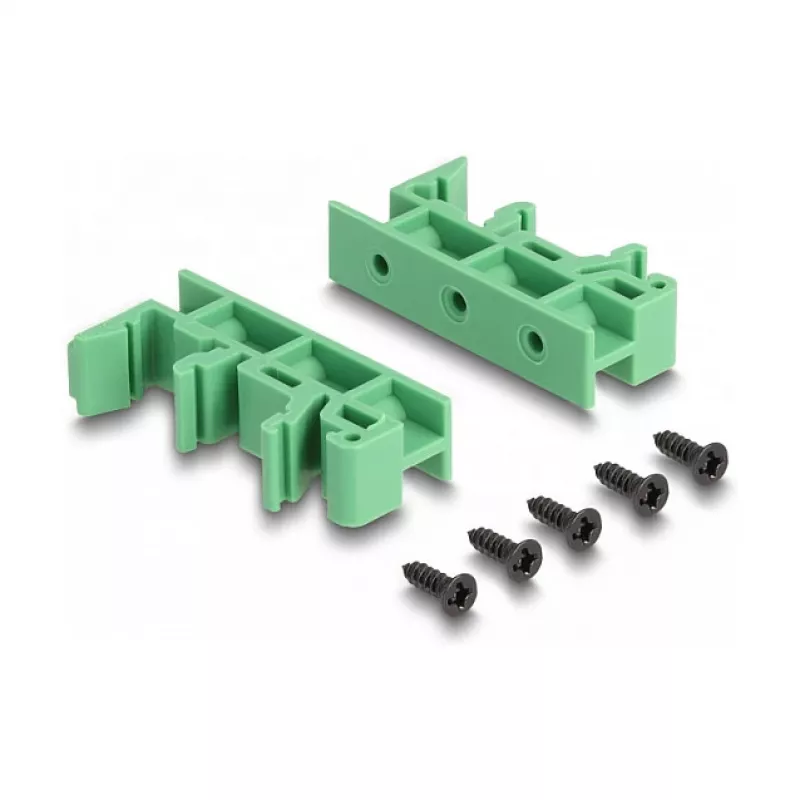

• Mounting: DIN rail (clips for 15 mm and 35 mm rails included)
• Dimensions (W × D × H): 51 mm × 30 mm × 116 mm
• Colour: Green

How to use

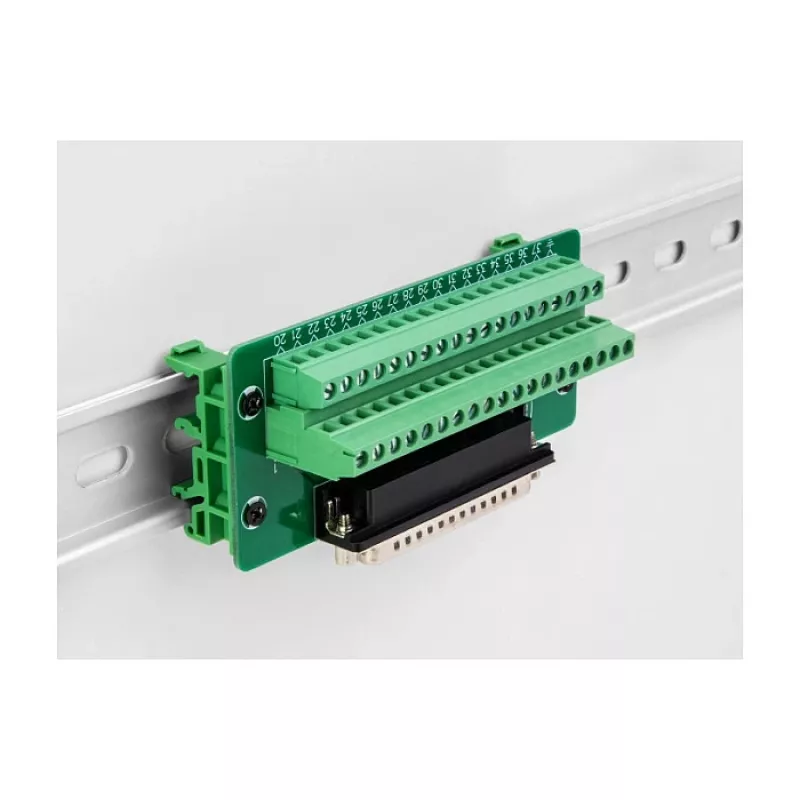

Mount the adapter onto a compatible 15 mm or 35 mm DIN rail using the supplied clips. Strip the wire ends to the appropriate length, insert them into the terminal block points and secure them according to the terminal type (for example by tightening screws). Connect the D-Sub 37 pin male connector to the mating device or cable. Verify mechanical stability of the DIN rail mounting and electrical continuity before applying power.

Recommendations

Use appropriate wire cross-sections and ensure terminal screws are tightened to the manufacturer-recommended torque. Do not exceed the electrical ratings of connected devices. Install the adapter in an environment that meets the required IP, temperature and safety standards for your installation.
