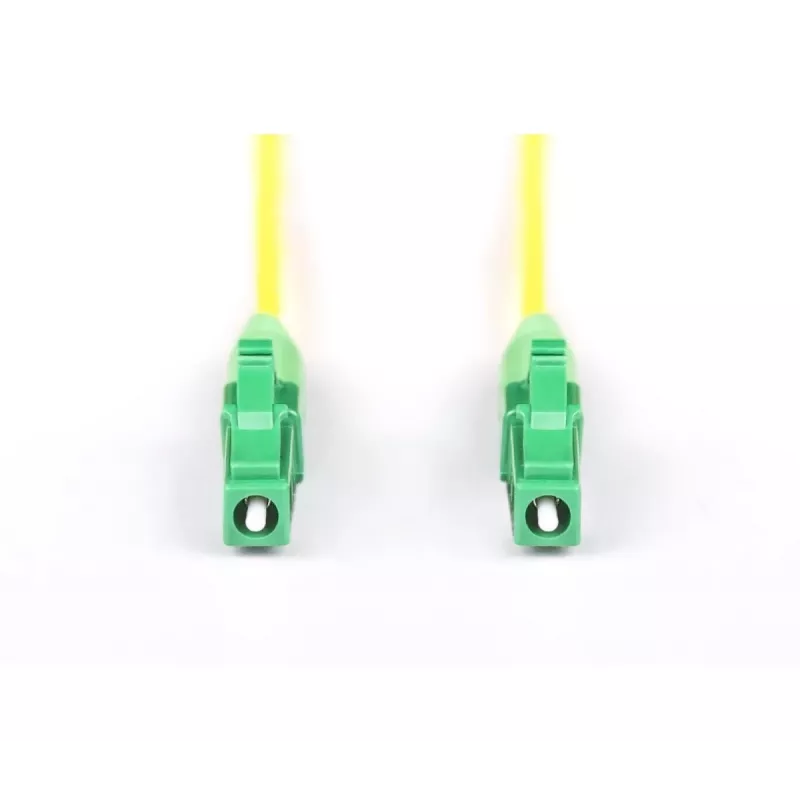

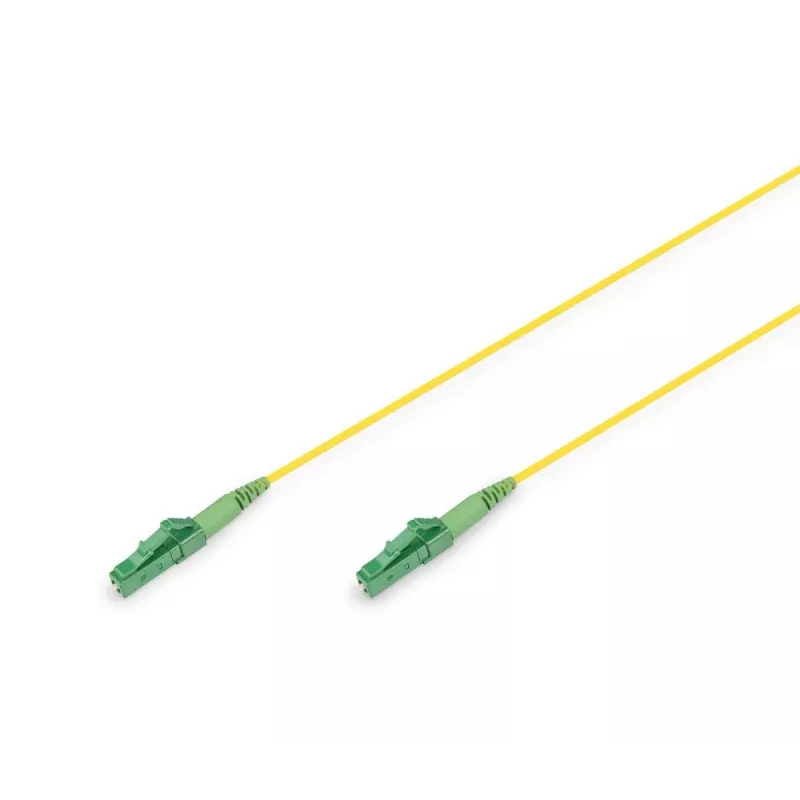

DIGITUS Cavo patch in fibra ottica - SM Simplex LC/APC su LC/APC G.657.A02 10m

DIGITUS Cavo patch in fibra ottica - SM Simplex LC/APC su LC/APC G.657.A02 10m
DIGITUS Cavo patch in fibra ottica - SM Simplex LC/APC su LC/APC G.657.A02 10m
DIGITUS Cavo patch in fibra ottica - SM Simplex LC/APC su LC/APC G.657.A02 10m
DIGITUS Cavo patch in fibra ottica - SM Simplex LC/APC su LC/APC G.657.A02 10m
6,11 €
High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.- High flexibility- Bend insensitive- High precision and low insertion loss- Compliant with G.657.A2The single mode ... Leggi di più
Stock 30 Codice 129350 Marca DIGITUS Modello DK-2933-10-APC-SX Garanzia 2 anni

Spedizioni e resi

Consegna stimata martedì 27 ottobre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.

- High flexibility
- Bend insensitive
- High precision and low insertion loss
- Compliant with G.657.A2

The single mode simplex fiber cable enables easier installation due to their bend insensitive characteristic. It is designed to transmit data with less attenuation when bent or twisted and as a result the cables are very efficient. Therefore, this makes the cable excellently suited for confined spaces. It is ideal for use in telecommunications, FTTx (FTTH, FTTB) applications and also gives more space for high-density cable installation requirements in enterprise networks, telecom rooms, server farms, horizontal and equipment distribution areas.

Punti salienti
  • Fiber type : Singlemode 9/125
  • Category : G657A2
  • Cable length : 10 m
  • Number of fibers: 1
  • Cable structure : Simplex
  • Connector 1 type : LC/APC
  • Connector 2 type : LC/APC
  • Maximum tractive force : 100 N
  • Cable type : I-V(ZN) H
  • Cable Ø : 2.0 mm
  • Minimum Bend Radius : 7.5 mm
  • Sheath color : Yellow
  • Jacket material : LSZH
  • Insertion loss 1310 nm : 0.3 dB
  • Working temperature : -20 - 70 °C
  • Storage temperature : -20 - 85 °C
Specifiche
Colore del prodotto
Yellow
Connettore 1
LC
Connettore 1 maschio/femmina
Male
Connettore 2
LC
Connettore 2 maschio/femmina
Male
Diametro del cavo
2 mm
Diametro del rivestimento
125 µm
Diametro dell'anima
9 µm
Forma del cavo
Round
Full duplex
No
Lunghezza del cavo
10 m
Lunghezze d'onda supportate
1310 nm
Materiale della guaina
Low smoke zero halogen (LSZH)
Modalità della fibra
Single-mode
Plug and Play
Yes
Quantità per confezione
1 pc(s)
Raggio di curvatura
7.5 mm
Temperatura di esercizio (T-T)
-20 - 70 °C
Temperatura di stoccaggio (T-T)
-20 - 85 °C
Tipo di cavo
I-V(ZN) H
Tipo di fibra ottica
G.657.A2
Tipo di lucidatura del connettore
APC

Brochure

Apri documento
