Donau Elektronik 105-5-100 filo di cablaggio 1 x 0,20 mm² bianco 100 m

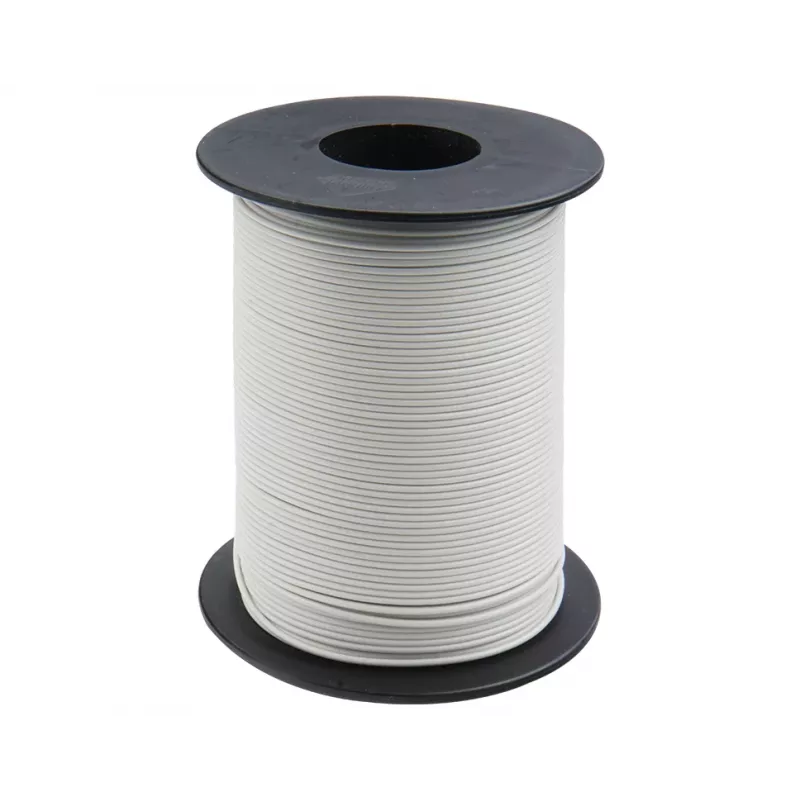

Single-core hook-up wire with tinned copper conductor and white PVC insulation, supplied on a 100 m spool. The 0.20 mm² stranded conductor handles internal wiring, prototyping and model building with a nominal voltage of 300 V.

Advantages

Flexible stranded construction eases routing in tight spaces. Tinned copper resists corrosion and simplifies soldering. PVC insulation provides abrasion resistance and a wide temperature range from -30 °C to +80 °C.

Suitable for

• Internal wiring of electronic devices
• Prototyping and breadboard connections
• Model building and hobby projects

Key specifications

• Conductor cross-section: 0.20 mm²
• Conductor material: tinned copper
• Insulation: PVC, white
• Outer diameter: approx. 1.2 mm
• Length: 100 m
• Nominal voltage: 300 V
• Temperature range: -30 °C to +80 °C

Recommendations

For reliable point-to-point wiring in low-voltage circuits, this wire offers a balance of flexibility, solderability and insulation durability.
