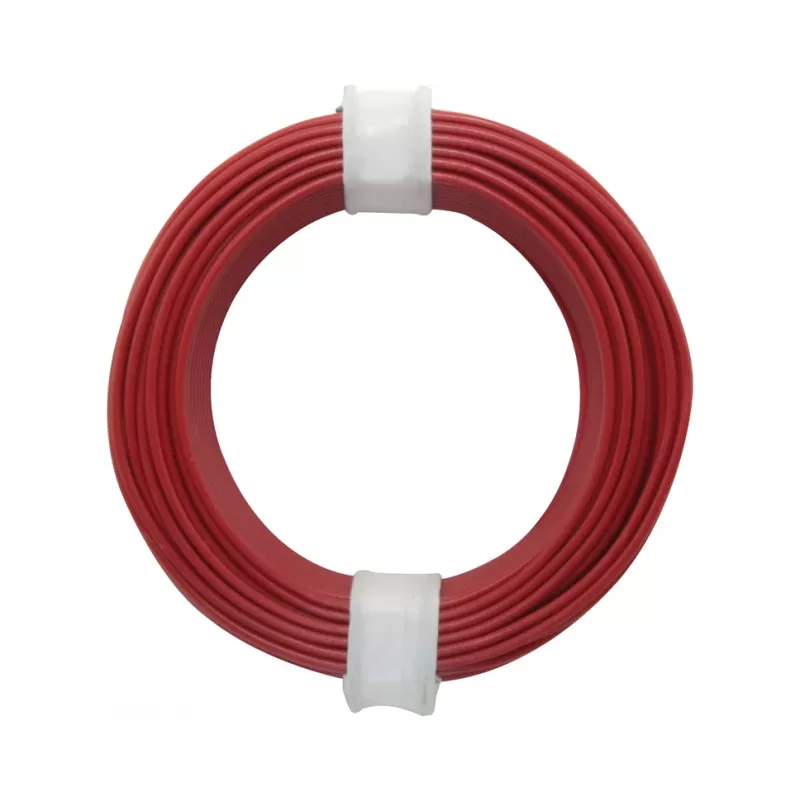

Donau Elektronik 118-0 filo flessibile 1 x 0,14 mm² rosso 10 m

With a conductor resistance of just 0.13 Ohm/m, this 10-metre red stranded hook-up wire keeps voltage drop low across your connections. The 0.14 mm² cross-section (26 AWG) is built from 7 tinned copper strands, giving it the flexibility to route through tight spaces without breaking.

Overview

Donau Elektronik's 118-0 is a single-core PVC-insulated wire for internal wiring, prototyping, model building and general electronics. The red insulation makes polarity and signal paths easy to identify at a glance.

What stands out

• 7-strand tinned copper conductor for reliable solder joints
• Rated for 300 V and temperatures from -20 to +80 °C
• Compact 1.3 mm outer diameter fits dense layouts
• 10-metre length covers multiple projects or long runs

Technical details

• Wire type: stranded hook-up wire
• Number of cores: 1
• Conductor cross-section: 0.14 mm² (26 AWG)
• Conductor material: tinned copper
• Number of strands: 7
• Strand diameter: 0.16 mm
• Insulation material: PVC
• Insulation colour: red
• Outer diameter: 1.3 mm
• Nominal voltage: 300 V
• Temperature range: -20 to +80 °C
• Conductor resistance: 0.13 Ohm/m
• Length: 10 m

Our verdict

A dependable red hook-up wire for electronics work where flexibility and clear colour coding matter.
