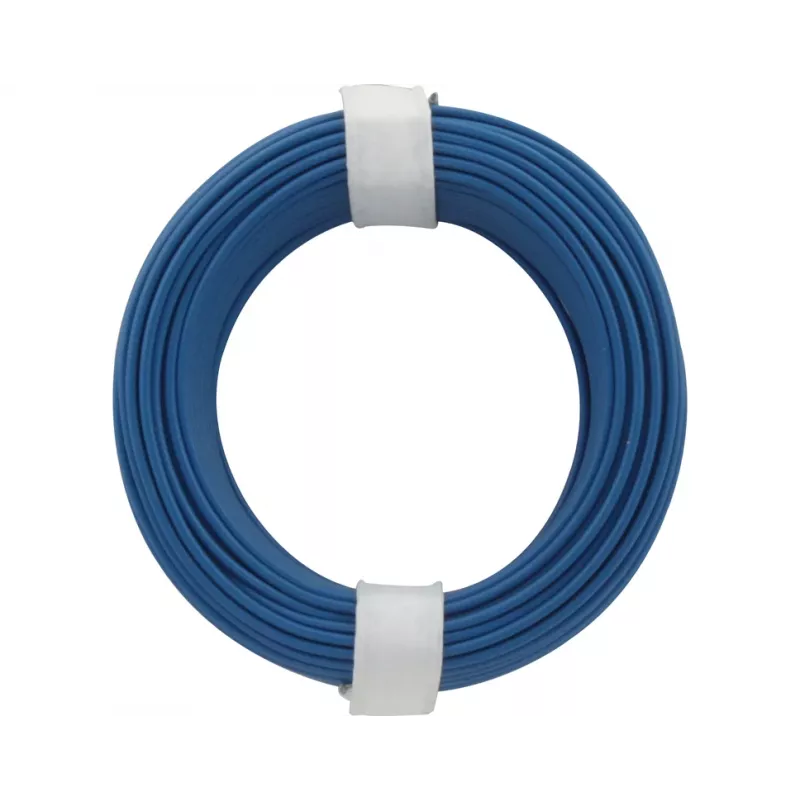

Donau Elektronik 118-2 treccia 1 x 0,14 mm² blu 10 m

When you need reliable, flexible wiring for electronics projects or model building, a single-core stranded wire that combines easy handling with consistent conductivity is essential. The Donau Elektronik 118-2 delivers exactly that: a 10-meter length of fine-stranded copper wire with a 0.14 mm² cross-section and durable blue PVC insulation, ready for low-voltage signal and control connections.

Who is it for

This stranded wire is ideal for hobbyists, technicians, and engineers working on general-purpose wiring, electronics prototyping, model making, or small appliance repairs. Its fine stranding (18 x 0.1 mm) provides excellent flexibility, making it easy to route through tight spaces or around corners without breaking. The blue colour aids in circuit identification and organisation.

Main features

• Single-core stranded copper wire, 0.14 mm² cross-section
• 10-meter length on a convenient ring dispenser
• Blue PVC insulation for easy colour coding
• Fine stranding (18 x 0.1 mm) for high flexibility
• Nominal voltage 300 V, suitable for low-voltage applications
• Operating temperature range -20 to +80 °C
• RoHS compliant

Specifications

• Product type: Stranded wire
• Number of cores: 1
• Conductor cross-section: 0.14 mm²
• Conductor material: Copper
• Insulation material: PVC
• Wire colour: Blue
• Length: 10 m
• Outer diameter: 1.2 mm
• Stranding: 18 x 0.1 mm
• Nominal voltage: 300 V
• Operating temperature: -20 to +80 °C
• RoHS compliance: Yes
• Packaging type: Ring

Tips

For best results, strip the insulation carefully to avoid nicking the fine strands. When soldering, pre-tin the wire ends to ensure a strong joint. Use heat-shrink tubing or insulating tape to protect connections. Store the ring in a dry place to maintain insulation integrity.
