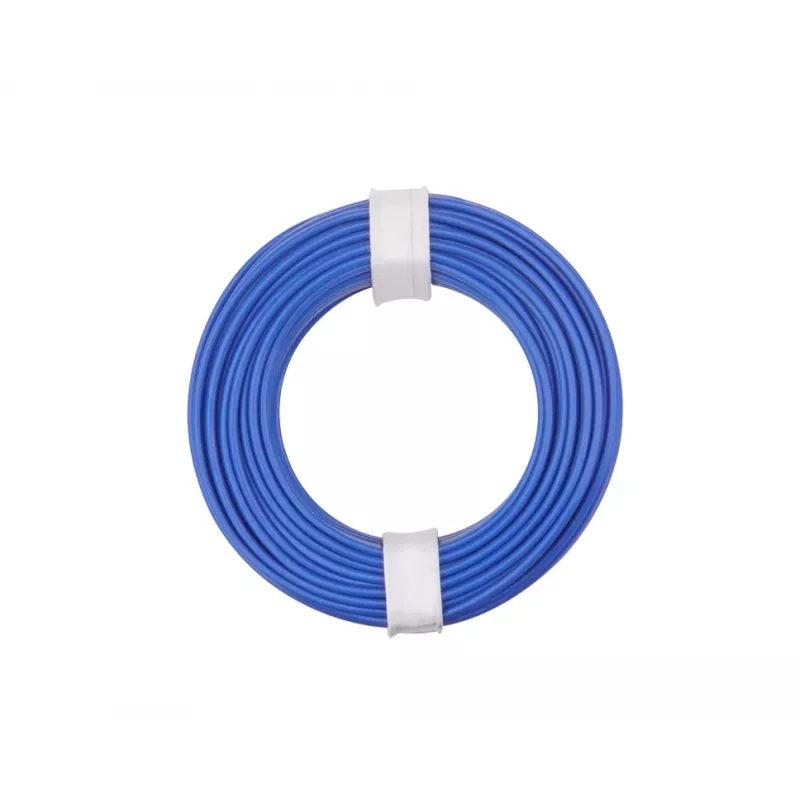

Donau Elektronik 175-012 LiY filo flessibile 1 x 0,75 mm² blu

Single-core stranded wire with 0.75 mm² cross-section and blue PVC insulation, rated for 300/500 V and operating from -30°C to +70°C. The fine-stranded bare copper conductor (Class 5) keeps the wire flexible for internal appliance wiring and control panel installations.

Overview

The Donau Elektronik 175-012 is a LiY-type hook-up wire with one core. Its conductor is made of bare copper, finely stranded to Class 5, and insulated with PVC. The blue insulation provides clear colour coding for internal wiring tasks.

What stands out

• Fine-stranded Class 5 copper conductor for flexibility
• PVC insulation rated for 300/500 V
• Temperature range from -30°C to +70°C
• Self-extinguishing insulation

Technical details

• Wire type: LiY stranded wire
• Number of cores: 1
• Nominal cross-section: 0.75 mm²
• Conductor material: bare copper
• Conductor class: 5 (fine-stranded)
• Insulation material: PVC
• Insulation colour: blue
• Rated voltage: 300/500 V
• Operating temperature: -30°C to +70°C
• Outer diameter: 2.3 mm
• Max. conductor resistance at 20°C: 26 Ω/km
• Max. current rating: 9 A

Our verdict

A dependable single-core wire for low-voltage internal wiring, with a flexible fine-stranded conductor and clear blue PVC insulation.
