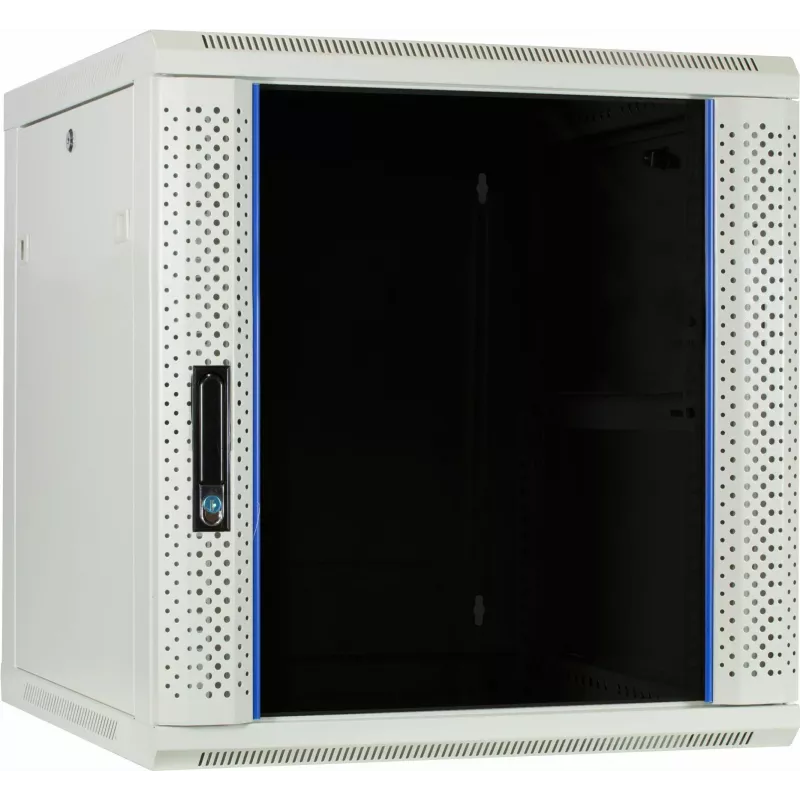

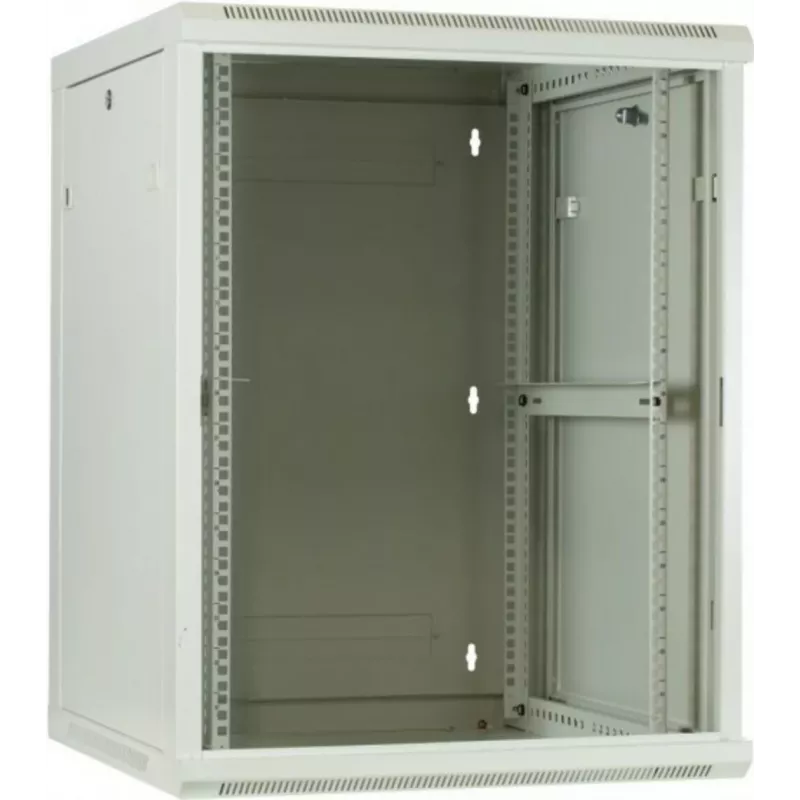

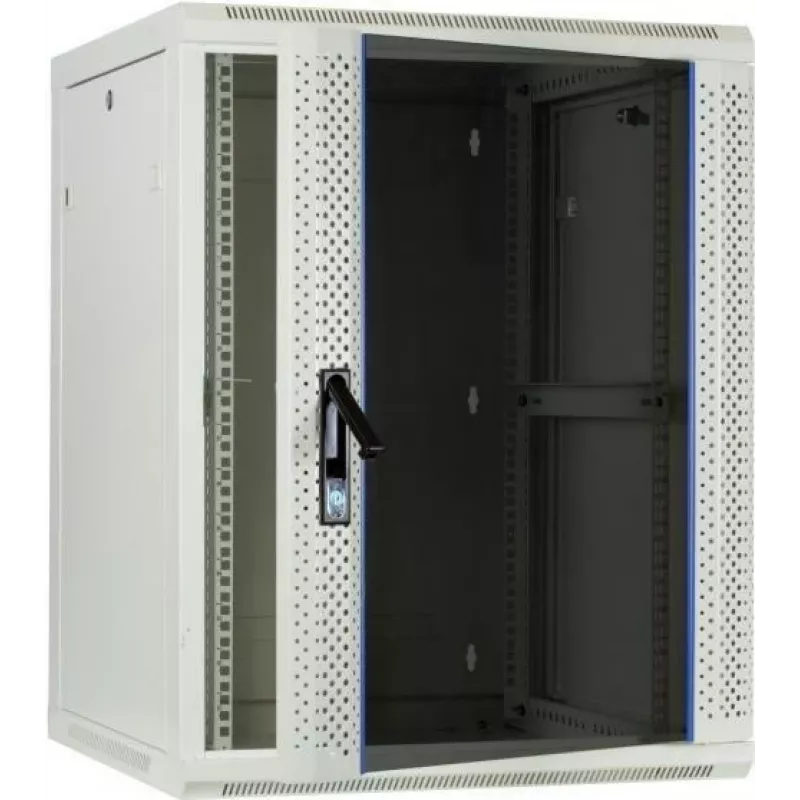

DSIT Armadio server a parete 12U con porta in vetro, bianco, 600x600x635 mm

Organizing network equipment in limited spaces often means compromising on security, accessibility, or aesthetics. The DSIT 12U wall-mount server cabinet solves this by providing a compact, lockable enclosure that keeps your 19-inch devices protected and neatly arranged, even in offices, classrooms, or retail environments where floor space is at a premium.

Who is it for

This cabinet is ideal for IT administrators, network installers, and small businesses that need to securely house switches, patch panels, and other rack-mount equipment in areas without room for a full-size rack. Its tempered glass front door allows visual monitoring of indicator lights without opening the cabinet, while the lockable design prevents unauthorized access.

Main features

• 12U capacity for standard 19-inch equipment, with adjustable front and rear mounting rails for flexible installation depths.
• Durable SPCC cold-rolled steel frame with a powder-coated white finish that resists scratches and blends into modern interiors.
• Tempered glass front door with key lock for security and easy status checks.
• Removable, lockable side panels for convenient cabling and maintenance access.
• Top and bottom cable entry knockouts for clean cable routing.
• Passive ventilation with optional fan unit mounting points to manage heat buildup.
• Supports up to 60 kg of equipment, making it suitable for a range of networking hardware.

Specifications

• External dimensions (WxDxH): 600 x 600 x 635 mm
• Rack units: 12U
• Rack standard: 19-inch
• Maximum weight capacity: 60 kg
• Material: SPCC cold rolled steel
• Colour: White
• Front door: Tempered glass, lockable
• Side panels: Removable, lockable
• Cable entry: Top and bottom with knockouts
• Ventilation: Passive (fan mounting points available)
• IP protection class: IP20
• Included accessories: 2 keys, mounting hardware

Tips

Before installation, ensure the wall can support the combined weight of the cabinet and equipment. Use the adjustable rails to set the mounting depth according to your deepest device, and consider adding a fan unit if you plan to install heat-generating equipment like PoE switches.
