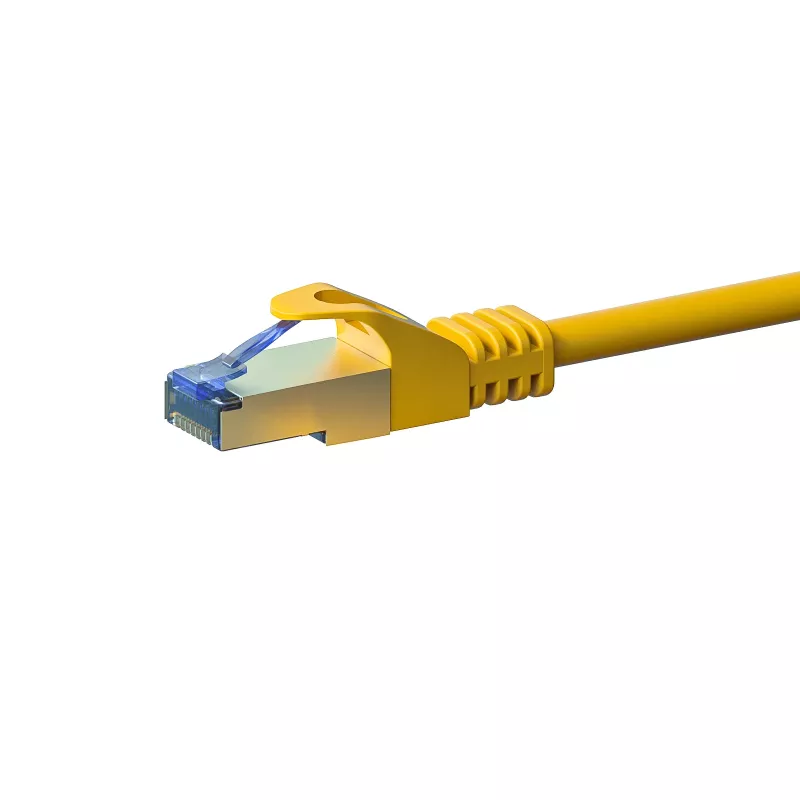

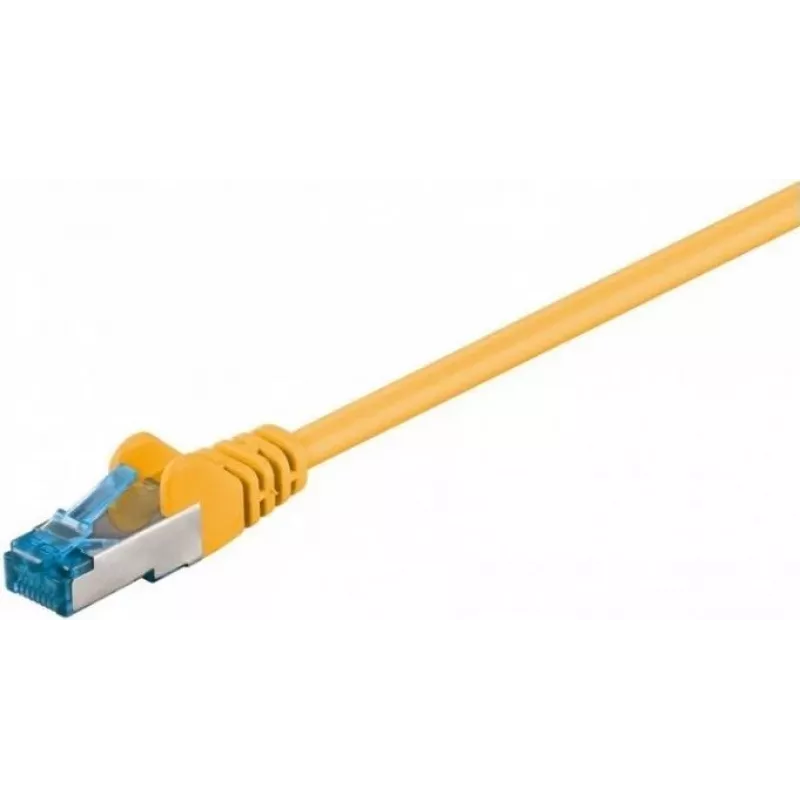

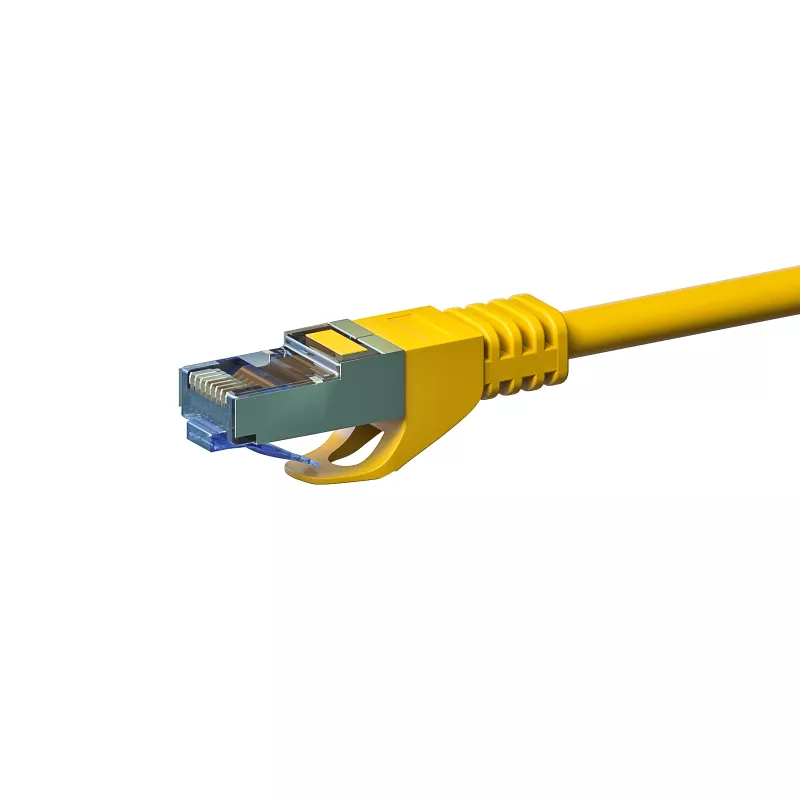

DSIT CAT 6a cavo di rete LSOH - S/FTP - 50 metri - giallo (DC-6A7-500)

High-speed data transmission demands a cable that can keep pace without interference or signal loss. The DSIT CAT 6a Network Cable delivers exactly that, with S/FTP shielding and LSOH jacketing for reliable 10 Gigabit performance over 50 meters. Whether wiring a data center or upgrading a LAN, this yellow cable ensures clean, fast connectivity.

Who is it for

Network administrators, IT professionals, and system integrators who need a dependable, high-bandwidth cable for indoor installations. Ideal for environments where safety and performance are critical, such as offices, server rooms, and industrial settings.

Main features

• CAT 6a performance with 500 MHz bandwidth for 10GBASE-T Ethernet
• S/FTP shielding: each pair foiled plus overall braid for superior EMI/RFI rejection
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety and low toxicity
• Solid bare copper conductors, 23 AWG, for optimal signal integrity
• Gold-plated RJ45 connectors on both ends for corrosion resistance and reliable contact
• Supports PoE, PoE+, and PoE++ for powering devices over the same cable
• Complies with TIA/EIA-568-C.2 and ISO/IEC 11801 Class EA standards

Specifications

• Cable type: CAT 6a S/FTP
• Length: 50 meters
• Colour: Yellow
• Jacket material: LSOH
• Conductor: Solid bare copper, 23 AWG, 4 twisted pairs
• Connector: RJ45 male to RJ45 male, gold-plated
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• Impedance: 100 Ohm
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801 Class EA
• Fire safety: IEC 60332-1, IEC 61034-2, IEC 60754-2
• Halogen-free, flame retardant

Tips

For best performance, avoid sharp bends and maintain the minimum bend radius. Use cable ties to secure runs and label both ends for easy identification. This cable is suitable for PoE applications up to 100W, making it ideal for powering access points, cameras, and other devices.
