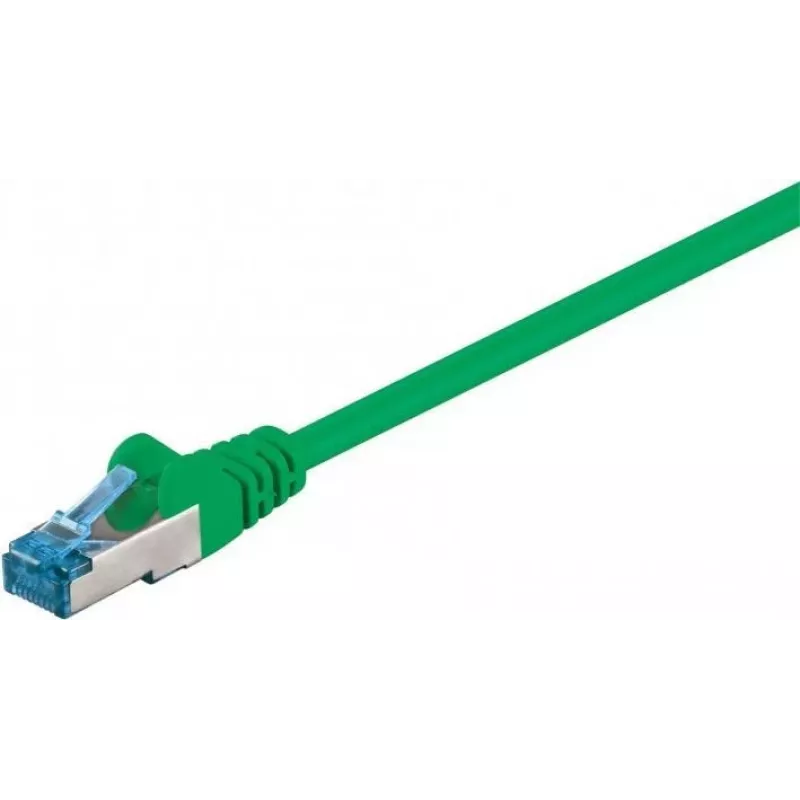

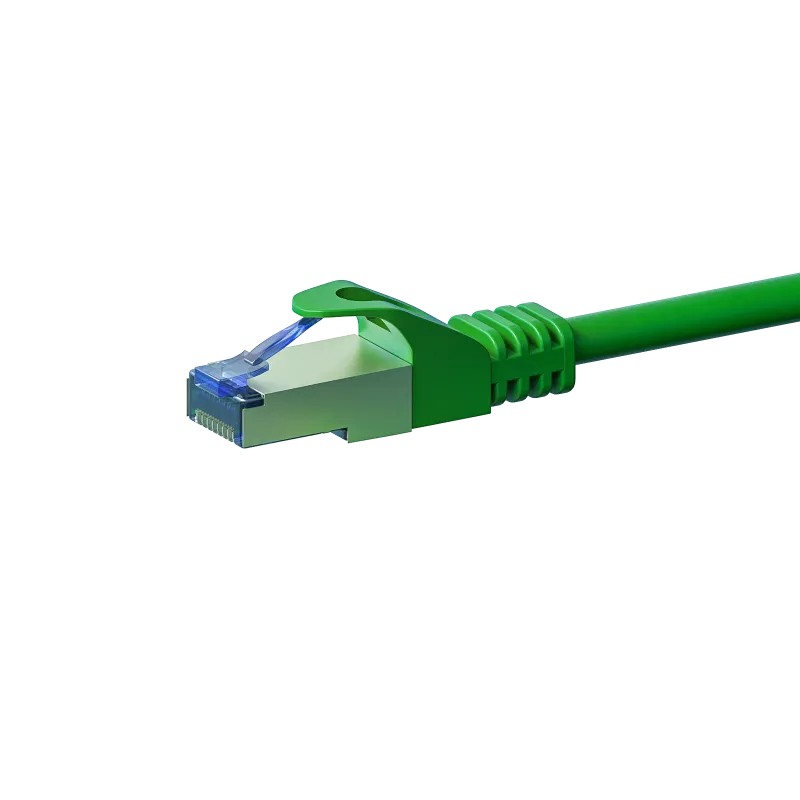

DSIT CAT 6a cavo di rete LSOH - S/FTP - 7,5 m - verde

Experience high-speed networking with this CAT 6a patch cable, delivering up to 10 Gigabit Ethernet for demanding applications. Its S/FTP shielding and LSOH jacket ensure reliable performance and safety in any environment.

Advantages

This cable supports data transfer rates up to 10 Gbps and bandwidth up to 500 MHz, making it ideal for data centers, server rooms, and high-performance home networks. The S/FTP shielding (screened and foiled twisted pairs) minimizes electromagnetic interference and crosstalk, ensuring stable connections even in electrically noisy environments. The LSOH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in case of fire, enhancing safety for people and equipment. Gold-plated RJ45 connectors provide excellent conductivity and corrosion resistance, while stranded copper conductors offer flexibility for easy installation.

Suitable for

• 10GBASE-T Ethernet networks
• Data centers and server rooms
• High-performance home and office networks
• PoE applications (up to PoE++)
• Structured cabling systems

Key specifications

• Category: CAT 6a
• Shielding: S/FTP
• Length: 7.5 meters
• Colour: Green
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Connectors: RJ45 male to RJ45 male, gold-plated
• Conductor: stranded copper, AWG 26/7
• Impedance: 100 Ohm
• Wiring standard: TIA/EIA-568-C.2
• Operating temperature: -20°C to 60°C
• Outer diameter: approx. 6.5 mm

Recommendations

For optimal performance, pair this cable with CAT 6a compliant hardware and avoid sharp bends. It is fully backward compatible with CAT 6, CAT 5e, and lower categories, making it a versatile choice for network upgrades.
