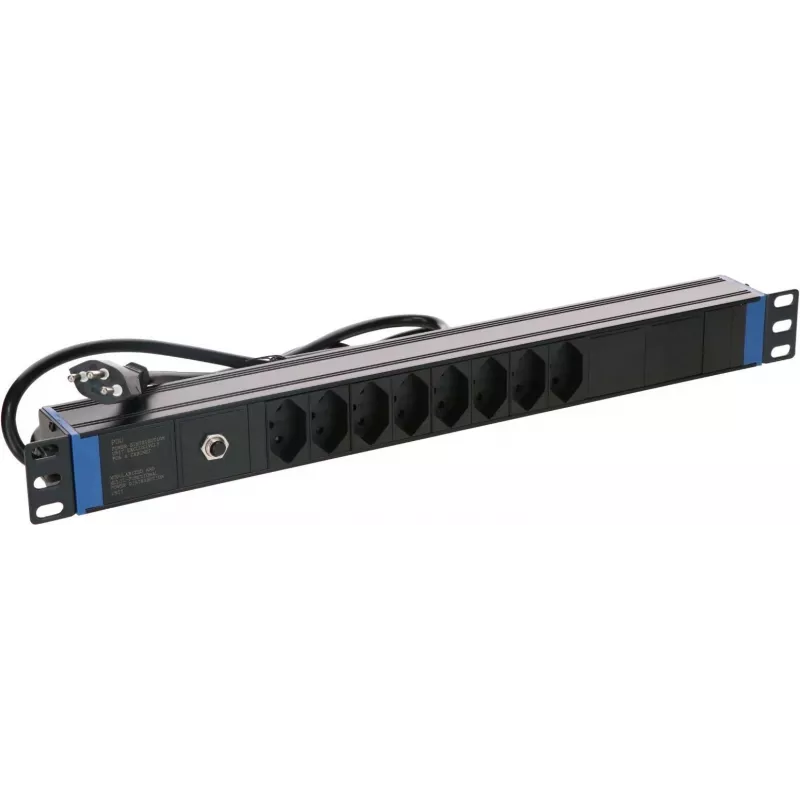

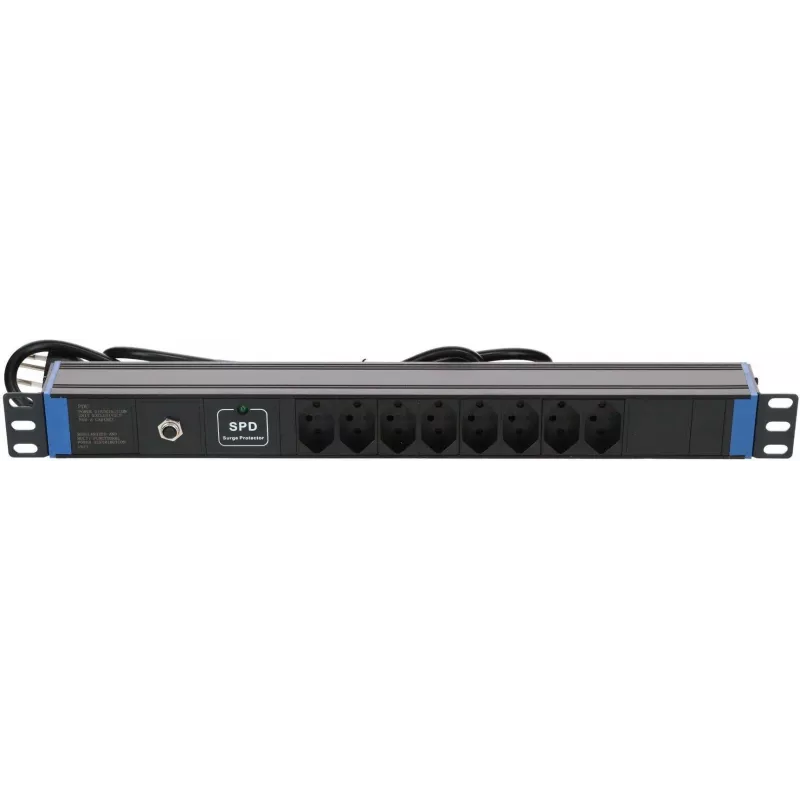

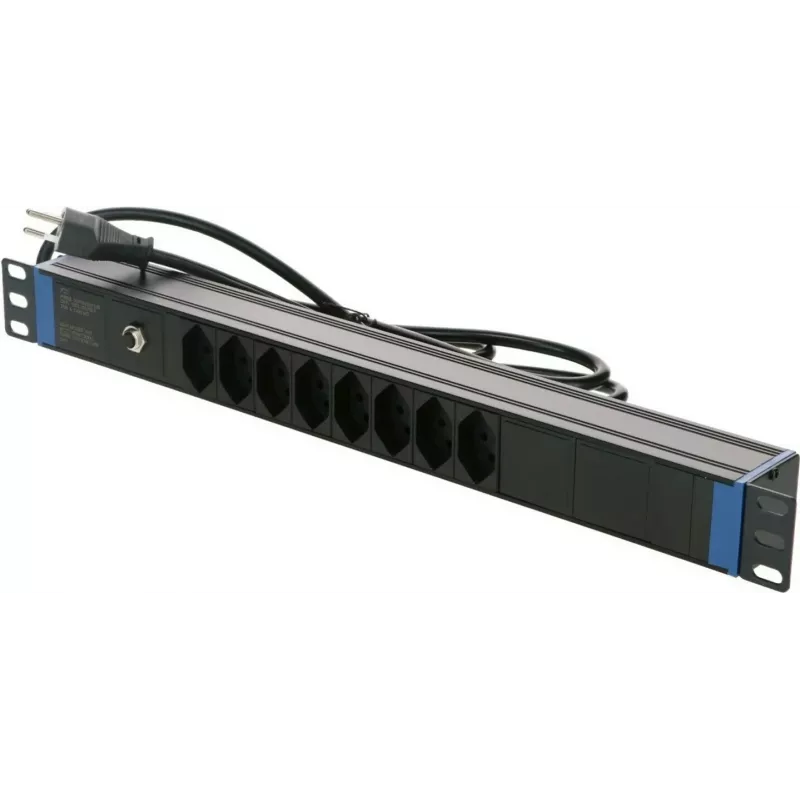

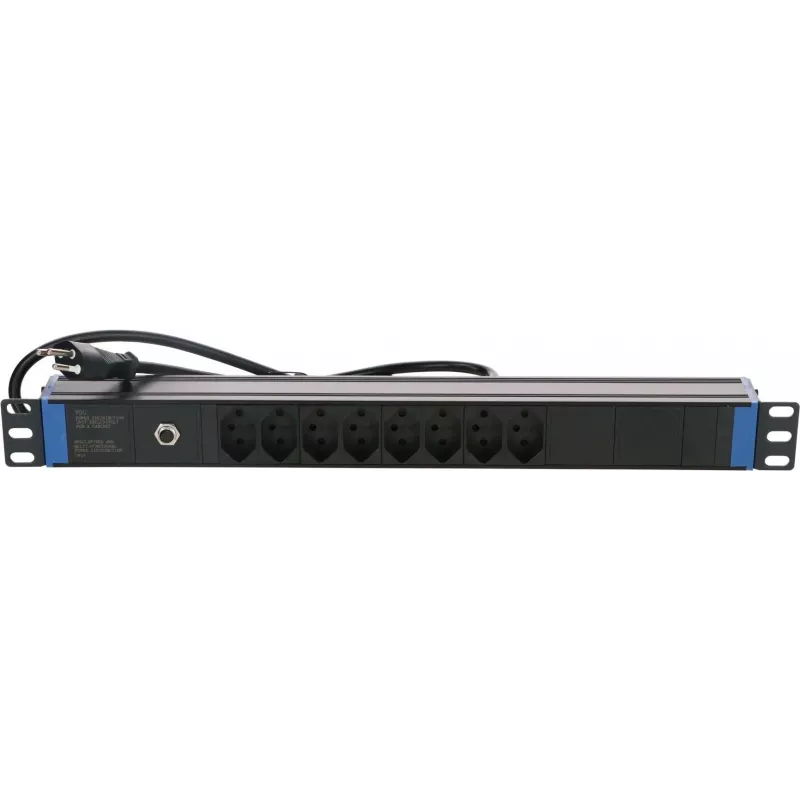

DSIT ciabatta svizzera 19 pollici con protezione da sovratensione - 8 prese (DS-8PDU-CH-SPD)

This 19-inch rackmount power distribution unit delivers clean, surge-protected power to up to eight Swiss Type J (SEV 1011, T12/T13) devices. Its 1U aluminum housing and integrated circuit breaker make it a reliable backbone for professional AV racks, server cabinets, and network enclosures.

Advantages

Eight Swiss outlets with 900 joules of surge absorption shield connected equipment from voltage spikes and transients. The fast <1 ns response time and 775 V clamping voltage ensure sensitive electronics stay safe. A built-in circuit breaker prevents overloads, while front-panel LEDs confirm power and surge protection status at a glance. The rugged aluminum alloy chassis dissipates heat efficiently and withstands demanding rack environments.

Suitable for

• Server rooms and data centers requiring rack-level power distribution
• Professional audio/video installations with Swiss-style power connectors
• Network cabinets and telecom racks needing surge protection
• Industrial control systems and test benches with 19-inch mounting

Key specifications

• Input: IEC 60320 C14 inlet (power cord not included)
• Output: 8 × Swiss Type J (SEV 1011, T12/T13) outlets
• Nominal voltage: 230 V AC, 10 A, 50/60 Hz
• Surge protection: 900 J energy dissipation, 775 V clamping, <1 ns response
• Overload protection: integrated circuit breaker
• Mounting: 19-inch rack, 1U height
• Housing: aluminum alloy, black
• Indicators: power LED, surge protection status LED
• Operating conditions: -5 °C to 45 °C, 5–95% RH non-condensing
• Certifications: CE, RoHS

Recommendations

Pair this PDU with a high-quality IEC C13 power cord and ensure your rack has adequate ventilation. For maximum protection, connect it to a properly grounded mains supply and verify that all connected devices are rated for 230 V AC.
