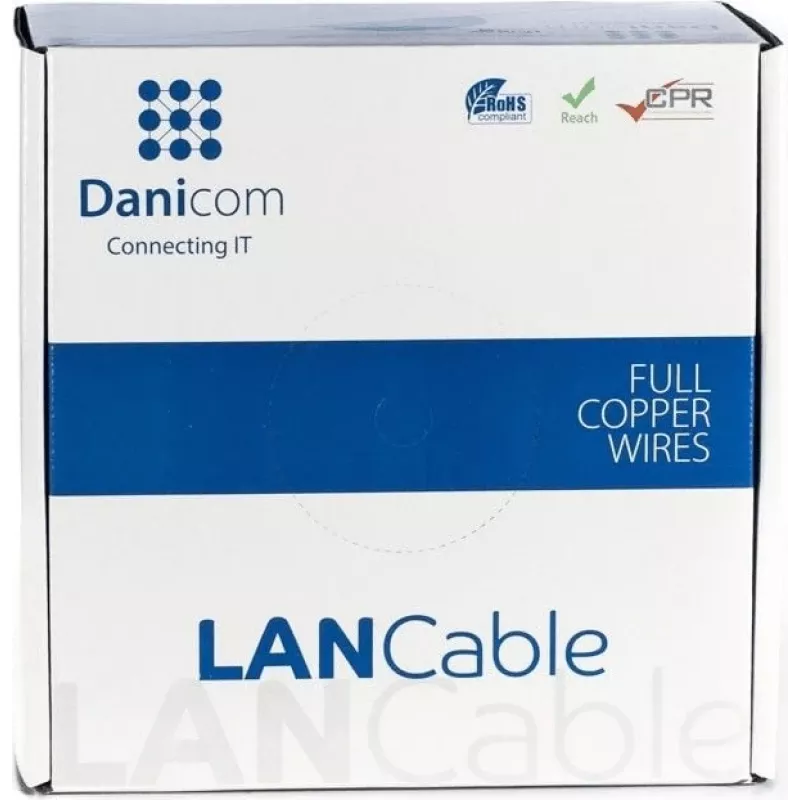

DSIT DANICOM CAT5e UTP cavo di rete solid core 100m LSZH Dca in bobina

Installers pulling horizontal cable runs in office buildings need a dependable, fire-safe solution. The DSIT DANICOM CAT5e UTP cable reel delivers 100 metres of solid-core, low-smoke zero-halogen cabling that meets Euroclass Dca fire safety. The unshielded twisted-pair construction with 24 AWG copper conductors supports Gigabit Ethernet up to 100 MHz, making it a dependable backbone for patch panels, wall outlets, and structured cabling systems.

Key specifications

• Category: CAT5e
• Shielding: UTP (Unshielded Twisted Pair)
• Conductor: Solid bare copper, AWG 24
• Length: 100 m on reel
• Jacket: LSZH (Low Smoke Zero Halogen)
• Fire rating: Euroclass Dca
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801
• Max data rate: 1000 Mbps (Gigabit Ethernet)
• Bandwidth: 100 MHz
• Outer diameter: approx. 5 mm
• Pairs: 4
• Application: Indoor

Why choose it

The LSZH jacket emits very low smoke and no halogen gases in a fire, a crucial safety feature for enclosed spaces like offices, schools, and hospitals. Solid copper conductors provide lower attenuation than stranded wire over long distances, ensuring stable performance for permanent links up to 100 metres. The Dca rating confirms compliance with European fire regulations, simplifying project approvals.

Ideal use cases

• Structured cabling in commercial buildings
• Horizontal runs from patch panel to workstation
• IP camera and VoIP phone installations
• Data centre rack-to-rack connections
• Educational and healthcare facilities requiring LSZH

Good to know

The cable comes on a convenient reel for easy pulling and storage. Solid conductors are intended for permanent installation, not for frequent flexing. For best performance, use with CAT5e-compatible connectors and maintain proper bend radius during installation.
