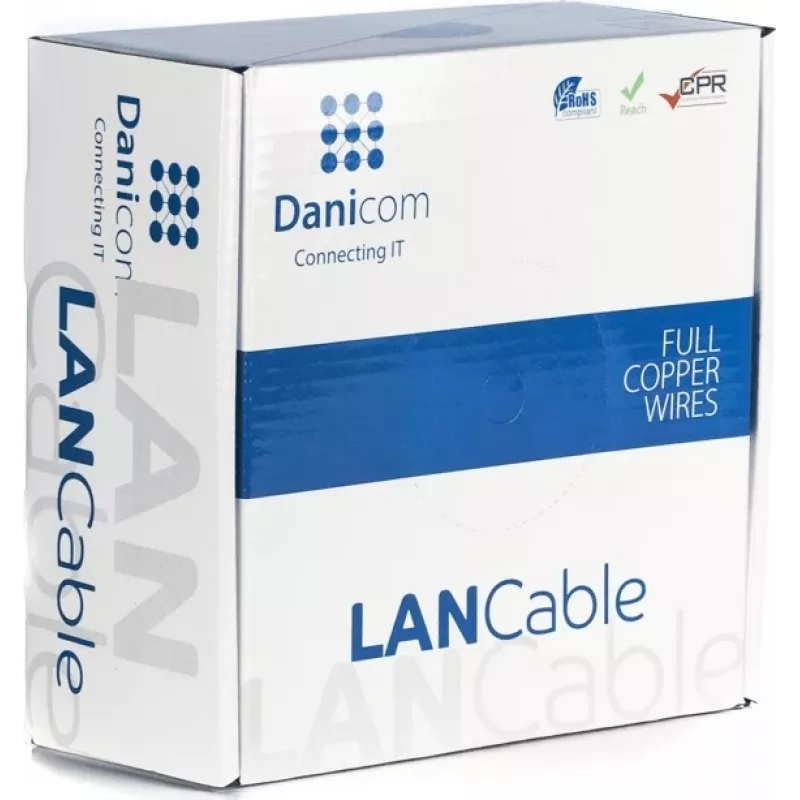

DSIT DANICOM CAT6 UTP 100m cavo conduttore massiccio - LSZH (Dca)

For structured cabling that demands both performance and safety, this CAT6 UTP solid core cable delivers reliable Gigabit Ethernet in a 100-meter reel. Its LSZH jacket with Dca Euroclass rating ensures low smoke and zero halogen emissions, making it a responsible choice for indoor installations.

Advantages

The solid bare copper conductors (23 AWG) provide superior signal integrity and support Power over Ethernet up to PoE++ (IEEE 802.3bt Type 3). With a bandwidth of up to 250 MHz, this cable meets ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards, guaranteeing compatibility with modern network equipment.

Suitable for

• Structured cabling in office buildings, data centers, and residential complexes
• 10/100/1000BASE-T Ethernet networks and 10GBASE-T over shorter distances
• PoE applications such as IP cameras, wireless access points, and VoIP phones
• Installations requiring low smoke and halogen-free materials for fire safety

Key specifications

• Cable standard: CAT6 (Category 6)
• Shielding: UTP (Unshielded Twisted Pair)
• Conductor: Solid bare copper, 23 AWG, 4 twisted pairs
• Length: 100 meters on reel/drum
• Jacket: LSZH (Low Smoke Zero Halogen), Euroclass Dca
• Outer diameter: approx. 6.2–6.5 mm
• Insulation: HDPE (High-Density Polyethylene)
• Frequency: up to 250 MHz
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For permanent links in walls, ceilings, or conduits, this solid core cable is the professional choice. Pair with CAT6 RJ45 connectors and patch panels for a complete, standards-compliant installation.
