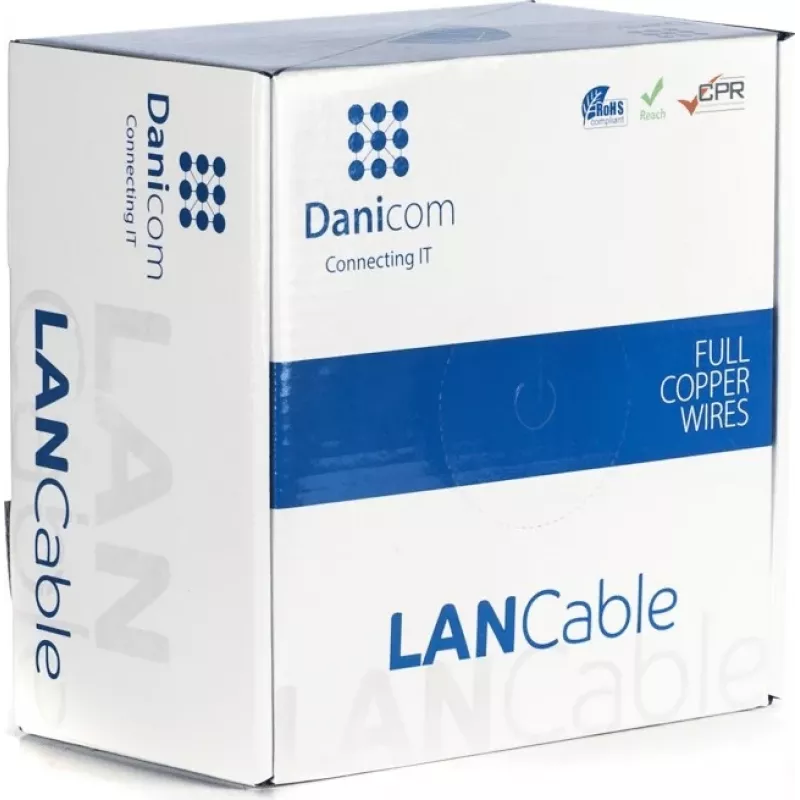

DSIT DANICOM CAT6A S/FTP cavo di installazione 100m con conduttore massiccio - LSZH (Dca)

High-speed network installations demand cabling that can handle 10 Gigabit Ethernet without signal degradation, especially in environments where fire safety is critical. The DSIT DANICOM CAT6A S/FTP cable answers this need with a 100-meter solid conductor design, screened and foiled to reject electromagnetic interference, and a low-smoke zero-halogen jacket rated Dca for enhanced fire performance.

Who is it for

This cable is ideal for professional network installers, data center managers, and IT integrators who require reliable, future-proof structured cabling. It suits fixed indoor installations in offices, industrial buildings, and public spaces where both high bandwidth and strict fire regulations apply.

Main features

• CAT6A performance supporting 10GBASE-T up to 100 meters
• S/FTP shielding: overall braid plus individual foil per pair for superior noise immunity
• Solid bare copper conductors (AWG23) for consistent signal integrity and PoE support
• LSZH jacket with Euroclass Dca rating for low smoke and zero halogen emissions
• Compliant with TIA/EIA-568-C.2, ISO/IEC 11801, and EN 50173
• Supplied on a convenient reel for easy pull-out during installation

Specifications

• Cable category: CAT6A
• Shielding type: S/FTP (Screened Foiled Twisted Pair)
• Conductor type: Solid
• Length: 100 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Euroclass fire rating: Dca
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Bare copper
• Number of pairs: 4
• Wire gauge: AWG23
• Application: Structured cabling, data centers, PoE

Tips

For best performance, maintain the twist rate of each pair up to the termination point and use shielded connectors to preserve the S/FTP grounding. When pulling the cable, avoid exceeding the maximum tensile load to prevent conductor damage.
