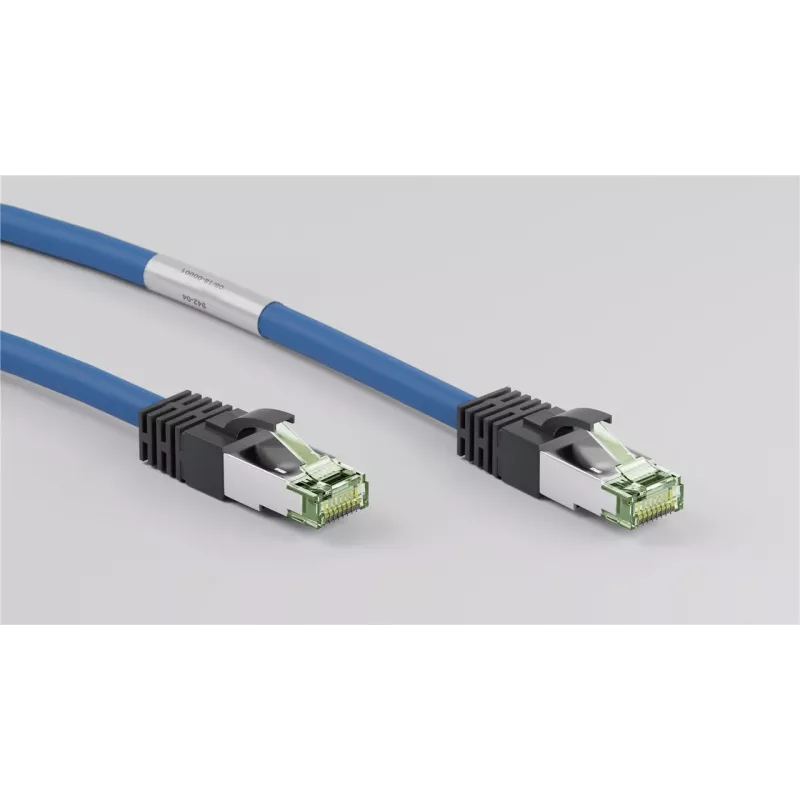

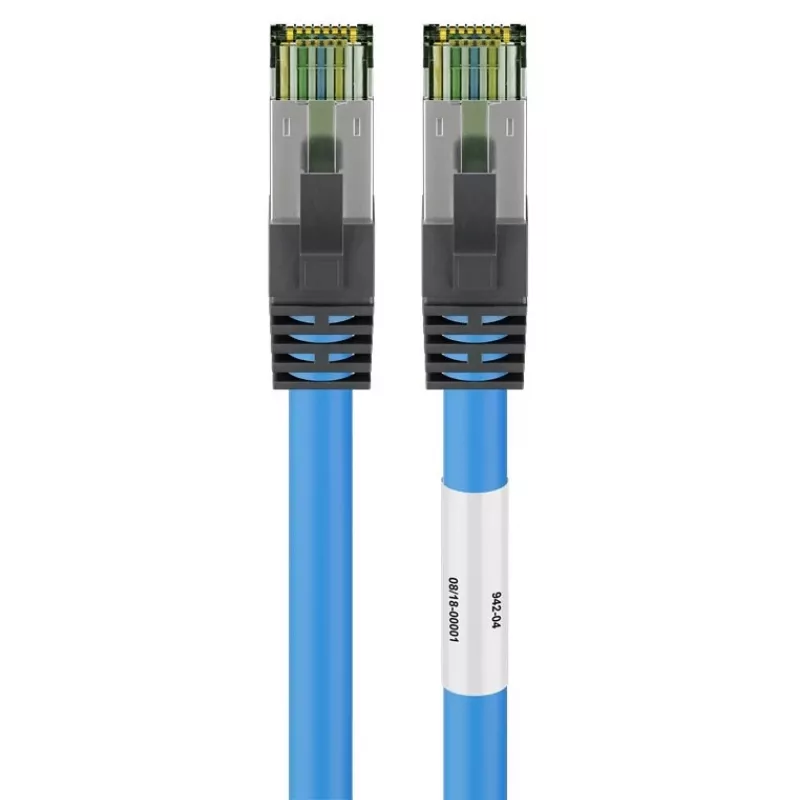

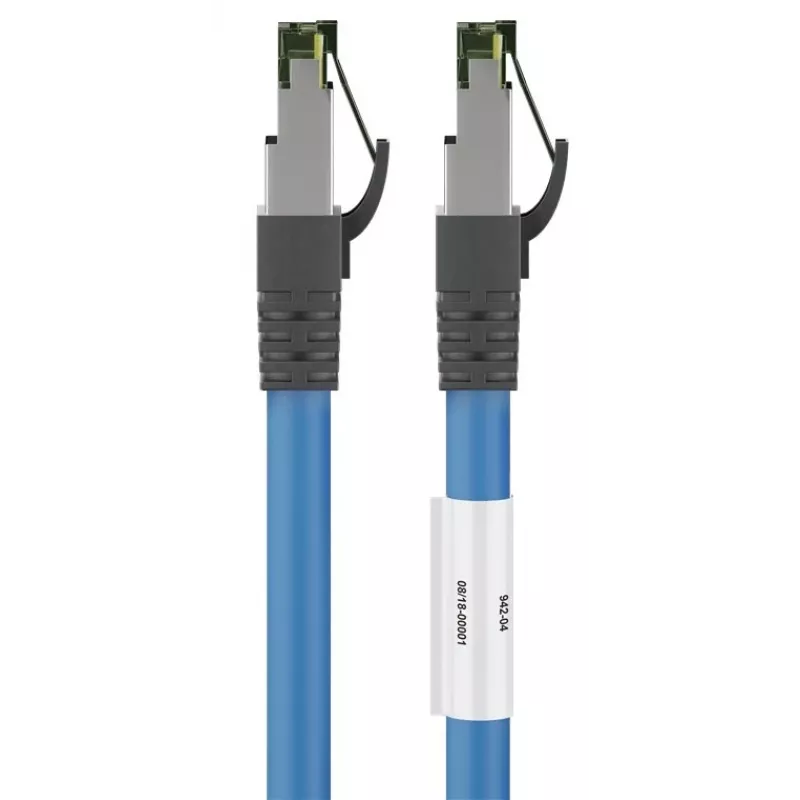

DSIT RJ45 cavo di rete S/FTP PiMF CAT 8 cavo patch blu 0,50m

High-performance CAT 8 patch cable engineered for 40 Gigabit Ethernet, delivering up to 40 Gbit/s over 0.5 meters with a bandwidth of 2000 MHz. The S/FTP shielding with PiMF (Pairs in Metal Foil) construction virtually eliminates crosstalk and electromagnetic interference, ensuring stable, error-free data transmission in dense network environments. Gold-plated RJ45 connectors provide reliable, corrosion-resistant connections, while the stranded copper conductors offer flexibility and durability for frequent re-routing. The blue PVC jacket is robust yet flexible, suitable for data centers, server rooms, and high-speed workstation links.

Advantages

This cable supports the highest Ethernet standards, making it future-proof for 25G/40GBase-T applications. The double shielding (overall braid plus per-pair foil) provides superior noise immunity compared to UTP or F/UTP cables. Backward compatibility with CAT 5e, CAT 6, CAT 6a, and CAT 7 ensures seamless integration with existing infrastructure. PoE support up to PoE++ (IEEE 802.3bt) allows simultaneous data and high-power delivery for devices like pan-tilt-zoom cameras and wireless access points. The 0.5m length reduces clutter and signal attenuation in high-density patching.

Suitable for

• Data centers and server rooms requiring 40Gbps links
• High-performance computing and storage area networks
• 10G/25G/40G Ethernet switch-to-server connections
• PoE++ devices such as high-power access points and PTZ cameras
• Professional AV over IP and broadcast installations

Key specifications

• Cable category: CAT 8 (Class I)
• Shielding: S/FTP (braided overall + foil per pair), PiMF
• Length: 0.50 m
• Bandwidth: 2000 MHz
• Data rate: up to 40 Gbit/s
• Conductor: 26 AWG stranded OFC copper
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Jacket: PVC, blue
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• PoE support: PoE, PoE+, PoE++

Recommendations

For optimal performance, pair this cable with CAT 8 compatible RJ45 jacks and patch panels. Avoid sharp bends and maintain minimum bend radius to preserve signal integrity. Ideal for short, high-speed interconnects in structured cabling systems.
