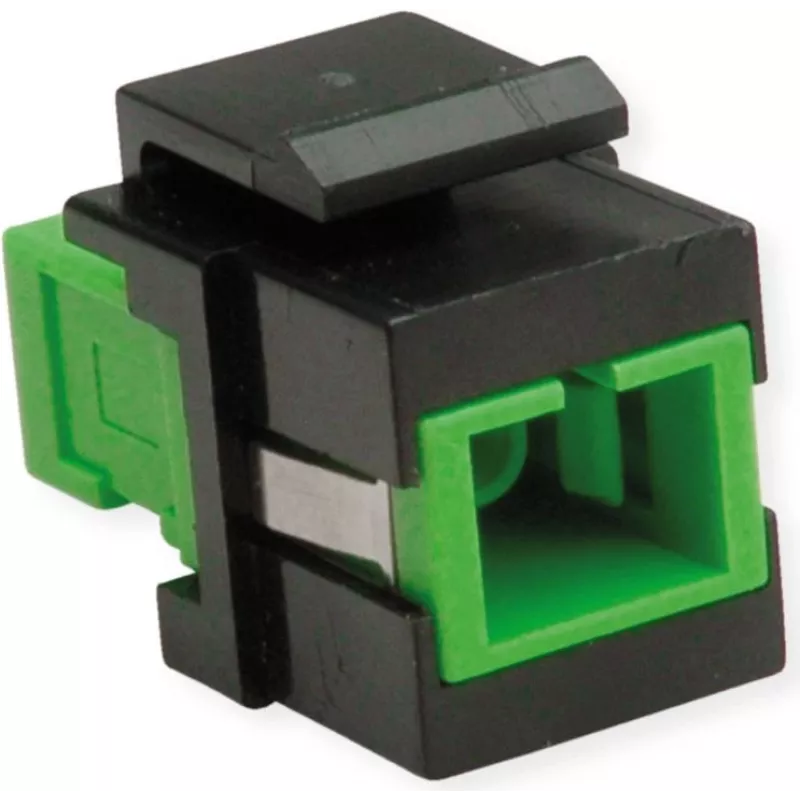

ROLINE Keystone in fibra ottica SC/SC simplex multimodale OM5

The ROLINE Fibre Optic Keystone SC/SC Simplex Multimode OM5 is a high-quality adapter module designed for reliable fibre optic connections in high-speed data networks. This keystone adapter features SC to SC simplex configuration with OM5 multimode fibre support, ensuring optimal performance for data centers, LAN, and SAN environments.

Advantages

Precision-engineered with zirconia ceramic sleeve for low insertion loss (≤0.3 dB) and high return loss (≥30 dB). Durable ABS plastic housing in black color ensures long-lasting performance. Easy installation into standard keystone jack openings (22.5 x 19.5 mm). Includes dust caps for protection.

Suitable for

• High-speed data networks
• Data centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)

Key specifications

• Product Type: Fibre Optic Keystone Adapter
• Connector Type (Port 1): SC
• Connector Type (Port 2): SC
• Fiber Mode: Multimode
• Fiber Grade: OM5
• Number of Fibers: Simplex (1-fiber)
• Adapter Design: Keystone Module
• Sleeve Material: Zirconia Ceramic
• Housing Material: ABS Plastic
• Housing Color: Black
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Mating Cycles Durability: > 500
• Compliance: RoHS, REACH
• Dust Caps Included: Yes

Recommendations

For optimal performance, pair with OM5 multimode fibre cables and ensure proper cleaning of connectors before mating.
