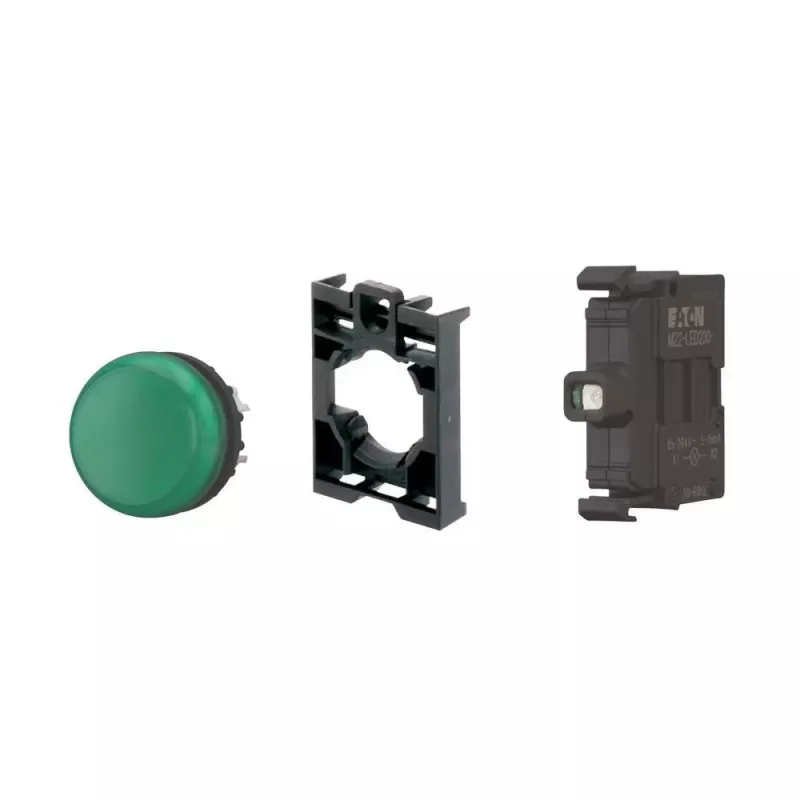

Eaton M22-L-G-LED-BVP luce LED verde, 22,5 mm, 12-30 V AC/DC, IP66/IP67/IP69K

For control panels that demand uncompromising visibility and longevity, the Eaton M22-L-G-LED-BVP stands apart from conventional pilot lights. Its integrated LED light source eliminates the hassle of bulb replacements, delivering over 100,000 hours of maintenance-free operation. The flush, round lens in vibrant green ensures clear status indication even in brightly lit industrial environments. With a rugged plastic bezel and front protection up to IP69K, this indicator light withstands high-pressure washdowns, dust, and temporary submersion, making it a reliable choice for food processing, packaging, and outdoor machinery.

Highlights

• Integrated green LED with >100,000 hours lifespan – no bulb changes
• Wide voltage range 12-30 V AC/DC for flexible integration
• Front protection IP66, IP67, IP69K – dust-tight and waterproof
• Standard 22.5 mm mounting diameter fits common panel cutouts
• Screw terminals accept up to 2 x 2.5 mm² solid wire
• Operating temperature from -25°C to +70°C for harsh environments

In daily use

Installation is straightforward: insert the device into a 22.5 mm panel hole, secure it with the included nut, and connect your supply wires to the screw terminals. The continuous illumination provides a steady green signal for status indication, machine readiness, or process monitoring. Thanks to its low current consumption of approximately 15 mA at 24 V, it adds minimal load to your control circuit. The flush lens design prevents accidental damage and simplifies cleaning.

Full specifications

• Product type: Indicator light / pilot light
• Series: M22
• Light colour: Green
• Light source: LED
• Operating voltage: 12-30 V AC/DC
• Mounting diameter: 22.5 mm
• Terminal type: Screw terminals
• Front protection rating: IP66, IP67, IP69K
• Rear protection rating: IP20
• Lens shape: Flush, round
• Bezel material: Plastic
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +80°C
• LED lifespan: >100,000 hours
• Current consumption: approx. 15 mA at 24 V
• Max. terminal capacity: 2 x 2.5 mm² (solid) / 2 x 1.5 mm² (flexible)
• Standards: IEC/EN 60947-5-1, UL, CSA
• Illumination type: Continuous light

Final note

With its robust construction and long-life LED, the Eaton M22-L-G-LED-BVP is a dependable choice for demanding industrial signalling applications.
