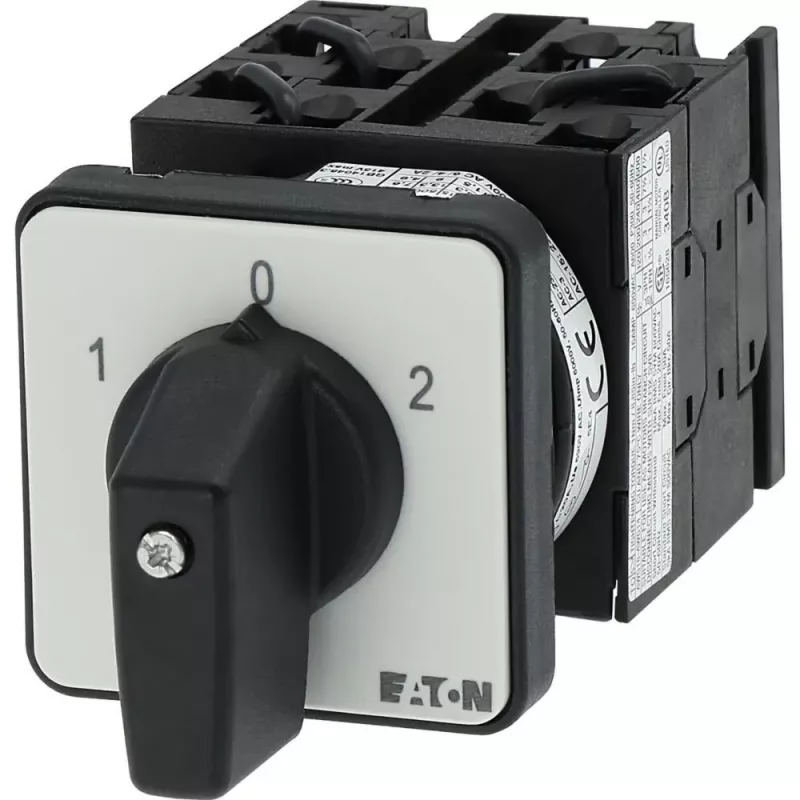

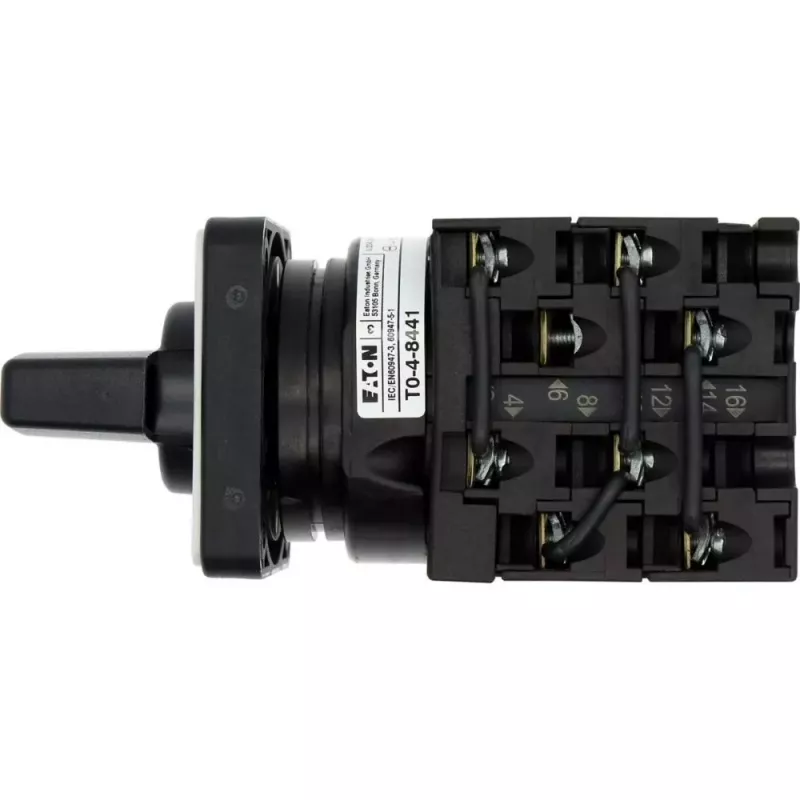

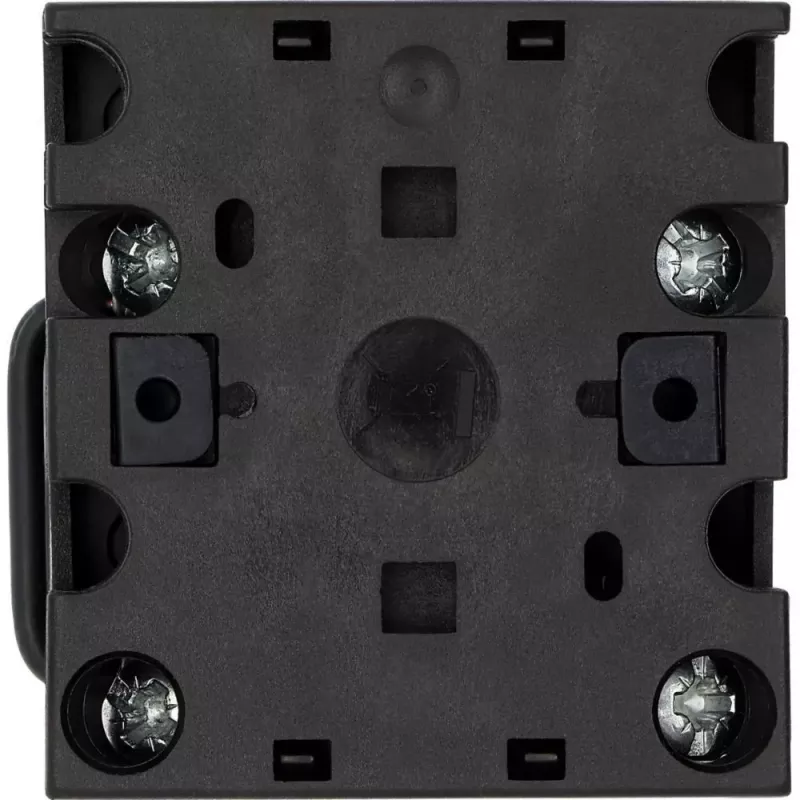

Eaton T0-4-8441/E interruttore a camme ON-OFF tripolare, 20A, 690V, IP65, nero/bianco 043595

With a rated uninterrupted current of 20 A and an operational voltage up to 690 V AC, this Eaton T0-4-8441/E cam switch delivers robust performance for industrial control applications. Its 3-pole ON-OFF switching function and 90° switching angle provide clear, reliable operation.

Overview

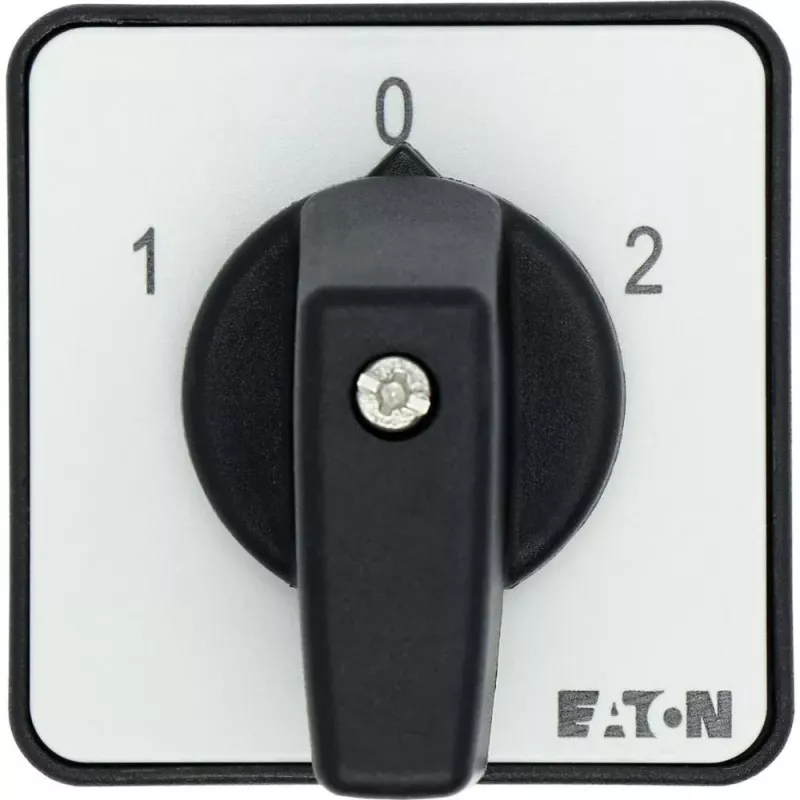

The Eaton T0-4-8441/E is a 3-pole main switch with a compact design for front mounting with central fixing (22.5 mm hole). It features a black actuator and a white front plate, offering a clean, professional appearance. The switch is rated for AC-23A duty at 5.5 kW (400 V) and AC-3 duty at 3.0 kW (400 V).

What stands out

• High front protection degree IP65, suitable for demanding environments.
• Rated impulse withstand voltage of 6 kV ensures resilience against voltage surges.
• Screw terminals accept solid or stranded conductors from 1 to 2.5 mm².
• Wide ambient operating temperature range from -25 to +50 °C.

Technical details

• Number of poles: 3
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Switching function: ON-OFF (0-1)
• Switching angle: 90°
• Number of switching positions: 2
• Mounting type: Front mounting, central fixing (22.5 mm hole)
• Front protection degree: IP65
• Terminal protection degree: IP20
• Rated operational power AC-23A (400 V): 5.5 kW
• Rated operational power AC-3 (400 V): 3.0 kW
• Rated short-time withstand current (Icw): 320 A (1 s)
• Rated impulse withstand voltage (Uimp): 6 kV
• Connection type: Screw terminals
• Terminal capacity: 1-2.5 mm² (solid/stranded)
• Actuator color: Black
• Front plate color: White
• Standards: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C

Our verdict

A reliable and robust cam switch for industrial control panels, offering high current rating and IP65 front protection in a compact form factor.
