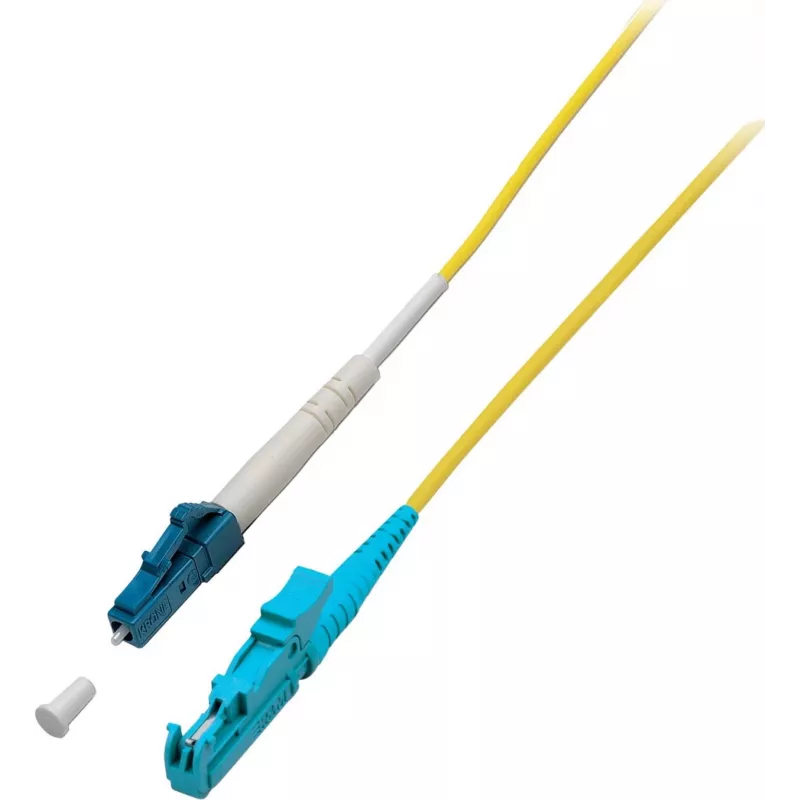

EFB-Elektronik cavo patch fibra ottica simplex E2000 APC su LC UPC OS2 3m giallo LSZH 9/125µm O0863.3

Experience exceptional signal integrity with a return loss of ≥60 dB on the APC connector, ensuring minimal reflections for high-speed single-mode networks. This EFB-Elektronik simplex patch cable features an E2000 APC connector on one end and an LC UPC connector on the other, both factory-terminated and tested for reliable performance.

Overview

Engineered for demanding fiber optic links, this 3-meter OS2 single-mode patch cable offers ultra-bend-insensitive fiber with a 9µm core and 125µm cladding, ideal for tight bends and high-density patching. The yellow LSZH jacket is flame-retardant and low-smoke, enhancing safety in indoor installations. With a typical insertion loss of ≤0.3 dB, it maintains signal quality across the link.

What stands out

• E2000 APC connector with integrated dust shutter and spring-loaded protective cap
• LC UPC connector for compact, high-density connections
• Ultra-bend-insensitive OS2 fiber reduces bend-induced loss
• LSZH jacket meets stringent fire safety regulations
• 3.0mm diameter balances durability and flexibility

Technical details

• Cable type: Simplex fiber optic patch cable
• Fiber mode: Single-mode OS2
• Connector A: E2000 APC (Angled Physical Contact)
• Connector B: LC UPC (Ultra Physical Contact)
• Length: 3 meters
• Fiber core/cladding: 9/125 µm
• Cable diameter: 3.0 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Yellow
• Insertion loss (typical): ≤0.3 dB
• Return loss: ≥60 dB (APC), ≥50 dB (UPC)
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, CE

Our verdict

This EFB-Elektronik patch cable delivers premium performance with its E2000 APC connector and bend-insensitive fiber, making it a reliable choice for critical single-mode links in enterprise and data center environments.
