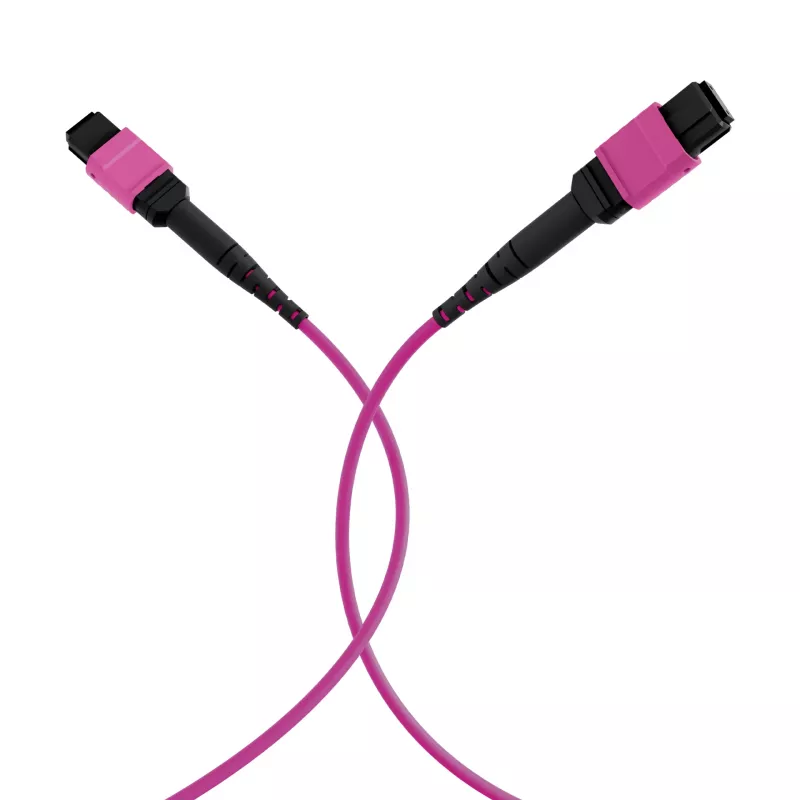

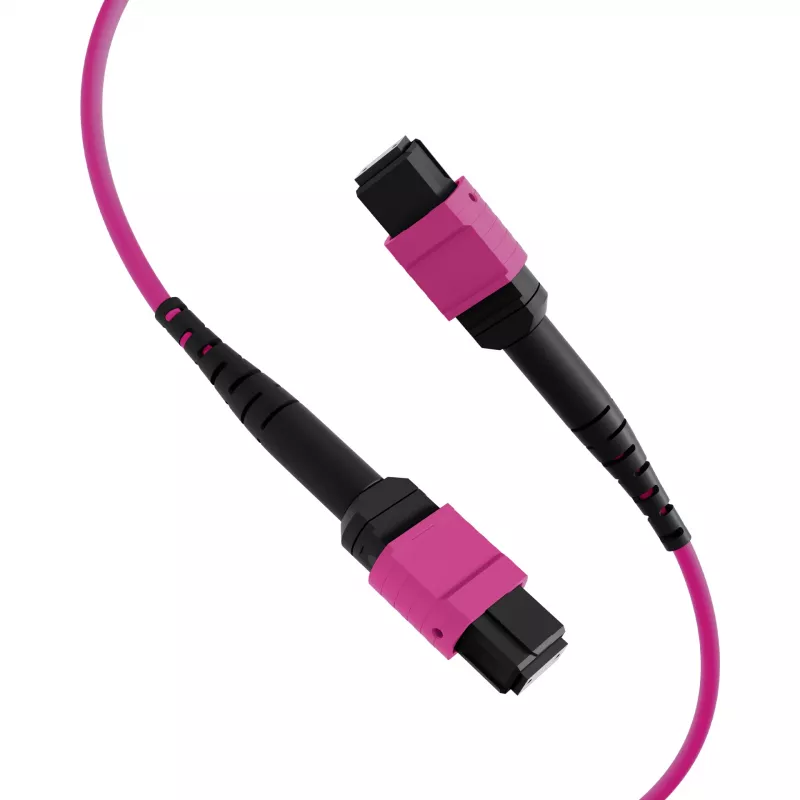

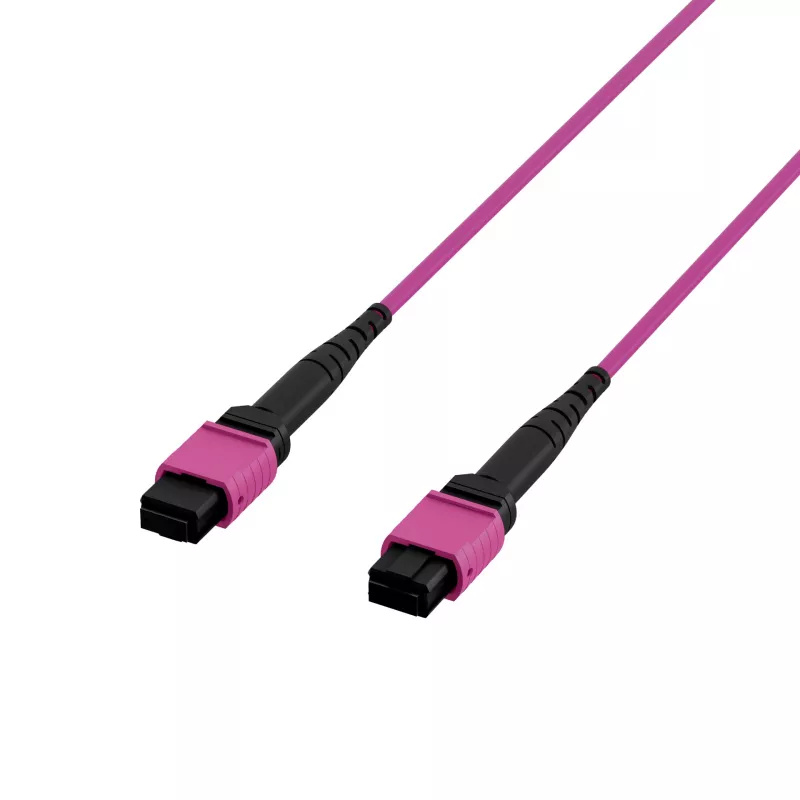

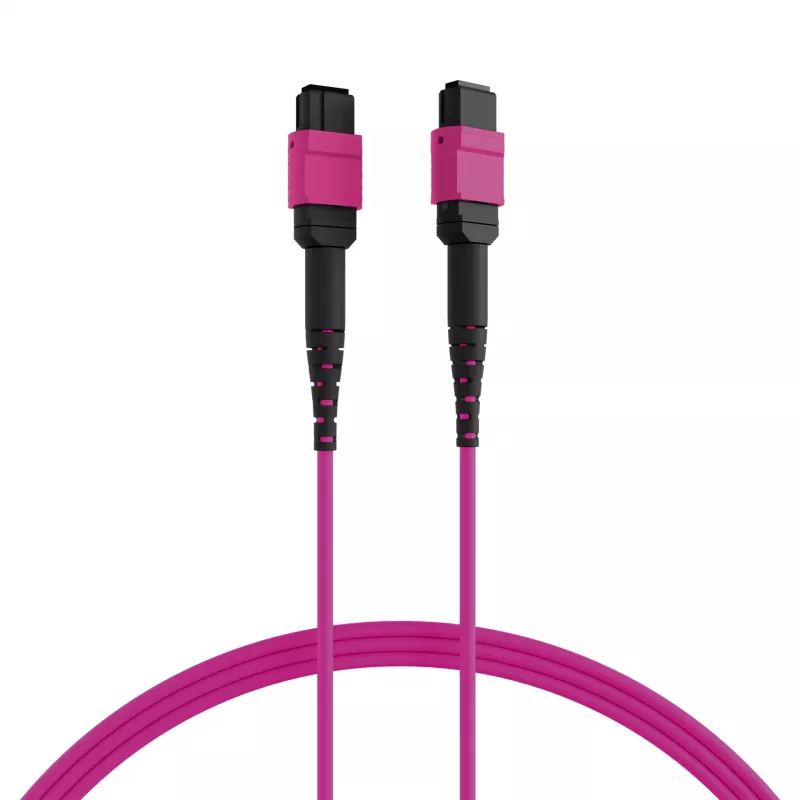

EFB ELEKTRONIK cavo patch MPO-PLUS(F)-MPO-PLUS(F) OM4 12 fibre Tipo B LSZH viola heather 2 m

The EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) Patch Cable is a high-performance fiber optic patch cord designed for demanding data center and high-density network environments. With 12 multimode OM4 fibers, MPO-PLUS female connectors on both ends, and Type B polarity, this cable ensures reliable, high-speed data transmission over short distances. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the heather violet color aids in easy identification.

Advantages

This patch cable offers exceptional performance with low insertion loss (0.35 dB max) and high return loss (20 dB min), ensuring signal integrity. The OM4 fiber type supports high-bandwidth applications up to 40 Gbps and beyond, making it ideal for 40G/100G Ethernet and Fibre Channel. The LSZH jacket reduces toxic smoke and fumes in case of fire, complying with strict safety standards. The MPO-PLUS connectors feature zirconia ceramic ferrules for precise alignment and durability.

Suitable for

• Data center cabling infrastructure
• Storage Area Networks (SAN)
• High-density fiber optic networks
• 40G/100G Ethernet and Fibre Channel applications
• Backbone and horizontal cabling in telecom rooms

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Fiber Count: 12 Fibers
• Connector A: MPO-PLUS Female
• Connector B: MPO-PLUS Female
• Polarity: Type B (Cross-over)
• Length: 2 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Color: Heather Violet
• Ferrule Material: Zirconia Ceramic
• Insertion Loss: ≤ 0.35 dB
• Return Loss: ≥ 20 dB
• Operating Wavelengths: 850 nm / 1300 nm
• Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1300nm
• Operating Temperature: -10°C to +70°C
• Storage Temperature: -20°C to +85°C
• Standards: RoHS, TIA/EIA-568-C.3, IEC 61754-7

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate polarity management in your network design. This cable is not recommended for outdoor use; for outdoor installations, select a cable with an outdoor-rated jacket.
