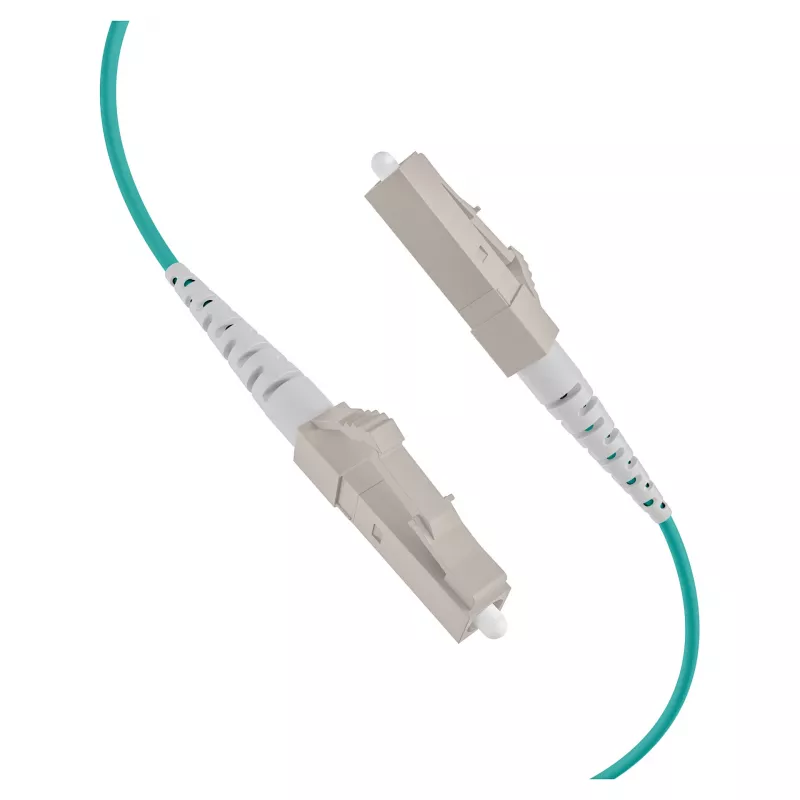

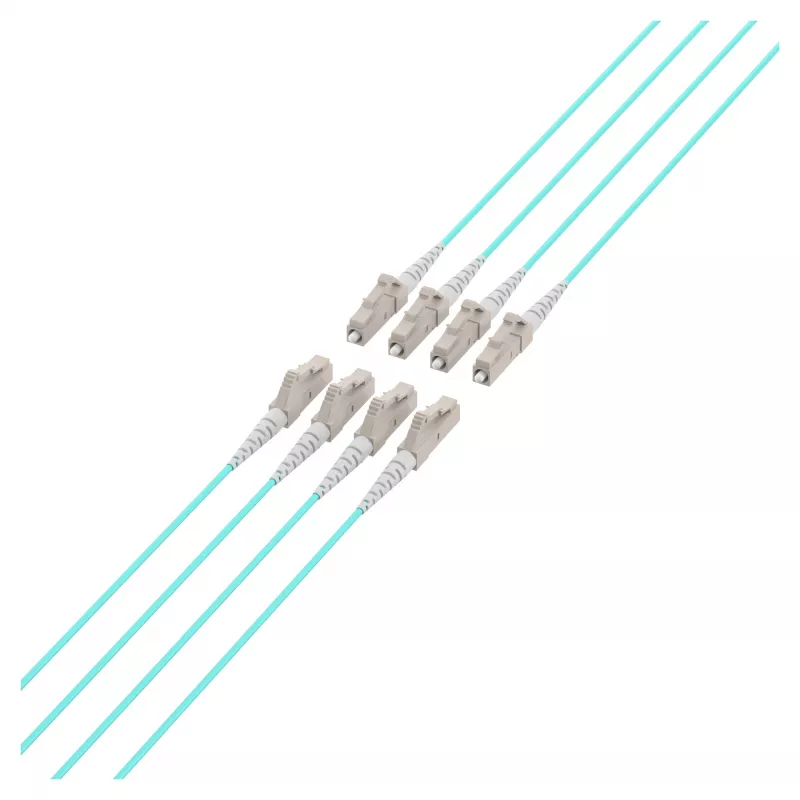

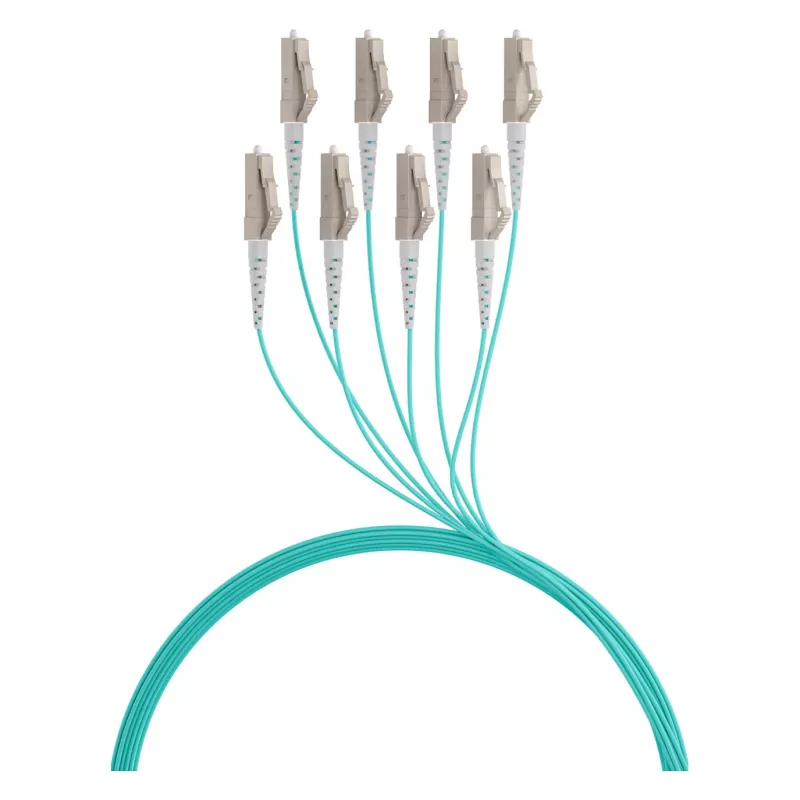

EFB-ELEKTRONIK Cavo trunk U-DQ ZN BH OM3 8G 1x8 LC-LC 30m Dca LSZH

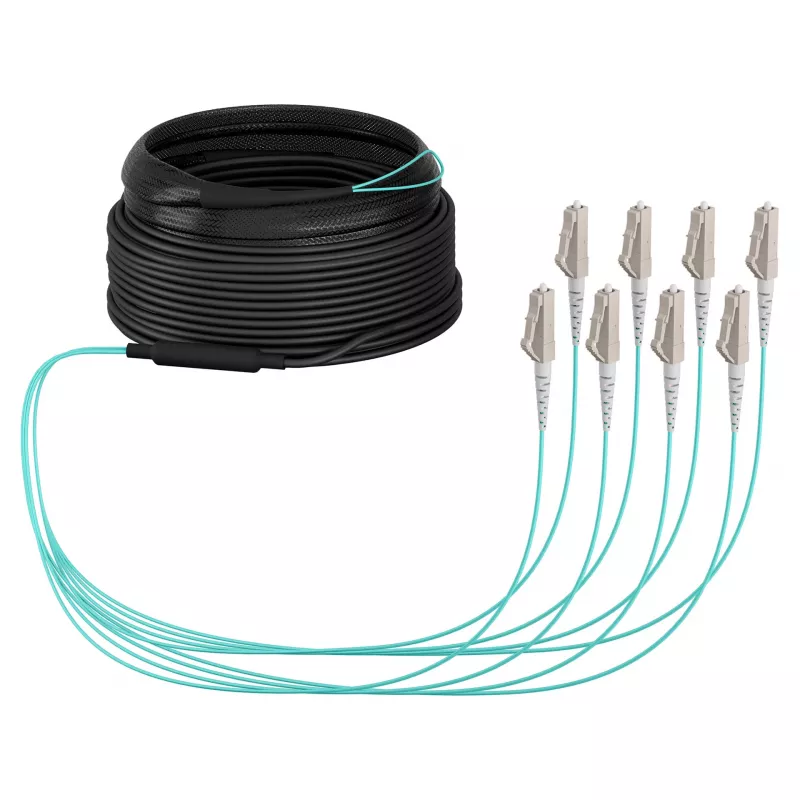

The EFB-ELEKTRONIK Trunk Cable O8322S30OM3 is a high-performance fiber optic trunk cable designed for demanding data center and enterprise network environments. With 8 multimode OM3 fibers and LC duplex connectors, it supports high-speed data transmission up to 40/100 Gigabit Ethernet over distances up to 100 meters. The cable features a universal construction (U-DQ ZN BH) with a low smoke zero halogen (LSZH) jacket, ensuring safety and compliance with fire regulations (CPR Dca). Its aqua-colored jacket provides easy identification for OM3 fiber.

Advantages

This trunk cable offers reliable, high-bandwidth connectivity for critical network infrastructure. The OM3 fiber optimizes performance for 10 Gigabit Ethernet up to 300 meters and 40/100 Gigabit Ethernet up to 100 meters. The LSZH jacket minimizes toxic smoke and corrosive gas emissions in case of fire, making it suitable for indoor installations. Pre-terminated with LC duplex connectors, it reduces installation time and ensures consistent low insertion loss (≤0.3 dB per connector) and high return loss (≥30 dB).

Suitable for

• Data centers and server rooms
• Enterprise networks and local area networks (LAN)
• Storage area networks (SAN)
• High-speed backbone connections
• Telecommunications and IT infrastructure

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode OM3 (50/125 µm)
• Number of Fibers: 8
• Connector Type: LC Duplex (4x on each end)
• Cable Length: 30 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Fire Rating (CPR): Dca
• Jacket Color: Aqua
• Wavelengths: 850 nm, 1300 nm
• Insertion Loss: ≤0.3 dB per connector
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60794, ISO/IEC 11801, EN 50173, TIA/EIA-568-C.3
• RoHS Compliant

Recommendations

For optimal performance in high-speed data center environments, pair this trunk cable with compatible LC patch panels and transceivers. Ensure proper cable management to maintain bend radius and avoid signal degradation. This cable is ideal for structured cabling systems requiring reliable, high-bandwidth connections.
