EFB Elektronik I-V(ZN)H 1E 9/125 OS2 Simplex 2,9 mm Cavo in fibra ottica giallo

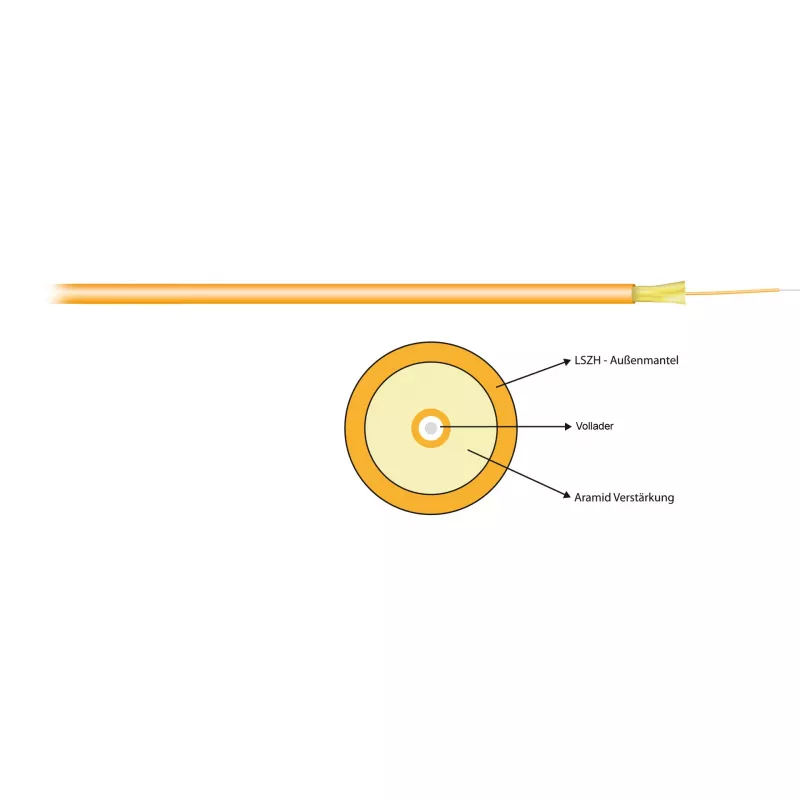

The EFB Elektronik I-V(ZN)H 1E 9/125 OS2 simplex 2.9 mm yellow fiber optic cable is a high-quality, single-mode cable designed for reliable data transmission in indoor and outdoor environments. With a 9/125 µm core/cladding and OS2 performance, it supports long-distance, high-bandwidth applications. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the yellow color facilitates easy identification.

Advantages

This cable offers low attenuation (≤0.35 dB/km at 1310 nm, ≤0.22 dB/km at 1550 nm) for excellent signal integrity. Its dielectric, non-metallic construction provides immunity to electromagnetic interference. The robust design includes high tensile strength (150 N installation) and crush resistance (1000 N/10cm), ensuring durability during installation and operation.

Suitable for

• FTTH (Fiber to the Home) networks
• Data center backbone cabling
• Telecommunication infrastructure
• LAN and WAN connections
• Security and surveillance systems

Key specifications

• Fiber type: Single-mode OS2 (9/125 µm)
• Fiber count: 1 (simplex)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable outer diameter: 2.9 mm
• Attenuation: ≤0.35 dB/km (1310 nm), ≤0.22 dB/km (1550 nm)
• Minimum bending radius: 58 mm (installation), 29 mm (operation)
• Operating temperature: -20°C to +70°C
• Standards: IEC 60794-1, ISO/IEC 11801, EN 50173-1, ITU-T G.652.D

Recommendations

For optimal performance, use with appropriate OS2 connectors (e.g., LC, SC) and ensure proper installation practices. This cable is sold per meter; order the required length for your project.
