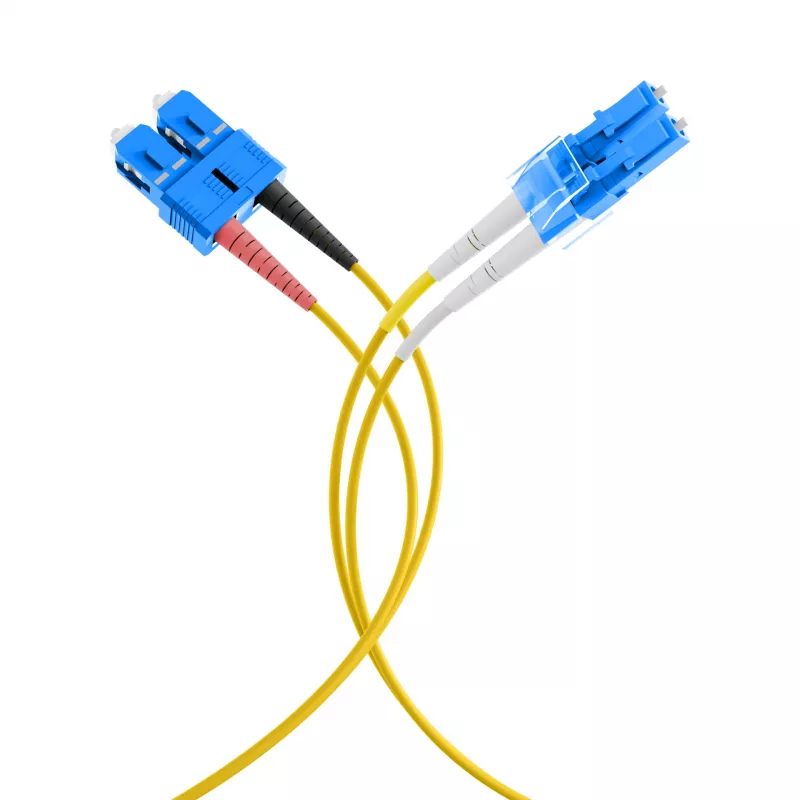

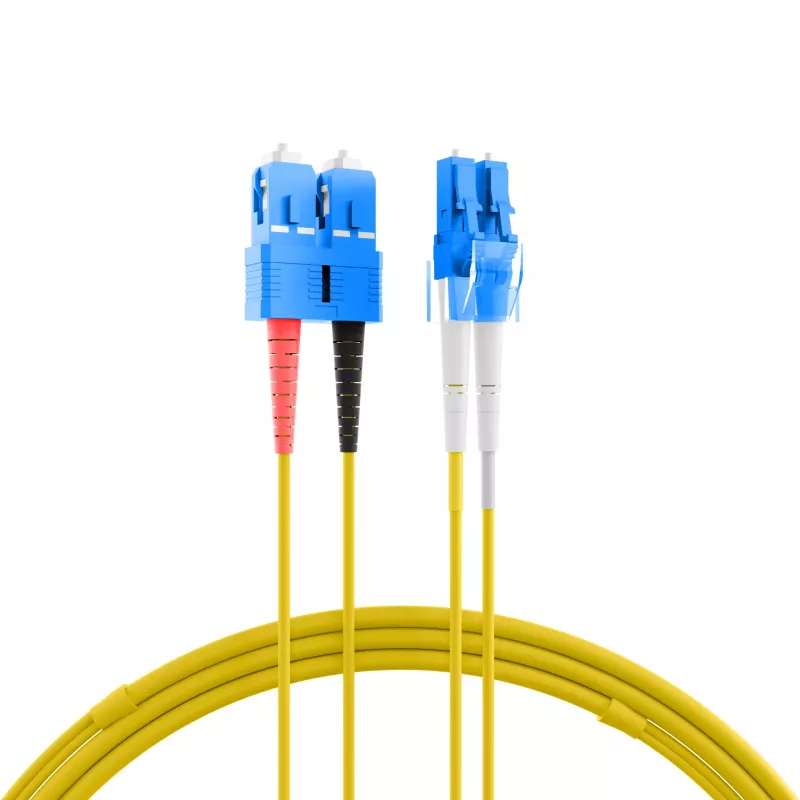

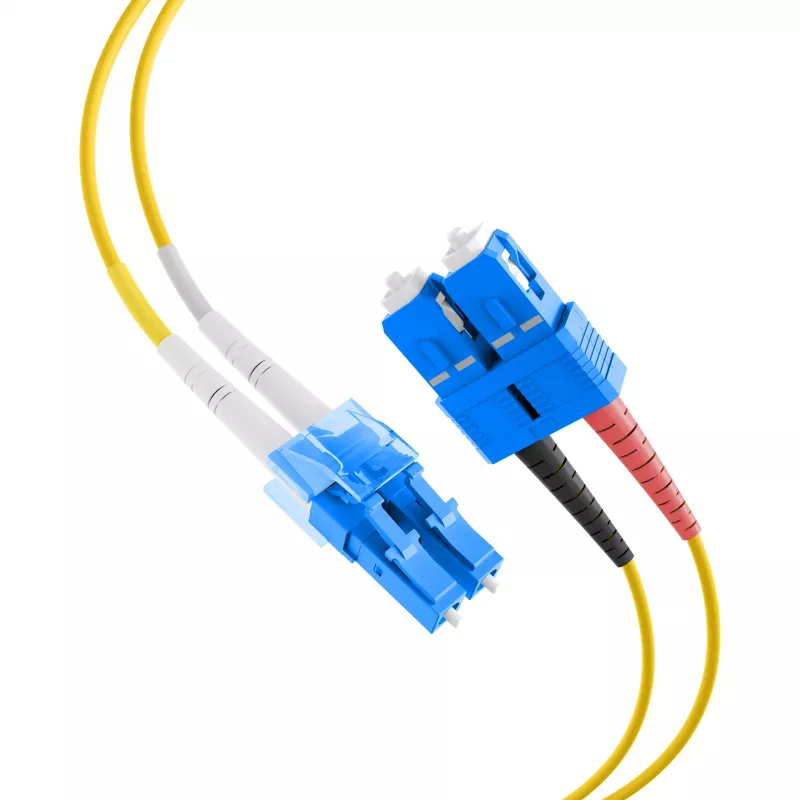

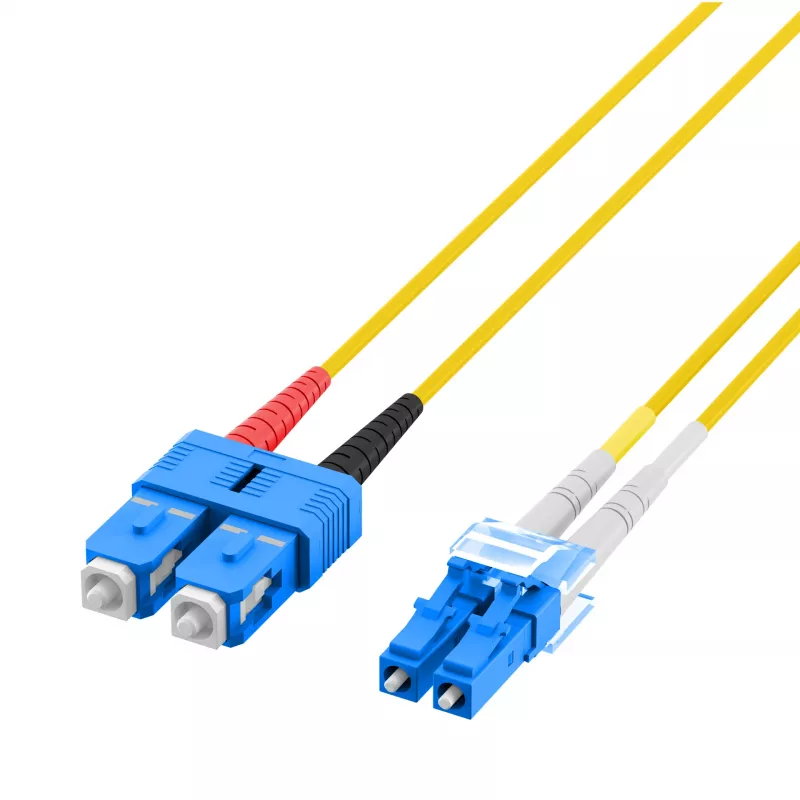

EFB Elektronik IPL-DF-LCUSCU-2-0100 - 1 m - OS2 - LC - SC cavo patch in fibra ottica duplex

The EFB Elektronik IPL-DF-LCUSCU-2-0100 is a high-quality duplex fiber optic patch cable designed for reliable single-mode transmission in data centers, LAN, SAN, and telecommunication networks. With a length of 1 meter and OS2 fiber class, this cable ensures low insertion loss and high return loss for optimal performance.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes in case of fire. The ceramic ferrule and UPC polish ensure stable connections and minimal back reflection.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunication networks
• FTTx and premise cabling

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber mode: Single-mode
• Fiber class: OS2
• Connector A: LC/UPC
• Connector B: SC/UPC
• Length: 1 m (3.28 ft)
• Fiber count: Duplex (2 fibers)
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Jacket material: LSZH
• Jacket color: Yellow
• Cable diameter: 2.0 mm
• Insertion loss (typical): ≤0.3 dB
• Return loss (typical): ≥50 dB
• Ferrule material: Ceramic
• Polish type: UPC
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-speed data transmission up to 10 Gbps and beyond, supporting wavelengths of 1310 nm and 1550 nm.
