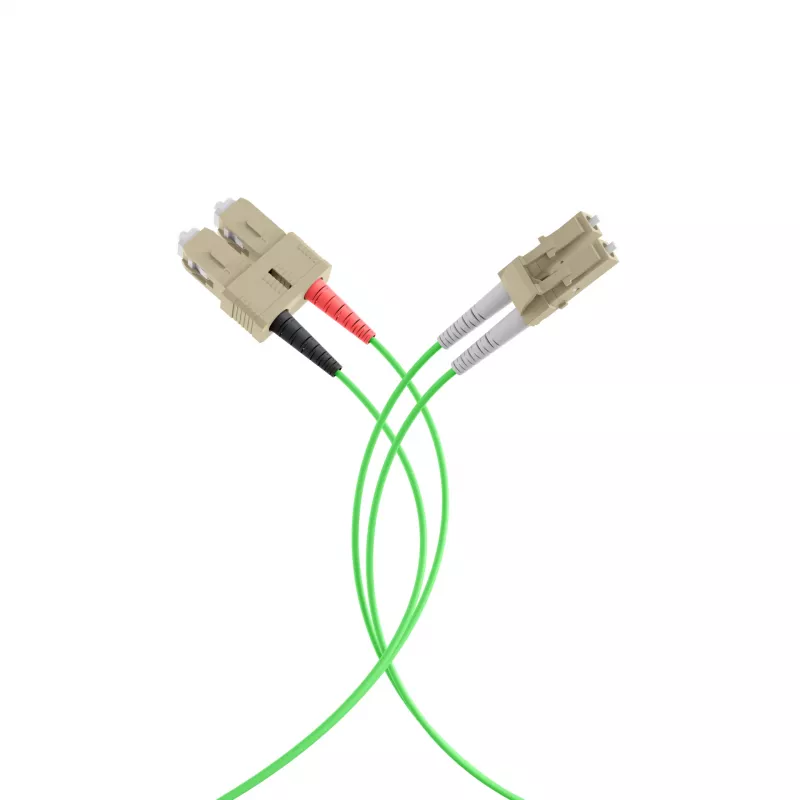

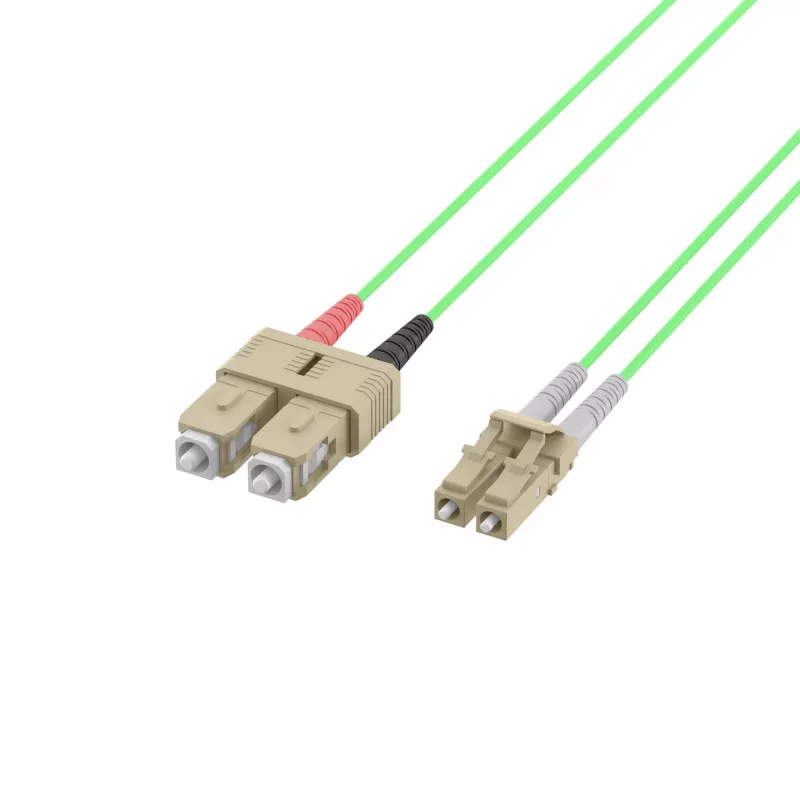

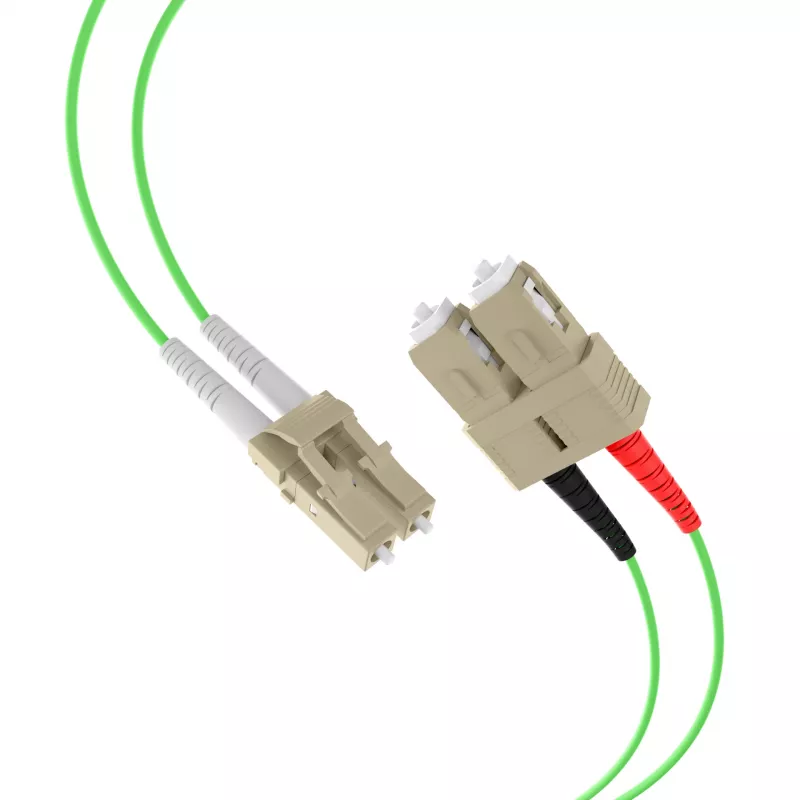

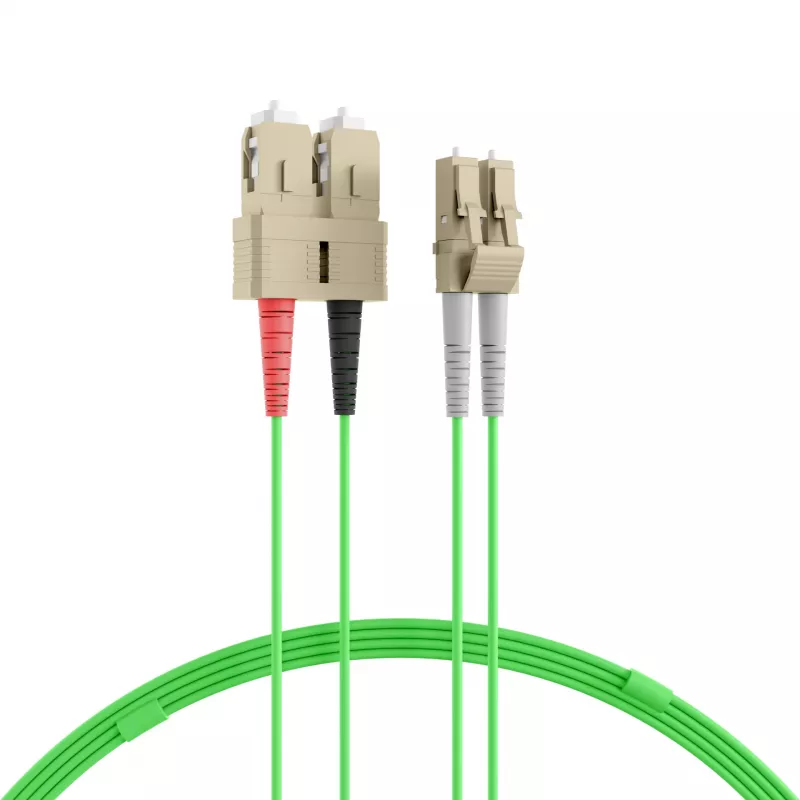

EFB Elektronik IPL-DR-LCUSCU-5-0050 Cavo patch in fibra ottica, 0,5 m, OM5, LC su SC, duplex, LSZH, verde lime

The EFB Elektronik IPL-DR-LCUSCU-5-0050 is a high-performance fiber optic patch cable designed for reliable data transmission in modern networks. With OM5 wideband multimode fiber (WBMMF), it supports multiple wavelengths for enhanced bandwidth and future-proof connectivity. This 0.5-meter duplex cable features LC to SC connectors, a lime green LSZH jacket, and zipcord construction, making it ideal for data centers, enterprise networks, and high-speed applications.

Advantages

OM5 fiber enables simultaneous transmission over multiple wavelengths, increasing capacity without additional fibers. LSZH jacket ensures safety in confined spaces by emitting low smoke and no halogen. Duplex design supports bidirectional communication, and the compact 0.5 m length reduces cable clutter in patch panels.

Suitable for

• Data center interconnects
• Enterprise network patching
• High-speed fiber optic links (10/40/100 Gbps and beyond)
• OM5-compatible transceivers

Key specifications

• Connector A: LC Duplex
• Connector B: SC Duplex
• Fiber Type: OM5 Multimode (50/125 µm)
• Cable Length: 0.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Lime Green
• Cable Construction: Zipcord
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 30 dB (typical)
• Attenuation at 850 nm: ≤ 2.3 dB/km
• Attenuation at 953 nm: ≤ 2.3 dB/km
• Bandwidth (EMB) at 850 nm: 4700 MHz·km
• Bandwidth (EMB) at 953 nm: 2700 MHz·km
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793-2-10 Type A1a.4, TIA-492AAAE, ISO/IEC 11801 OM5

Recommendations

For optimal performance, pair this cable with OM5-rated transceivers and ensure clean connector end-faces. Ideal for short-reach high-bandwidth applications within racks or between adjacent equipment.
