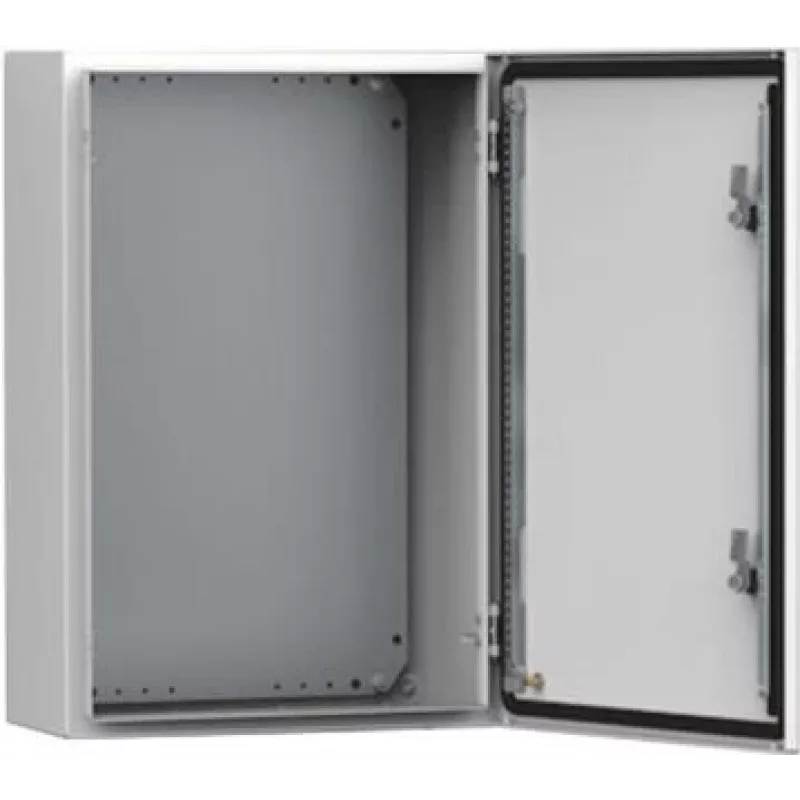

Eldon nVent Serie MAS Quadro a parete 600x400x155mm RAL 7035 grigio chiaro IP55 IK10

The Eldon nVent MAS0604015R5 is a robust wall-mounted enclosure from the MAS Series, designed for industrial electrical control and automation applications. Manufactured from high-quality mild steel with a powder-coated finish in RAL 7035 light grey, this enclosure offers reliable protection for your electrical components in demanding environments.

Advantages

This enclosure provides exceptional durability and protection with an IP55 rating against dust and water jets, and IK10 impact resistance. The reversible single door with a 130° opening angle allows flexible installation and easy access. The included galvanized steel mounting plate and bottom gland plate simplify installation and cable management.

Suitable for

• Industrial electrical control panels
• Automation systems
• Distribution boards
• Machine control enclosures

Key specifications

• External dimensions (H x W x D): 600 x 400 x 155 mm
• Material: Mild Steel, 1.2 mm body and door thickness
• Protection: IP55, IK10
• Door: Single door, reversible, 130° opening angle
• Lock: 3mm double-bit lock
• Finish: Powder coated, RAL 7035 light grey
• Mounting plate: Galvanized steel, included
• Gland plate: Bottom gland plate, included
• Certifications: CE, UL 508A, cUL, EAC, RoHS, REACH

Recommendations

For optimal installation, ensure adequate clearance for door opening and cable entry. Use appropriate cable glands for the bottom gland plate. This enclosure is suitable for indoor and outdoor use where protection against dust and water is required.
