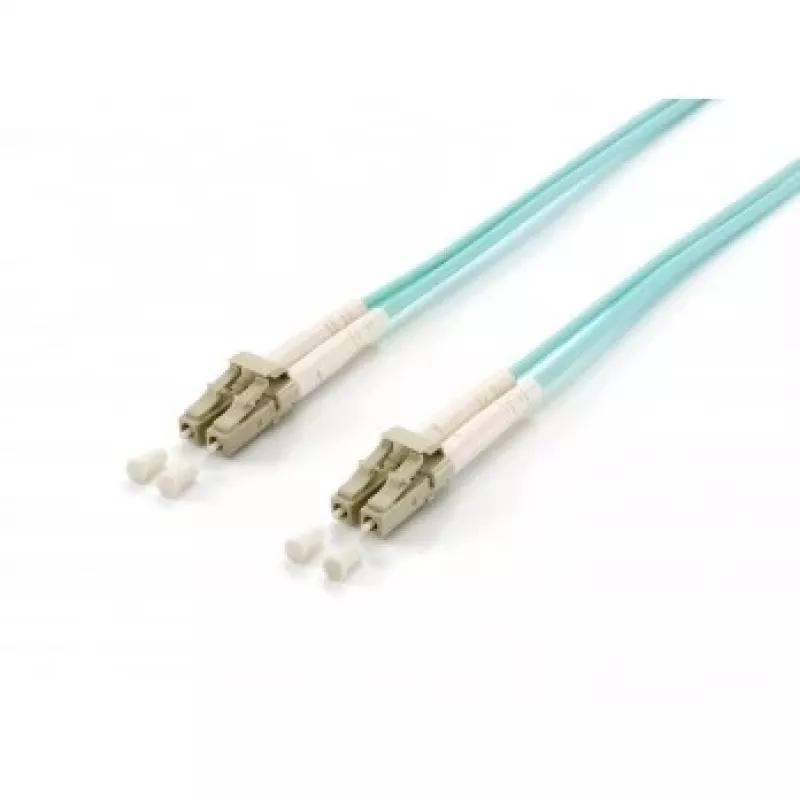

Equip cavo patch in fibra ottica LC-LC OM3 3m multimodale duplex turchese LSZH

The Equip LC-LC Fiber Optic Patch Cable is a high-performance multimode duplex cable designed for reliable data transmission in demanding network environments. With OM3 grade fiber and LC connectors on both ends, this 3-meter cable supports 10 Gigabit Ethernet up to 300 meters, making it ideal for data centers, LAN, SAN, and FTTx applications. The turquoise LSZH jacket ensures safety and easy identification.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB) for optimal signal integrity. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety in enclosed spaces. Duplex design allows simultaneous bidirectional communication.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber to the x (FTTx) deployments

Key specifications

• Connector Type: LC to LC
• Fiber Type: Multimode OM3
• Cable Length: 3.00 m
• Cable Structure: Duplex
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Turquoise
• Maximum Data Rate: 10 Gbps
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure clean and properly terminated connectors. Store in a dry, dust-free environment when not in use.
