Equip patch panel 16 porte Cat.5e non schermato, nero

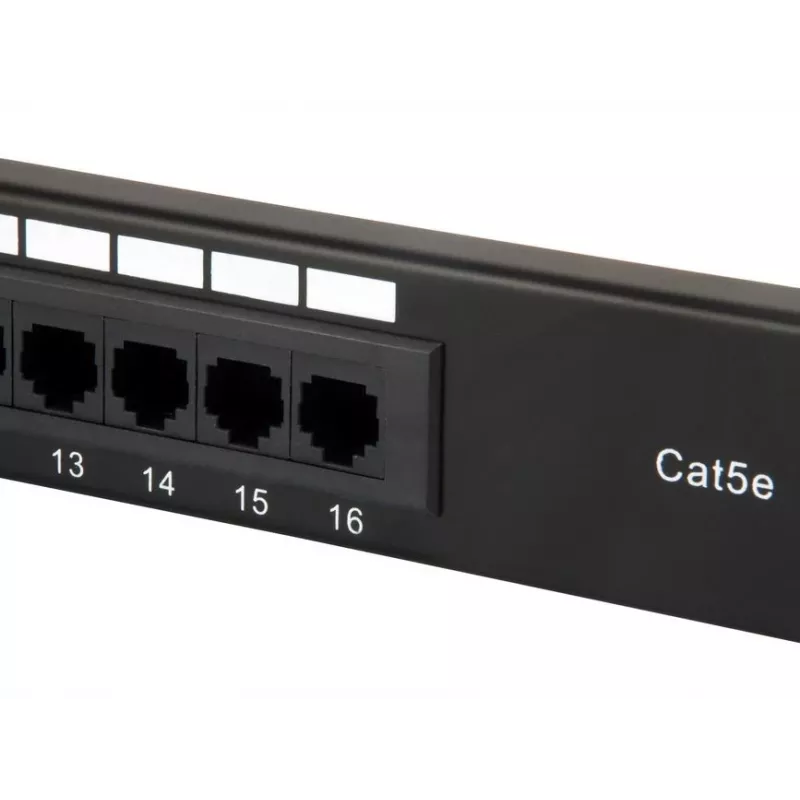

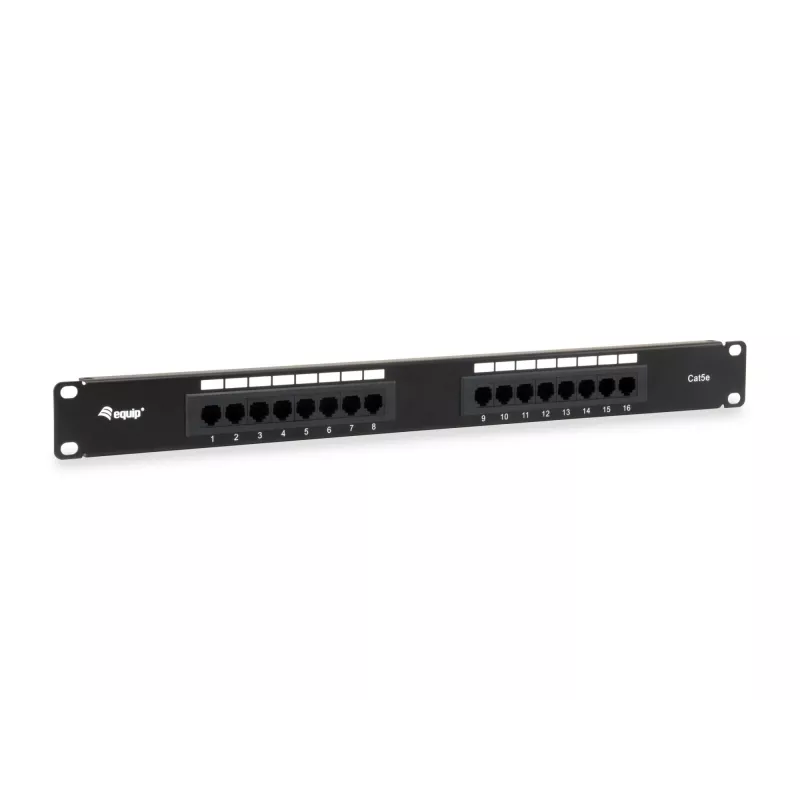

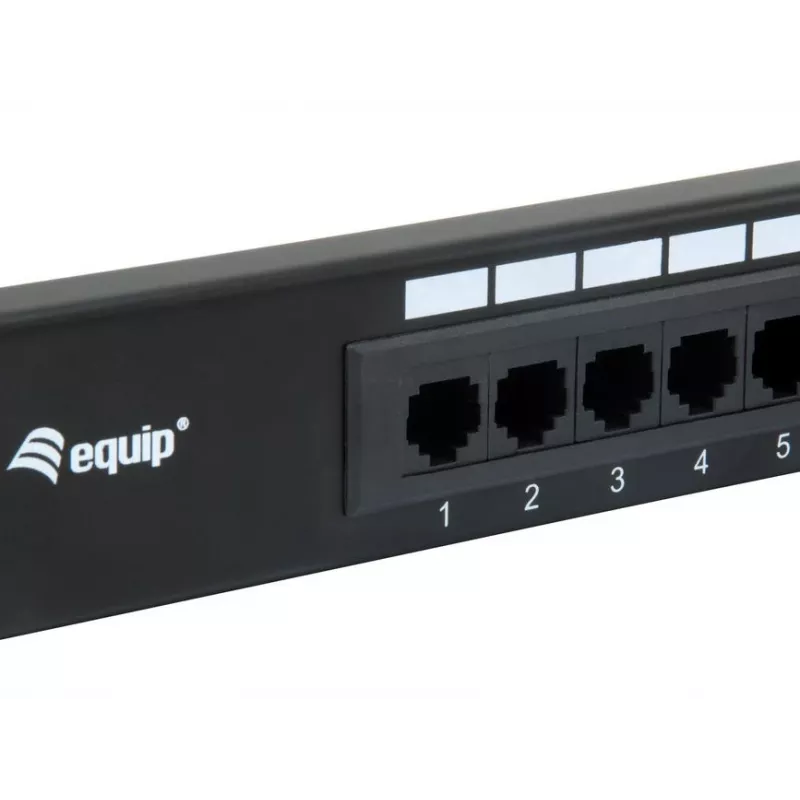

The equip® Patch Panel is a 19" 1U network distribution unit designed for organized cabling and reliable Ethernet connectivity. It provides 16 RJ45 ports compatible with Cat.5e cabling and supports 10/100/1000Base-T(X) Ethernet with a maximum data rate of 1000 Mbit/s. Constructed from durable steel and finished in black, the panel fits standard 19" racks and features numbered ports for easy identification.

Advantages

The 16-port Cat.5e patch panel offers centralized management of horizontal cabling and integrated cable management for improved routing and strain relief. It is compatible with both LSA and 110 termination standards and is recommended for use with equip® patch cords and cabling accessories to maintain consistent performance. Rack-mount 1U design and sturdy steel construction ensure mechanical stability in server cabinets and network racks.

Suitable for

• Structured cabling in offices and data closets
• 10/100/1000Base-T Ethernet networks
• Patch panels in 19" racks and network cabinets

Key specifications

• Brand: EQUIP
• Model/MPN: 235317
• EAN: 4015867209394
• Ports: 16 × RJ45
• Category: Cat.5e (Unshielded)
• Supported speeds: up to 1000 Mbit/s (Gigabit Ethernet)
• Dimensions (W×H×D): 482.6 × 44.5 × 32.5 mm
• Material: Steel
• Colour: Black
• Weight: 0.448 kg

How to use

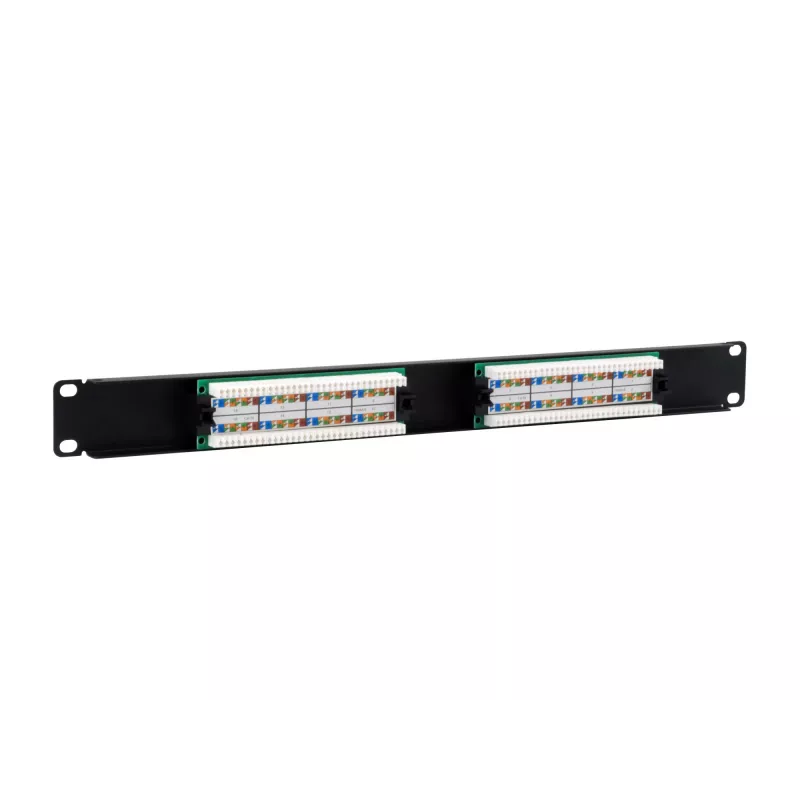

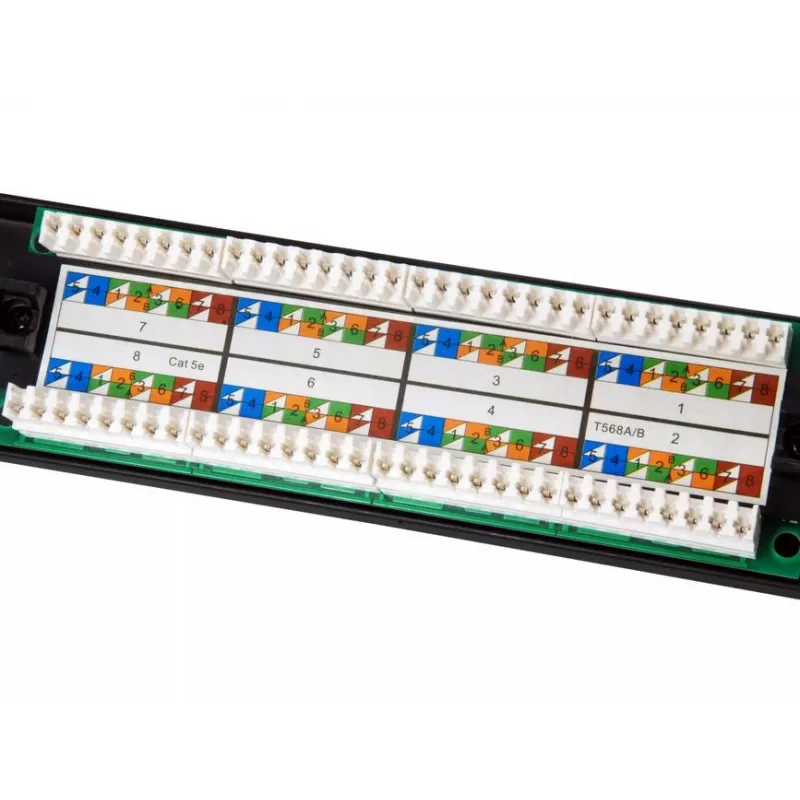

Mount the patch panel into a standard 19" rack using the front 1U mounting holes. Terminate horizontal cables to the rear according to either LSA or 110 termination scheme, matching pairs to the printed port numbers. Connect network devices using RJ45 patch cords to the front ports; for best results, use equip® patch cords and accessories. Verify connections and label both ends of critical links for easier maintenance.

Recommendations

Install in a properly ventilated rack environment, avoid exceeding manufacturer-recommended bend radii for cables, and perform testing after installation to confirm Cat.5e performance and gigabit link integrity.
