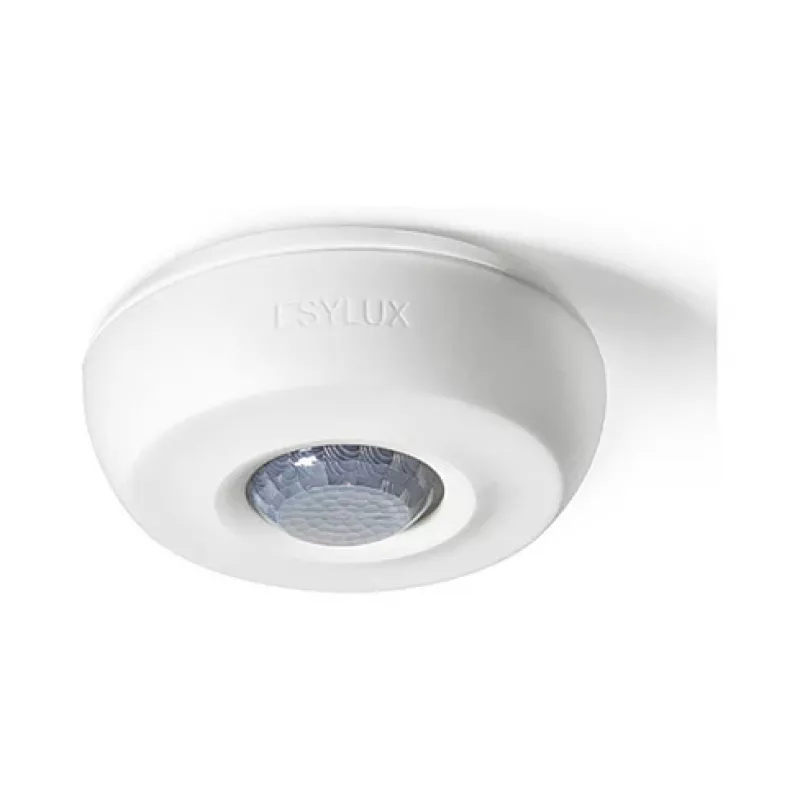

ESYLUX PD 360i/8 Basic rilevatore di movimento a infrarossi passivo (PIR) - con filo - 8 m - soffitto - interno - bianco

The ESYLUX PD 360i/8 Basic is a high-quality passive infrared (PIR) sensor designed for automatic lighting control in indoor environments. With a 360° detection angle and an 8-meter diameter range, it reliably detects movement in rooms such as offices, corridors, and stairwells. The sensor is wired and flush-mounted on the ceiling, offering a discreet and professional appearance. Its white housing (RAL 9010) blends seamlessly with standard ceiling designs.

Advantages

Energy-efficient lighting control with adjustable time delay (10 s to 60 min) and light threshold (10 to 2000 lux). The sensor switches lighting on only when needed and when ambient light is insufficient, reducing electricity costs. Easy installation and configuration via potentiometers. Suitable for resistive loads up to 2300 W and inductive loads up to 1150 VA.

Suitable for

• Office spaces
• Corridors and hallways
• Stairwells
• Meeting rooms
• Storage rooms
• Any indoor area requiring automatic lighting control

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m
• Optimal mounting height: 2.5 m
• Mounting type: Ceiling (flush-mounted)
• Application area: Indoor
• Colour: White (RAL 9010)
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W / 10 A
• Max. switching capacity (inductive): 1150 VA / 5 A (cos φ = 0.5)
• Time setting range: 10 s - 60 min
• Light value setting range: 10 - 2000 Lux
• Protection class: IP20
• Operating temperature: -20 °C to +50 °C
• Power consumption: approx. 0.5 W
• Number of channels: 1 (Lighting)
• Connectivity technology: Wired
• Material: UV-stabilised polycarbonate
• Halogen-free: Yes

Recommendations

For optimal performance, mount the sensor at a height of 2.5 m and ensure the detection area is free from obstructions. The sensor is designed for indoor use only and should not be exposed to moisture or extreme temperatures. Pair with compatible lighting fixtures for best results.
