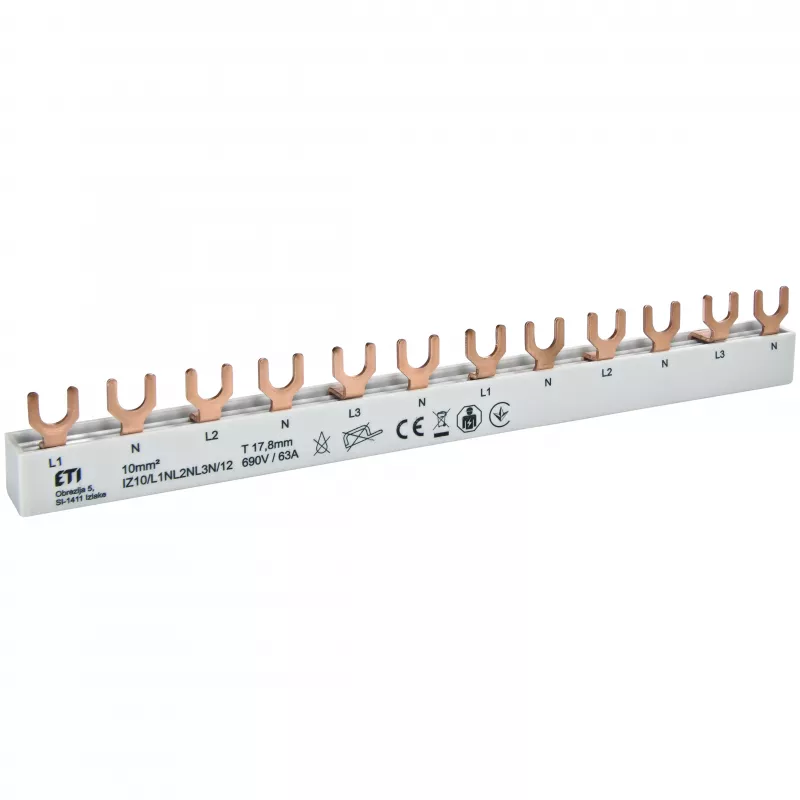

ETI 002921268 Barra collettrice in rame IZ10/L1NL2NL3N/12 per ETIMAT 1P+N, 690V, 63A, tipo a forcella

Copper busbar for ETIMAT 1P+N miniature circuit breakers, delivering 63 A current distribution at 690 V AC. Its fork-type connection and insulated design enable fast, secure installation on DIN rail.

Advantages

The IZ10/L1NL2NL3N/12 busbar simplifies wiring for three-phase plus neutral configurations. The repeating L1-N-L2-N-L3-N pole arrangement supports up to six 1P+N devices, reducing assembly time and connection errors. Copper material ensures reliable conductivity, while the insulated body protects against accidental contact.

Suitable for

• ETIMAT 1P+N miniature circuit breakers
• Three-phase distribution boards with neutral
• DIN rail installations requiring compact busbar feed

Key specifications

• Product type: Busbar
• Material: Copper
• Connection type: Fork type
• Rated operational voltage: 690 V AC
• Rated operational current: 63 A
• Number of poles: 12
• Number of modules supported: 6 (1P+N)
• Phase configuration: 3-phase + neutral
• Pole arrangement: L1-N-L2-N-L3-N (repeated)
• Insulated: Yes
• Mounting: DIN rail compatible

Recommendations

For electricians and panel builders seeking a reliable busbar for ETIMAT 1P+N breakers, this copper fork-type bar ensures efficient power distribution in three-phase installations.
