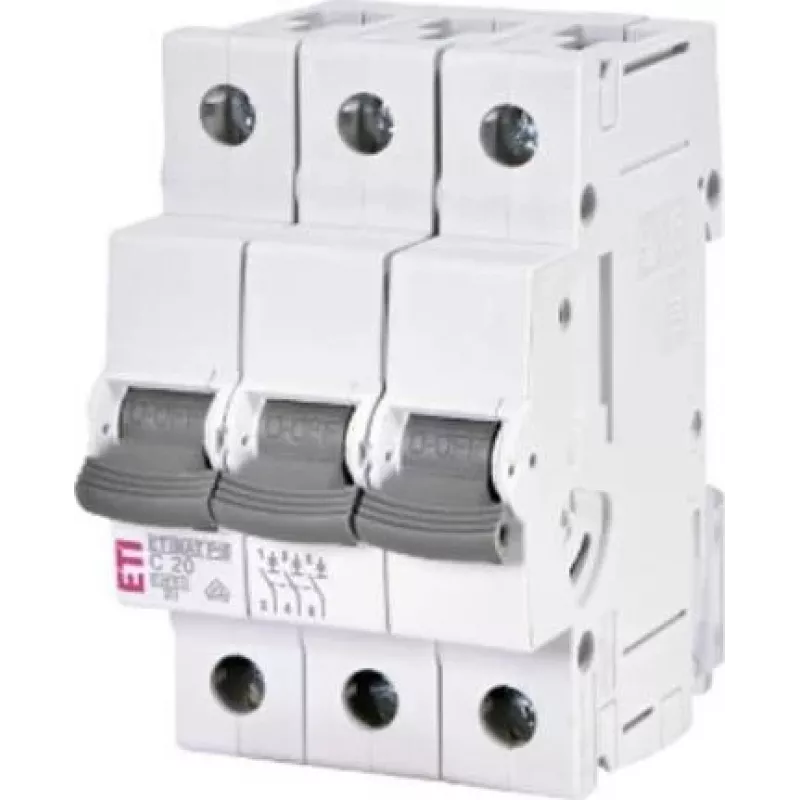

ETI ETIMAT P10 interruttore automatico magnetotermico 3 poli C20 20A 10kA 400V AC

The ETIMAT P10 3-pole miniature circuit breaker provides reliable protection for three-phase circuits with a rated current of 20 A and a short-circuit breaking capacity of 10 kA. Its C-curve tripping characteristic is suited for general applications with moderate inrush currents, such as lighting and socket circuits.

Highlights

• 3-pole design for three-phase systems
• 20 A rated current with C tripping characteristic
• 10 kA breaking capacity for robust short-circuit protection
• DIN rail mounting for easy installation
• Wide terminal capacity: 1–25 mm²

Full specifications

• Series: ETIMAT P10
• Number of poles: 3
• Rated current: 20 A
• Tripping characteristic: C
• Rated short-circuit breaking capacity (Icn): 10 kA
• Rated voltage: 400 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Protection degree: IP20
• Energy limiting class: 3
• Standards: IEC/EN 60898-1
• Terminal capacity: 1–25 mm² (solid/stranded)
• Operating temperature range: -25 to +55 °C
• Mechanical endurance: 20,000 cycles
• Electrical endurance: 10,000 cycles
• Pollution degree: 2
• Overvoltage category: III
• Rated impulse withstand voltage (Uimp): 6 kV
• Connection type: Screw terminals

Final note

A dependable choice for protecting three-phase circuits in residential and commercial installations.
