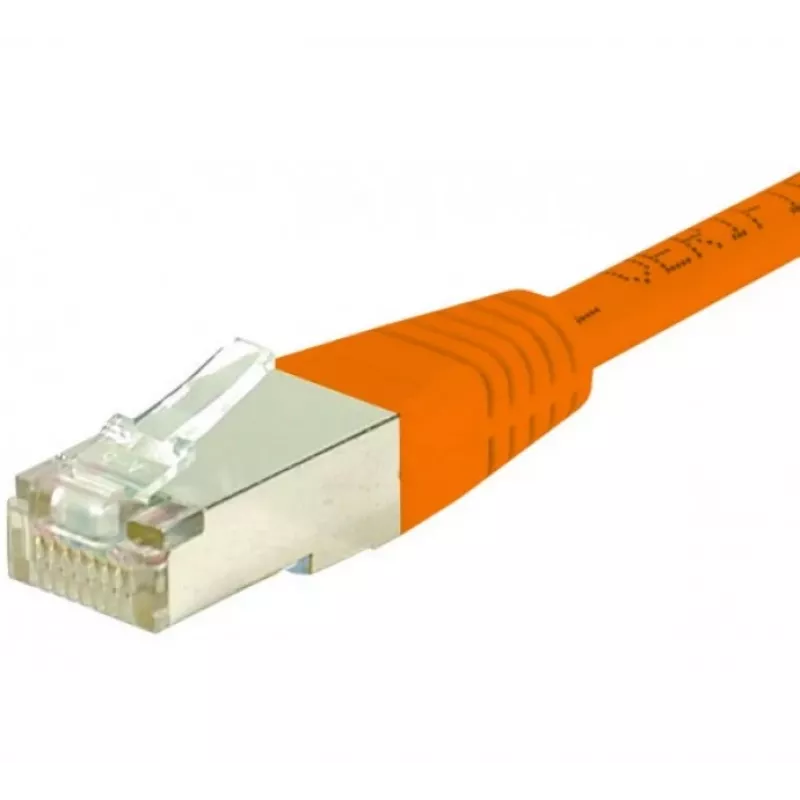

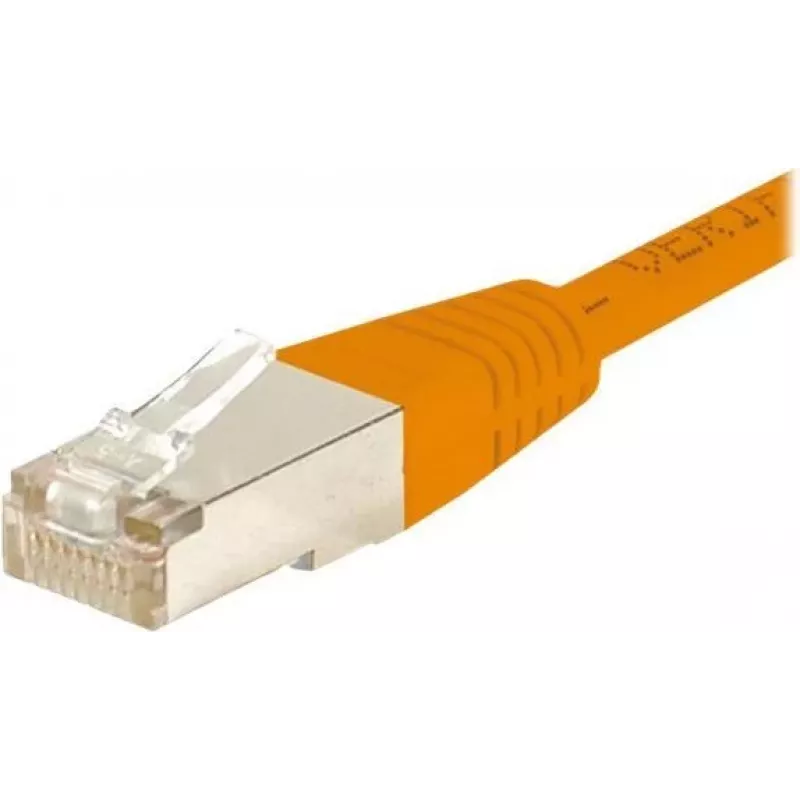

EXERTIS CONNECT Cavo patch CAT.6 S/FTP PiMF, RJ45, 2 m, arancione 854469

CAT.6 S/FTP PiMF patch cable with RJ45 connectors, 2 m length, orange. Delivers reliable 1 Gigabit Ethernet connectivity with full shielding against electromagnetic interference.

Advantages

Pairs in metal foil (PiMF) and overall braided shield (S/FTP) provide superior crosstalk and noise immunity. Slim snagless boots protect the locking tab during installation in high-density patch panels. Gold-plated contacts (50 µm) ensure consistent signal integrity over repeated mating cycles.

Suitable for

• Gigabit Ethernet networks (1000BASE-T)
• Data centers and server rooms
• Structured cabling in office environments
• Applications requiring high EMI resistance

Key specifications

• Cable type: Patch Cable
• Category: CAT.6
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Individual pair shielding: PiMF (Pairs in Metal Foil)
• Length: 2.0 m
• Colour: Orange
• Connector type: RJ45 Male to RJ45 Male
• Connector plating: Gold-plated (50 µm)
• Snagless boot: Yes (slim design)
• Conductor material: Copper (OFC)
• Conductor gauge: AWG 27/7 (stranded)
• Jacket material: PVC
• Wiring standard: TIA/EIA 568B
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1 Gbps

Recommendations

For best performance, pair with CAT.6 shielded patch panels and keystone jacks. Avoid sharp bends; maintain minimum bend radius of 4 times the cable diameter.
