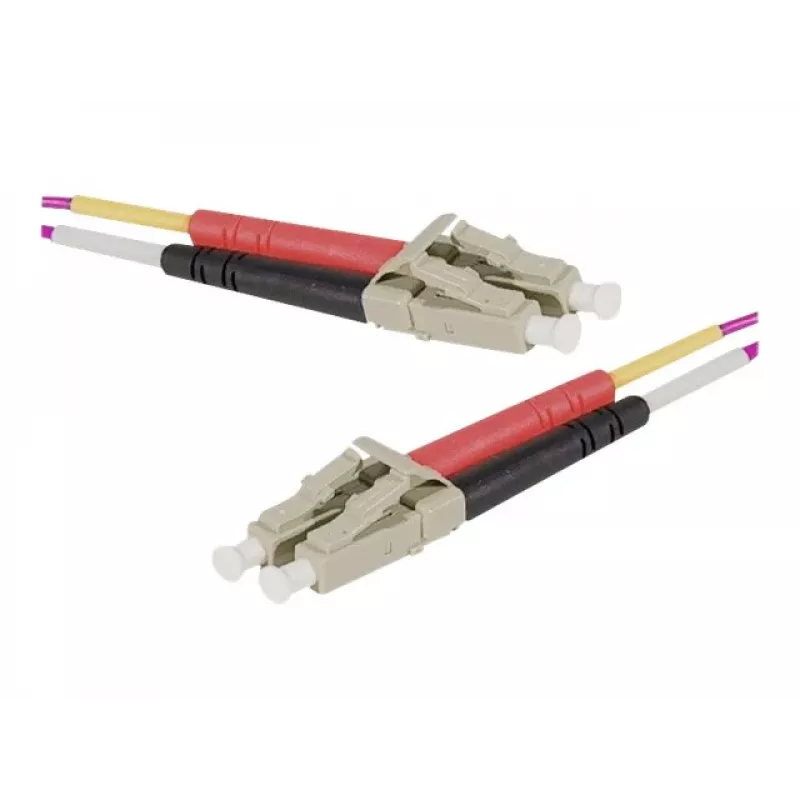

Exertis Connect OM4 cavo patch in fibra ottica LC Duplex su LC Duplex UPC, viola erica, 7m 392785

High-density fibre patching in data centres demands cables that maintain signal integrity under tight bend conditions and dense port layouts. The Exertis Connect OM4 fibre patch cable addresses this with a 50/125 µm multimode core, LC Duplex connectors with UPC polishing, and a 7-metre reach in an erika-violet jacket for easy identification.

Who is it for

Network administrators and data centre technicians who need a dependable OM4 multimode link for 10G, 40G, or 100G Ethernet over short to medium distances. The LC Duplex connectors suit high-density patch panels and switch ports, while the violet jacket aligns with OM4 colour coding conventions.

Main features

• OM4 multimode fibre, 50/125 µm core/cladding, supports 10GbE, 40GbE, and 100GbE
• LC Duplex to LC Duplex connectors with UPC polish for low insertion loss
• 7-metre length, erika-violet jacket for quick identification
• High-density cable design for space-constrained installations

Specifications

• Fibre type: OM4 multimode
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Connector 1: LC Duplex
• Connector 2: LC Duplex
• Connector polish: UPC
• Cable length: 7 m
• Jacket colour: Erika-violet
• Number of fibres: 2
• Maximum attenuation @ 850 nm: 3.0 dB/km
• Maximum attenuation @ 1300 nm: 1.0 dB/km
• Minimum bandwidth @ 850 nm: 3500 MHz·km
• Minimum bandwidth @ 1300 nm: 500 MHz·km

Tips

For best performance, avoid exceeding the cable's minimum bend radius and keep connectors clean with appropriate fibre cleaning tools. The violet jacket helps distinguish OM4 from other multimode grades in mixed environments.
