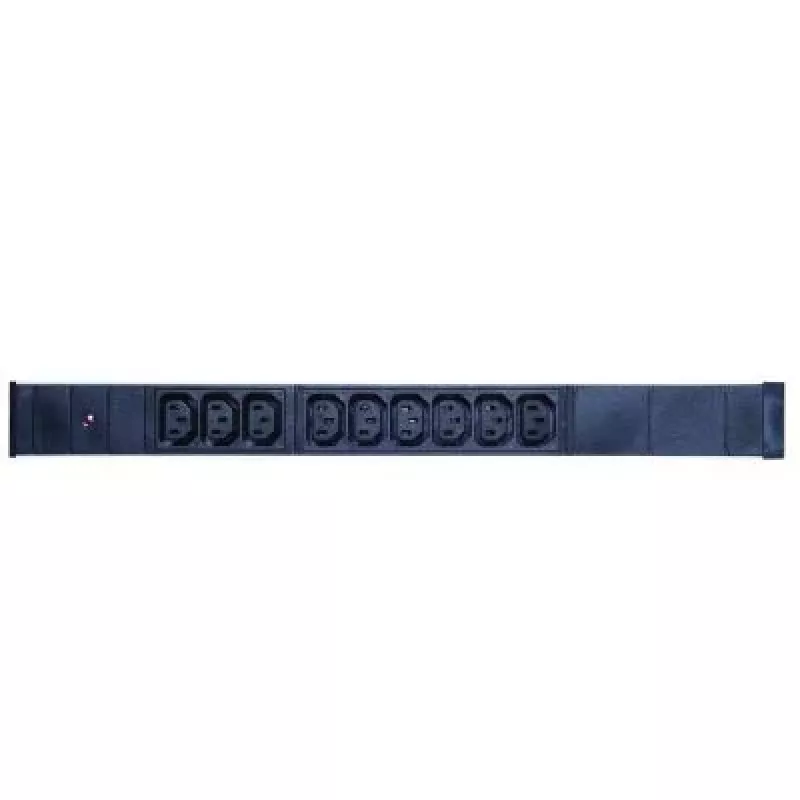

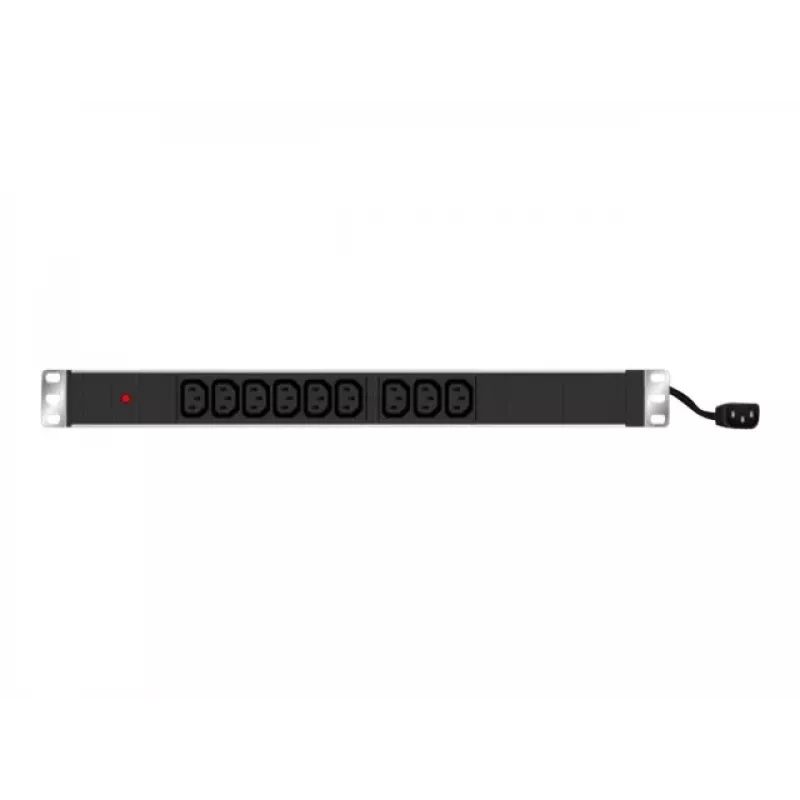

EXERTIS CONNECT PDU 19" 1U 9 porte IEC C13, case in alluminio, cavo 2,5 m, nero 808901

Managing power distribution in a 19-inch rack can be a challenge when space is limited and budgets are tight. This 1U PDU solves that problem by providing nine IEC C13 outlets in a rugged aluminum housing, all at a cost-effective price point.

Who is it for

IT administrators and integrators who need reliable, basic power distribution for rack-mounted equipment without extra features like metering or switching. Ideal for server rooms, network cabinets, and AV racks.

Main features

• 9 IEC C13 outlets for connecting servers, switches, and other devices
• 19-inch rackmount form factor, occupies only 1U of space
• Durable aluminum housing with black RAL 9005 finish

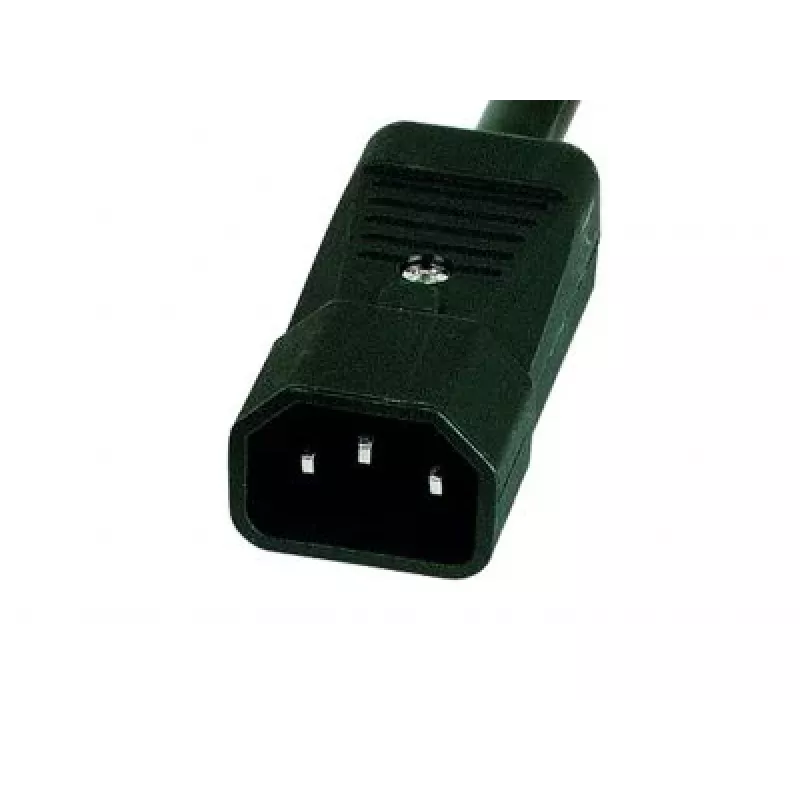

• 2.5 m input cable with 3 x 1.5 mm² conductors and IEC C14 plug
• Maximum load capacity: 10 A at 250 V AC (2500 W)
• Power LED indicator for status at a glance

Specifications

• PDU Type: Basic
• Rack Units: 1U
• Outlet Type: IEC C13
• Outlet Count: 9
• Input Plug: IEC C14
• Input Cable Length: 2.5 m
• Input Cable Cross-section: 3 x 1.5 mm²
• Housing Material: Aluminum
• Color: Black (RAL 9005)
• Maximum Current: 10 A
• Maximum Voltage: 250 V AC
• Maximum Power: 2500 W
• Operating Temperature: 0 - 45 °C
• Operating Humidity: 10 - 90% RH (non-condensing)

Tips

Ensure the total current draw of connected devices does not exceed 10 A. For high-density installations, consider using multiple PDUs on separate circuits to balance the load.
