Gira 537667 S3000 modulo rilevatore di movimento 2,20 m Comfort Bluetooth TX_44 antracite

With a 180° detection angle and a forward range of approximately 12 m, this motion detector attachment covers large areas reliably. It is designed for the Gira System 3000 and features Bluetooth for configuration via the Gira System 3000 app.

Overview

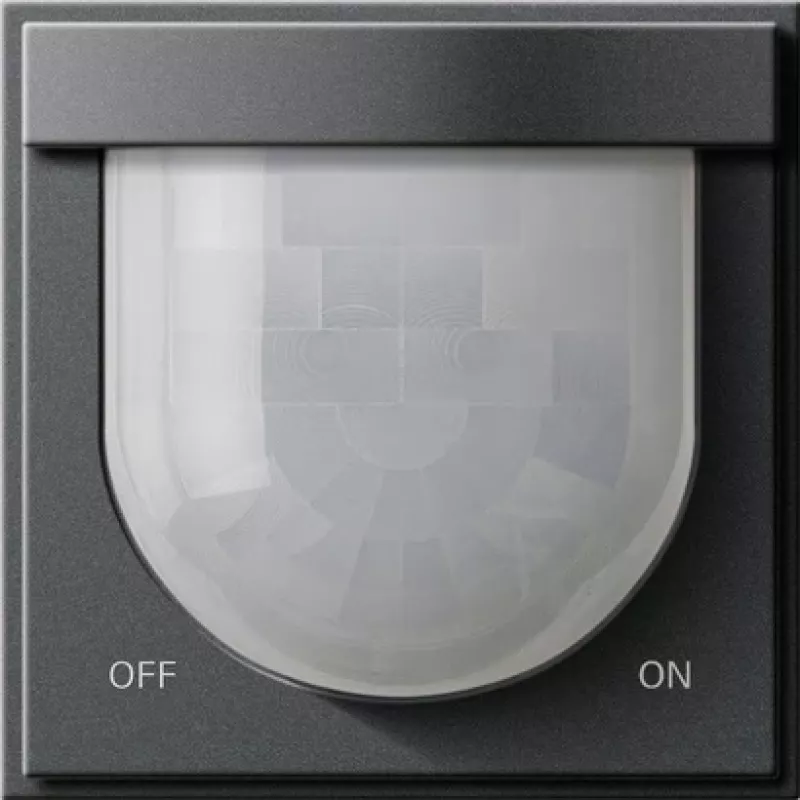

The Gira 537667 is a motion detector attachment in the TX_44 design line, finished in anthracite. It is intended for installation at a height of 2.20 m and supports comfort functions such as presence detection and staircase operation.

What stands out

• Wide 180° detection with 12 m forward and 8 m side range
• Bluetooth connectivity for app-based setup
• Adjustable brightness threshold (1–1000 lux) and time delay (10 s–30 min)
• High switching capacity: 2300 W incandescent, 400 W LED
• IP44 rating when installed with TX_44 frame

Technical details

• Operating voltage: 230 V AC, 50/60 Hz
• Standby power consumption: 0.5 W
• Sensor type: Passive Infrared (PIR)
• Housing material: UV-stabilised thermoplastic (PC)
• Mounting type: Wall-mounted (with TX_44 frame)

Our verdict

A versatile and precise motion detector for Gira System 3000 installations, offering app-based comfort and robust switching performance.
