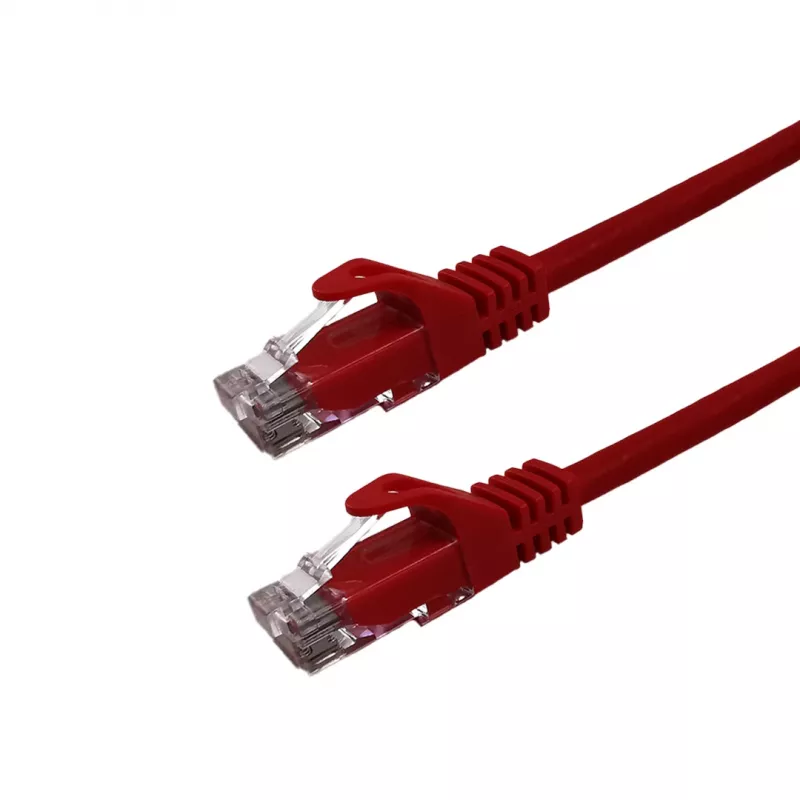

Grafenthal Cavo patch CAT6A S/FTP CU LSZH 0,25m rosso

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 0.25m Red is a high-performance Ethernet cable designed for reliable, high-speed data transmission in demanding network environments. Constructed with pure copper conductors and S/FTP shielding, this cable delivers exceptional signal integrity and protection against electromagnetic interference. The LSZH jacket ensures safety in enclosed spaces, making it ideal for data centers, offices, and industrial applications.

Advantages

This patch cable offers superior performance with support for 10 Gigabit Ethernet and bandwidth up to 500 MHz. The S/FTP shielding provides excellent noise rejection, while the gold-plated connectors ensure corrosion-free, reliable connections. The 0.25-meter length is perfect for short patch panel to switch connections, reducing cable clutter and improving airflow.

Suitable for

• Data centers requiring high-density cabling
• Enterprise networks needing reliable 10GBASE-T connections
• Office environments where space is limited
• Applications demanding low smoke zero halogen safety

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: CAT6A (Class EA)
• Shielding Type: S/FTP (Screened Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 0.25 meters
• Cable Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA-568B
• Number of Conductors: 8 (4 Twisted Pairs)
• Connector Plating: Gold-plated (50µm)
• Application: Local Area Network (LAN), Data Centers, Office
• Fire Safety Standard: IEC 60332-1, IEC 61034-2, IEC 60754-2 Compliant
• Environmental Compliance: RoHS Compliant
• Impedance: 100 Ohm

Recommendations

For optimal performance, pair this cable with CAT6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
