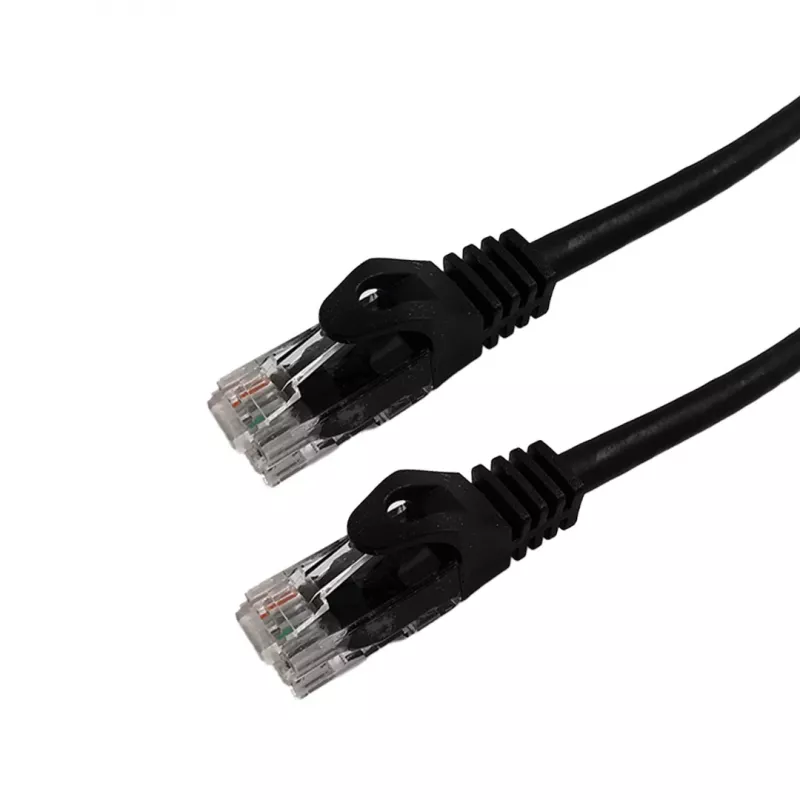

Grafenthal Cavo patch CAT6A U/UTP CU LSZH 10,00m nero

The Grafenthal Patch Cable CAT6A U/UTP CU LSZH 10.00m Black is a high-performance network cable designed for reliable 10 Gigabit Ethernet connectivity. Manufactured with pure copper conductors and a low smoke zero halogen (LSZH) jacket, this cable ensures excellent signal integrity and safety in commercial and residential environments.

Advantages

This CAT6A patch cable supports data transfer rates up to 10 Gbps and a bandwidth of 500 MHz, making it ideal for demanding network applications. The U/UTP (unshielded twisted pair) design reduces crosstalk and interference, while the LSZH jacket minimizes toxic smoke and fumes in case of fire, enhancing safety in enclosed spaces.

Suitable for

• Connecting computers, switches, routers, and other network devices in data centers, offices, and home networks
• 10GBASE-T Ethernet networks requiring high-speed data transmission
• Installations where fire safety and low smoke emission are critical (e.g., plenum areas, public buildings)

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6A (Category 6a)
• Shielding Type: U/UTP (Unshielded/Unshielded Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 10.00 meters
• Color: Black
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG
• Cable Structure: Stranded
• Number of Pairs: 4 Twisted Pairs
• Impedance: 100 Ohm
• Fire Safety Standard: LSZH (IEC 60332-1, IEC 61034-2, IEC 60754-2)
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends that could degrade signal quality.
