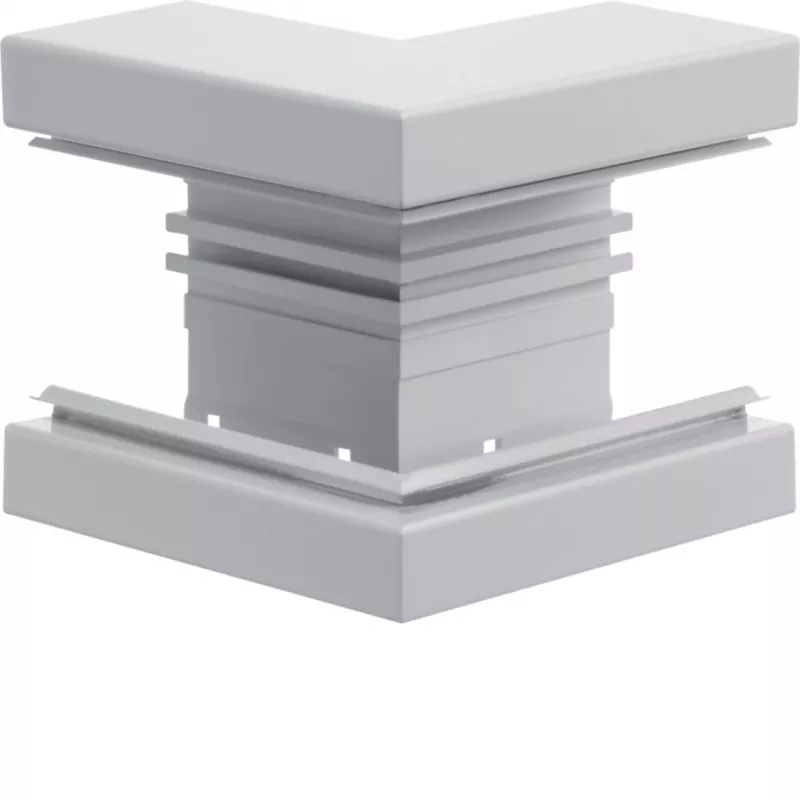

Hager BRA6513039016 profilo base angolo esterno 68x130mm OT80mm bianco traffico alluminio

Routing cable trunking around an external corner often forces installers to choose between a neat bend and a stable, protected cable path. The Hager BRA6513039016 external corner base profile solves this by providing a pre-formed aluminium corner piece that matches the Tehalit.BR 68x130 trunking system, so the trunking turns the corner without deforming the side walls or stressing the cables inside.

Who is it for

Electricians and panel builders who install Hager Tehalit.BR 65x130 trunking in offices, workshops and commercial buildings. It is for jobs where the trunking must change direction around an outside corner and the installer wants a factory-made corner instead of cutting and bending a straight length.

Main features

• External corner base profile for Hager Tehalit.BR trunking system
• Compatible with trunking height 68 mm and base width 130 mm
• Fits cover width OT 80 mm
• Aluminium body with painted traffic white finish (RAL 9016)
• Corrosion resistant, suitable for indoor use
• System-specific mounting, no special tools required

Specifications

• Product type: External corner base profile
• Material: Aluminium
• Colour: Traffic white (RAL 9016)
• Surface treatment: Painted
• Compatible trunking system: Hager Tehalit.BR
• Trunking system height compatibility: 68 mm
• Trunking system base width compatibility: 130 mm
• Compatible cover width (OT): 80 mm
• Application: Cable management, electrical installations
• Mounting location: External corner
• Profile component type: Base profile
• Suitable for multi-compartment trunking: Yes
• Environmental suitability: Indoor use
• Manufacturer series: Tehalit.BR 65x130

Tips

Pair this corner profile with the matching Hager Tehalit.BR covers and couplings to maintain a continuous, professional finish. For internal corners, use the corresponding internal corner base profile from the same series.
